Omcan MX-IT-0060-M Instruction Manual

Spiral dough mixer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Spiral Dough Mixer
Model MX-IT-0060-M
Item 44269
Instruction Manual
Revised - 05/02/2019
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-IT-0060-M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omcan MX-IT-0060-M

Summary of Contents for Omcan MX-IT-0060-M

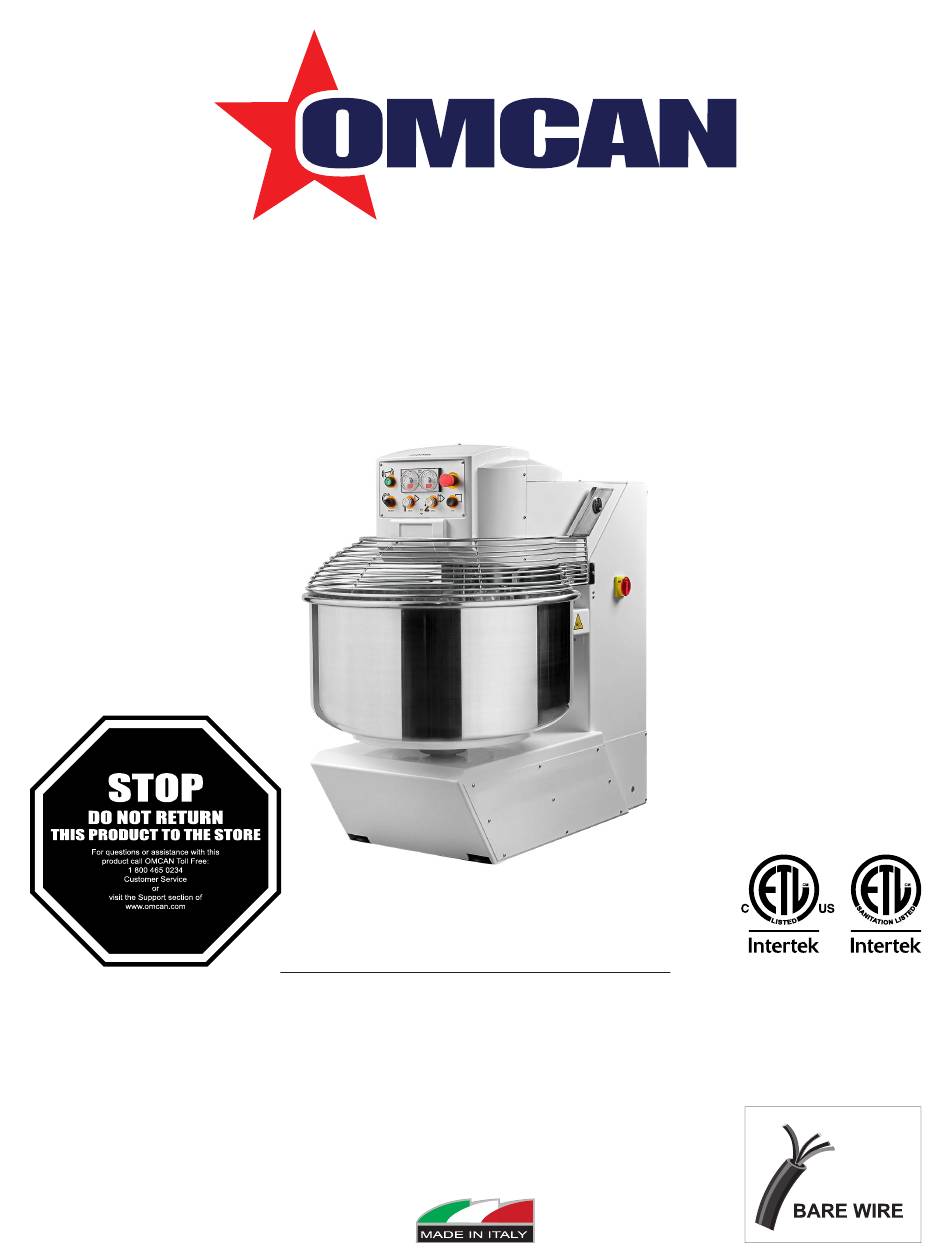

  • Page 1 Spiral Dough Mixer Model MX-IT-0060-M Item 44269 Instruction Manual Revised - 05/02/2019 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model MX-IT-0060-M Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 7 Technical Specifications -------------------------------------------------------------------------- 8 Installation -------------------------------------------------------------------------------------- 8 - 10 Operation ------------------------------------------------------------------------------------- 11 - 14 Maintenance --------------------------------------------------------------------------------- 14 - 21 Troubleshooting...

  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5 Omcan will not accept any liability for damages/injuries to persons, animals, and other assets not loss of production capacity that may directly or indirectly result from any of the following situations: •...
  • Page 6 Attachment/combination of the machine with other elements and/or equipment that are not part of the mixer delivery scope, or not designed or approved by Omcan for use with the mixer; PLEASE NOTE: in any of these cases, the EC marking of the machine will be voided and no longer valid.
  • Page 7 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers part failures, not improper use.

  • Page 8: Technical Specifications

    Technical Specifications Model MX-IT-0060-M Capacity 132.2 lbs. / 60 kgs. Spiral Motor 1 - 4 kW Spiral Speed 1st speed: 104 RPM | 2nd speed: 208 RPM Bowl Motor 0.37 kW Bowl Speed 21 RPM Flour Capacity (min - max) 17.6 lbs.

  • Page 9: Installation

    Installation of suitable capacity. For weight information please see Technical Specifications; Weight data are also stated on the mixer identification plate; Slip the lifting fork into the special grooves at the base of the pallet/ crate/cage until they protrude by at least 200mm on the opposite side.
  • Page 10 Installation Simply be careful to handle it with very gentle movements until it stands firmly on all wheels. Place the machine in a safe and secure place, away from any risk of impacts and damages. The mixer standing on the floor with its wheels can be moved around by simply pushing it;...

  • Page 11: Operation

    If so required in the contract, Omcan can provide the training (including practice) and the necessary instructions (by the way, the same as in this manual) for the safe and proper use of the machine.
  • Page 12 Operation and assets directly or indirectly resulting from the release of dust particle in the air and surrounding environment ( for example, before adding the flour, you should check that nobody is near the machine and that bystanders at least wear a respiratory protection mask with adequate filtering capacity in relation to the particle size of the flour (indicated in the data sheet, if available, or measured by the employer for the purposes of the aforementioned risk assessment).
  • Page 13 Operation to collect with the hand, if not in small portions; the barycentre of the mass varies continuously and causes, a continuous change in the equilibrium and effort that the operator has to maintain. If you consider that the operator must bend the torso to remove the portions, which can increase the risk of muscle and bone pain with increasing masses drawn and moved by hand.

  • Page 14: Maintenance

    Operation that was in place at the time of stopping. If in the middle of a cycle you press the emergency button (Pos.8), the machine will stop and the timer will return to its initial values. 6. During the mix cycle is possible to reverse the direction of rotation of the bowl with the selector Pos.6; this can be useful, for example, to “mix in”...
  • Page 15 This manual contains the instructions of the manufacturer of the belts installed by Omcan on the new mixer. However, the mixer can be equipped with any other belts from different manufacturers, provided they are equivalent or superior in terms of features, performance and durability; In this case, the supplier and/or installer will have to provide detailed instructions on how to properly adjust their tension.
  • Page 16 Maintenance parts (Pos.1 and 3) in their original position and secure them with their original hardware. ADJUSTMENT OF THE TENSION OF THE SPIRAL DRIVE BELTS Look at Figure 13 to adjust the tension of the belts in Pos.1: • Release the four screws in Pos.2, so that the plate Pos.3 can slide. •...
  • Page 17 Maintenance DRIVE BELTS TO THE BOWL To carry out the operations described in this paragraph and in the relevant sub-paragraphs, always wear at least safety gloves, safety shoes with reinforced toe and a helmet. Look at Figure 16, to access the belts simply remove the guard in Pos.1 secured with six screws Pos.2 on each side of the stand.
  • Page 18 Look at Figure 19, each of the two bowl roller sets comprises an idle roller Pos.1 and a mount Pos.2; their function is to counteract the force of the spiral whose force would otherwise deform the bowl. Replace the roller Pos.1, provided by Omcan with the bearings (Pos.3) every time when excessively worn or unserviceable: •...
  • Page 19 Maintenance REPLACING AND ADJUSTING THE MICROSWITCH ASSOCIATED TO THE BOWL COVER Look at Figure 20, the safety micro Pos.1 of the cover Pos.2 is mounted to the bracket Pos.3 with two screws Pos.4 (they are not shown in the picture but are described here below). If you ever come to replace this micro switch, all you need to do is disconnect the wires and remove the screws Pos.4.
  • Page 20 Maintenance close to the body as much as possible while the bust leans forward, rather bend your knees and keep your upper body upright as much as possible; this is in order to minimize the risk bone/muscle pains; comply with the instructions given by the employer during education and training on safety and health in the workplace.

  • Page 21: Troubleshooting

    REFERENCE Item Number Model Number Description Manufacturer Model Number Mixer Spiral Dough 132 lbs. / 60 kgs. 44269 MX-IT-0060-M 2 - 4 HP / 1.5 - 3 KW 208V/60/3 MOMA 60 cETLus / ETL Sanitation...

  • Page 22: Parts Breakdown

    Parts Breakdown Model MX-IT-0060-M 44269...
  • Page 23 Parts Breakdown Model MX-IT-0060-M 44269 Item No. Description Position Item No. Description Position Item No. Description Position 69242 Spiral Hook for MOMA 60 69261 Front Turning Wheels for MOMA 60 69280 Main Power Switch for MOMA 60 69243 Bowl for MOMA 60...

  • Page 24: Electrical Schematics

    Electrical Schematics Model MX-IT-0060-M 44269...

  • Page 25: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 26: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 27: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 28 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
