idi Aspect ISR G3 Operator's Manual

Mobile image tables
Hide thumbs Also See for Aspect ISR G3:
Table of Contents

Advertisement

Quick Links

idi
Image Diagnostics, Inc.
Manufacturers of Quality Medical Products

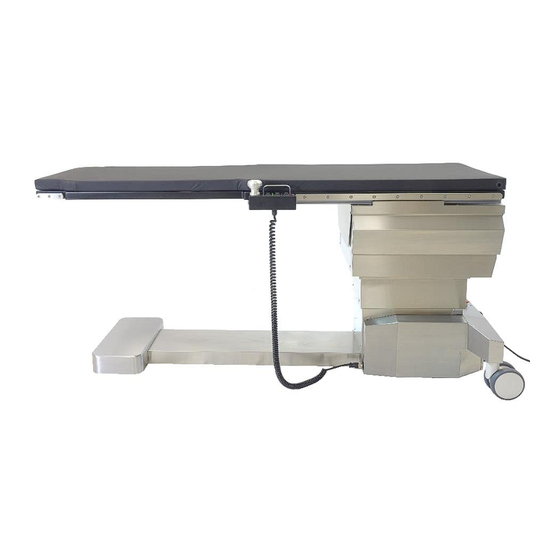

Aspect
100-4T G3 and ISR G3
Mobile Image Tables
Operator Manual
Made in the USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aspect ISR G3 and is the answer not in the manual?

Questions and answers

Related Manuals for idi Aspect ISR G3

Summary of Contents for idi Aspect ISR G3

  • Page 1 Image Diagnostics, Inc. Manufacturers of Quality Medical Products Aspect 100-4T G3 and ISR G3 Mobile Image Tables Operator Manual Made in the USA...
  • Page 2 For technical assistance, call IDI at (978) 829-0009 or send fax to (978) 829-0027. Be prepared to give the complete model and serial number found on the data plate on the table base at the time of contact.

  • Page 3: Table Of Contents

    Aspect 100-4T G3 and ISR G3 Operator Manual Table of Contents SYMBOL IDENTIFICATION ..................... 1 INTENED USE & ESSENTIAL PERFORMANCE ............3 SAFETY INSTRUCTIONS ....................3 SAFETY HAZARDS ......................4 EMC (Electromagnetic Compatibility) STATEMEMT ............ 6 EMERGENCY STOP PUSHBUTTON ................7 SETUP INSTRUCTIONS &...
  • Page 4 Aspect 100-4T G3 and ISR G3 Operator Manual 12. MAINTENANCE, SERVICE & REPAIR ................ 22 12.1. RECOMMENDED PERIODIC PERFORMANCE CHECKS ......22 12.2. SERVICE & REPAIR STATEMENT ..............22 13. TROUBLESHOOTING ...................... 23 14. DISPOSAL OF COMPONENTS ..................26 15. PRODUCT DATA ....................... 27 16.

  • Page 5: Symbol Identification

    Aspect 100-4T G3 and ISR G3 Operator Manual SYMBOL IDENTIFICATION Attention! Consult accompanying documents. Failure to follow these instructions could cause serious personal injury or damage to equipment. CD ROMs containing digital files of relevant drawings, BOMs, and documentation are included with the service manual for reference.
  • Page 6 Aspect 100-4T G3 and ISR G3 Operator Manual Protective Ground. This is the common tie point between the AC Electrical Power Cord Ground, Frame Ground, and Controller Ground. Patients must be loaded from the side of table. There is possible tilting or instability if patient is loaded onto the pedestal end of table or the imaging end of the table.

  • Page 7: Intened Use & Essential Performance

    Operator Manual INTENDED USE & ESSENTIAL PERFORMANCE The Aspect ISR G3 & Aspect 100-4T G3 are mobile imaging tables used by the medical industry for vascular surgery, endovascular procedures and interventional radiology. They are designed to be used in a professional healthcare environment in conjunction with “C-arm”...

  • Page 8: Safety Hazards

    Aspect 100-4T G3 and ISR G3 Operator Manual SAFETY HAZARDS Safety Hazard Level Potential Consequences with Use Indicates an imminently hazardous situation which, if not DANGER avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
  • Page 9 Aspect 100-4T G3 and ISR G3 Operator Manual WARNING! Safely position and secure patient onto table. Do not exceed table weight capacity of 600 pounds (272kg). WARNING! Use of table extensions is only allowed with decreased table load. Table weight capacity reduced to 500 pounds (227kg) when using table extension.

  • Page 10: Emc (Electromagnetic Compatibility) Statememt

    30 cm (12 inches) to any part of the Aspect 100-4T G3 or Aspect ISR G3, including cables connected to the table. Otherwise, degradation of the performance of this equipment could result.

  • Page 11: Emergency Stop Pushbutton

    Aspect 100-4T G3 and ISR G3 Operator Manual EMERGENCY STOP PUSHBUTTON PEDESTAL END OF TABLETOP IMAGING END OF TABLETOP EMERGENCY STOP PUSHBUTTON ➢ The red Emergency Stop Pushbutton is located in the center of the base cover on the back of the table. ➢...

  • Page 12: Preparation For Patient Use

    • The Aspect 100-4T G3 and Aspect ISR G3 table top braking systems utilize a passive magnetic brake; it remains engaged/energized in the event of a complete loss of electrical power. Power is necessary to release the brakes.

  • Page 13: Preparation For Performing Cpr

    Aspect 100-4T G3 and ISR G3 Operator Manual • Patients must be loaded from the side of table. There is a possibility of tilting, instability and/or tipping if patient is loaded onto the pedestal end of Table or the imaging end of the Table. •...
  • Page 14 Aspect 100-4T G3 and ISR G3 Operator Manual The Table is in “STEER” mode when the Caster Lock Pedal is pushed down on the left side to its lowest position. The Rear Casters will lock into a forward/backwards direction for ease of maneuvering when moving the Table.

  • Page 15: Power Indicator Light

    8.3. TABLE MOTION CONTROLS All Aspect ISR G3 & Aspect 100-4T G3 tables are equipped with tabletop motion control boxes that allow users to move the tabletop in many different directions. Continually pressing down on the Rocker Switch to the right of this symbol will raise the Table Top vertically.
  • Page 16 Aspect 100-4T G3 and ISR G3 Operator Manual Continually pressing down on the Rocker Switch to the right of this symbol will tilt up the imaging end of the Table Top in a Trendelenburg direction. When the Table Top reaches a level position, motion will stop for 1 second.
  • Page 17 Aspect 100-4T G3 and ISR G3 Operator Manual Lifting the lip under the mushroom shaped Panhandle releases the brakes that stop all lateral and longitudinal motion of the Table Top. Holding the ring up with fingertips allows the Table Top to be manually repositioned. The Switch Lockout Pushbutton only disables Elevate, Trendelenburg, and ISO- Centric Roll (ISR G3 only) motions to prevent accidental activation.
  • Page 18 Aspect 100-4T G3 and ISR G3 Operator Manual • When using the Handset Control shown above, each button must be held down to get continuous motion of the tabletop. Motions will stop as soon as the button is released. • When the Trendelenburg (tilt) function buttons are used, the Table Top motion will stop at level position for 1 second before motion begins again.

  • Page 19: Foot Actuated Motion Controls

    Table Top begins. ISR G3 FOOT SWITCH CONTROL Foot Switch activated control motions for the Aspect ISR G3 table are: ISO-Roll, Trendelenburg down/up and elevate/lower. (Safety hood helps avoid accidental motorized Table movement from Foot Switch Control).

  • Page 20: Standard Accessories

    Aspect 100-4T G3 and ISR G3 Operator Manual STANDARD ACCESSORIES 9.1. Patient Mattress Pad for Tabletop. The Patient Mattress Pad is held in place by hook and loop fasteners. To remove the pad, simply pull pad up gently to remove. Replacement pads are supplied with new self-adhesive fasteners installed and new adhesive backed mating pieces for the tabletop.

  • Page 21: Add-On Accessories

    Aspect 100-4T G3 and ISR G3 Operator Manual 10. ADD-ON ACCESSORIES 10.1. Clamp-on Accessory Rail Fits on left or right side of table. 6” length. (European version with 10mm x 25mm metric rail is available). 10.2. Vascular Access Arm Board (VAB) One-piece, extra wide carbon fiber arm board for vascular access procedures.

  • Page 22: Quick Release Rail Mount Arm Board (Requires Clamp-On Accessory Rail)

    Aspect 100-4T G3 and ISR G3 Operator Manual 10.3. Quick Release Rail Mount Arm Board (requires Clamp-on Accessory Rail) Radiolucent materials. Includes arm board, pad and restraint straps. (European version for 10mm x 25mm metric rail size is available) 10.4. Arm Board, Shoulder Mount Carbon fiber base.

  • Page 23: Articulating Headrest Extension

    Aspect 100-4T G3 and ISR G3 Operator Manual 10.6. Articulating Headrest Extension WARNING! Use of table extensions is only allowed with decreased table load. Table weight capacity reduced to 500 pounds (227kg) when using table extension. Carbon fiber base, extends Table Top length 12”. Mounts to imaging end of Table onto 5”...

  • Page 24: Radiation Shield

    Aspect 100-4T G3 and ISR G3 Operator Manual 10.8. Radiation Shield Articulating with removable upper panel. Panels are lead-free. Can be used on either side of table. Mounts to both the accessory rail and the tabletop by clamp. 10.9. Anesthesia Screen Holder. (May require a pair of side rail clamps) Flexible Hoop.

  • Page 25: General Cleaning

    Aspect 100-4T G3 and ISR G3 Operator Manual 11. GENERAL CLEANING After each medical procedure, the table should be properly cleaned. Do not use harsh abrasives, solvents, sprays, or corrosive agents. Some accessories may come with individual cleaning instructions. APPROVED AND TESTED DISINFECTANT CLEANERS FOR TABLE: •...

  • Page 26: Maintenance, Service & Repair

    Aspect 100-4T G3 and ISR G3 Operator Manual 12. MAINTENANCE, SERVICE & REPAIR All maintenance procedures should be done by an experienced and qualified technician with demonstrated knowledge and skills (electrical and mechanical) in the service of medical equipment. ✓ This individual must have access to this manual and the proper tools.

  • Page 27: Troubleshooting

    Aspect 100-4T G3 and ISR G3 Operator Manual 13. TROUBLESHOOTING Note: The motion of the Tabletop is fully controlled by user interface with switches, buttons and a hand actuated brake release. In the event of a loss of these motions it is expected that the Table Top will remain stationary without any unwanted movement.
  • Page 28 Aspect 100-4T G3 and ISR G3 Operator Manual Problem/Symptom Possible Cause Remedy 5. Table does not 1. No Power. 1. Check electrical outlet. elevate. 2. Battery is depleted. 2. Connect to AC Power 3. Emergency Stop 3. Reset Emergency Stop Pushbutton. Pushbutton engaged.
  • Page 29 Aspect 100-4T G3 and ISR G3 Operator Manual Problem/Symptom Possible Cause Remedy 8. No response to 1. No Power. 1. Check electrical outlet. Table Top Motion 2. Battery is depleted. 2. Connect to AC Power. Control Panhandle 3. Emergency Stop 3.

  • Page 30: Disposal Of Components

    Aspect 100-4T G3 and ISR G3 Operator Manual 14. DISPOSAL OF COMPONENTS IDI medical tables are made up of mostly steel, copper and aluminum parts which are easily recycled. It is recommended that some components be disassembled before disposal for recycling. The table below lists components typically found in IDI products but varies with model and options.

  • Page 31: Product Data

    Aspect 100-4T G3 and ISR G3 Operator Manual 15. PRODUCT DATA Tabletop Low attenuation carbon fiber tabletop and pad. Tabletop surface 61cm x 155 cm (24 in x 84 in) standard. Imaging range along table length 172.7 cm (68 in)/203.2cm (80 in) with Headrest or Peripheral Extension.

  • Page 32: Specifications

    Aspect 100-4T G3 and ISR G3 Operator Manual 16. SPECIFICATIONS Mode of Operation ▪ For continuous use with short time loading. ▪ Duty Cycle: 10% (2 min on/18 min off). Type of Equipment: ▪ Class II Type B applied part (as defined by IEC 60601-1, UL 60601-1, EN 60601-1, CAN/CSA 601.1-M90, IEC 60601-2-46:1998.
  • Page 33 Aspect 100-4T G3 and ISR G3 Operator Manual Guidance and Manufacturer’s Declaration- Emissions, All Equipment and Systems: Table 1 The Aspect 100-4T G3 and the ISR G3 are intended for use in the electromagnetic environment specified below. The customer or user of the Aspect 100-4T G3 or the ISR G3 should ensure that it is used in such an environment.
  • Page 34 Single phase: at 0° respectively is recommended that the Aspect 100-4T G3 or the Single phase: at 0° Aspect ISR G3 be powered 0 % UT; 250/300 cycle for 50 Hz and 60 Hz, 0 % UT; 250/300 from an uninterruptible...
  • Page 35 Aspect 100-4T G3 and ISR G3 Operator Manual Guidance and Manufacturer’s Declaration Emissions, Equipment and Systems that are NOT Life-Supporting Table 3 The Aspect 100-4T G3 and the ISR G3 are intended for use in the electromagnetic environment specified below. The customer or user of the Aspect 100-4T G3 or the ISR G3 should ensure that it is used in such an environment.

  • Page 36: Warranty

    Recommended Separations from the Aspect 100-4T G3 or the Aspect ISR G3 are intended for use in the electromagnetic environment in which radiated disturbances are controlled. The customer or user of the Aspect 100-4T G3 or the Aspect ISR G3 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF Communications Equipment and the Aspect 100-4T G3 or the Aspect ISR G3 as recommended below, according to the maximum output power of the Communications Equipment.
