Lutron Electronics DL-1PSL Manual

English

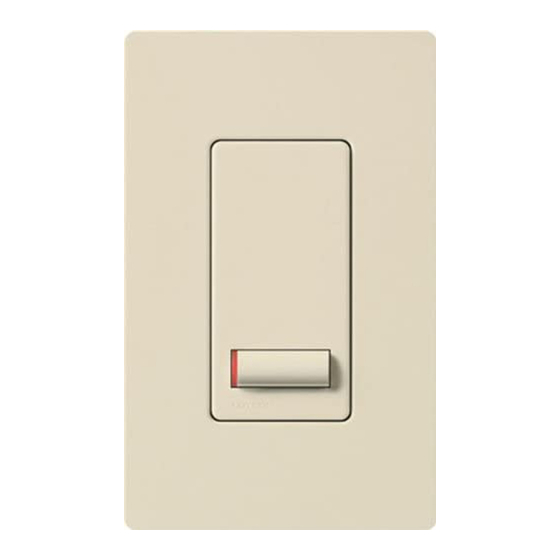

Single-Pole Switch
DL-1PSL, LX-1PSL
Rated at 120 V~ 60 Hz
1 HP motor/fan
600 W/VA lighting
1000 W/VA when used as 3-way with Lutron dimmer
Important Notes
Please read before installing.
1. CAUTION: For control of permanently installed incandescent lamp fixtures and low-voltage trans-
former loads, motor loads, or fluorescent fixtures only. To avoid overheating and possible damage to
other equipment, do not use to control receptacles or transformer-supplied appliances.
2. Install in accordance with all national and local electrical codes.
3. When no "grounding means" exist within the wallbox then the NEC
switch without a grounding connection to be installed as a replacement, as long as a plastic, non-
combustible wallplate is used. For this type of installation, cap or remove the green ground wire on
the switch and use an appropriate wallplate such as Lutron's Claro
4. For new installations, install a test switch before installing the switch.
5. Protect switch from dust and dirt when painting or spackling.
6. Clean switch with a soft damp cloth only. Do not use any chemical cleaners.
Multigang Installations
When installing more than one control in the
same wallbox, it may be necessary to remove
all inner side sections prior to wiring (see dia-
gram). If pre-installed, remove the Lutron
wallplate and wallplate adapter from switch.
Using pliers, bend side section up and down
until it breaks off. Repeat for each side section
to be removed. Note: No derating required if
ganged.
Each Control Has Inside
Switch Capacity Chart
Type of Load Single-pole or
3-way with switch(es)
Lighting 600 W/VA
Motor / Fan 1 HP
Technical Assistance
?
If you have questions concerning the installation or operation of this product, call the
Lutron Technical Support Center. Please provide exact model number when calling.
U.S.A. and Canada (24 hrs/7days)
1-800-523-9466
Other countries (8am – 8pm ET)
+1-610-282-3800
Limited Warranty
(Valid only in U.S.A., Canada, Puerto Rico, and the Caribbean.)
Lutron will, at its option, repair or replace any unit that is defective in materials or manufacture within one year after purchase. For warranty serv-
ice, return unit to place of purchase or mail to Lutron at 7200 Suter Rd., Coopersburg, PA 18036-1299, postage pre-paid.
THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES, AND THE IMPLIED WARRANTY OF MERCHANTABILITY IS LIMITED
TO ONE YEAR FROM PURCHASE. THIS WARRANTY DOES NOT COVER THE COST OF INSTALLATION, REMOVAL OR REINSTALLATION,
OR DAMAGE RESULTING FROM MISUSE, ABUSE, OR DAMAGE FROM IMPROPER WIRING OR INSTALLATION. THIS WARRANTY DOES
NOT COVER INCIDENTAL OR CONSEQUENTIAL DAMAGES. LUTRON'S LIABILITY ON ANY CLAIM FOR DAMAGES ARISING OUT OF OR
IN CONNECTION WITH THE MANUFACTURE, SALE,
INSTALLATION, DELIVERY, OR USE OF THE UNIT
SHALL NEVER EXCEED THE PURCHASE PRICE OF
THE UNIT.
This warranty gives you specific legal rights, and you may
have other rights which vary from state to state. Some
states do not allow the exclusion or limitation of inciden-
tal or consequential damages, or limitation on how long
an implied warranty may last, so the above limitations
may not apply to you.
This product may be covered by the following U.S.
patent: 4,835,343; and corresponding foreign patents.
U.S. and foreign patents pending. Lutron and Claro are
registered trademarks and Dalia is a trademark of
Lutron Electronics Co., Inc. NEC is a registered trade-
mark of the National Fire Protection Association,
Quincy, Massachusetts.
© 2006 Lutron Electronics Co., Inc.
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299, U.S.A.
Made and printed in U.S.A.
11/06 P/N 030-911-03 Rev. A
Lutron Technical Support Center
Installation
3-Way Switch
1 1
DL-3PSL, LX-3PSL
2 2
2005, Article 404-9 allows a
®
series wallplates.
3 3
®
Do Not Remove
Outside Sections
SINGLE-POLE:
Insulated wires connected to
two screws of the same color.
Replace with a SINGLE-POLE
Middle Control Has Two switch. See Step 5a when
Sections Removed Side Sections Removed
wiring.
3-way with a dimmer
4 4
1000 W/VA
Important Note: Your wall switch may have two wires attached to the same screw
N/A
(see illustrations below for examples). Tape these two wires together before discon-
necting. Connect both wires to the switch wire in Step 5.
Fax +1-610-282-6311
http://www.lutron.com
Important Wiring Information
030-911-03 030-911-03
1-800-523-9466
Turning OFF power.
• Turn power OFF at circuit breaker (or remove fuse).
Removing wallplate and switch.
• Remove wallplate and switch mounting screws.
• Carefully remove switch from wall (do not remove wires).
Caution: Verify power
is OFF to switch
before proceeding.
Identifying the type of circuit.
Different-colored screw
(Common). Actual location may
vary.
OR
Ground (Bare
Copper or
Green Wire)
Ground (Bare Copper
or Green Wire)
Tag
3-WAY:
Insulated wires connected to three screws. One of
OR these wires is connected to a screw of a different-
color (not green) or labeled COMMON. MARK or
TAG this wire to identify it when wiring. Replace
with a 3-WAY switch. See Step 5b when wiring.
Disconnecting switch wires.
• Carefully disconnect switch wires.
One wire in the back-
wired hole and one to
the screw.
Screw Terminals:
Turn screws to
loosen.
When making wire connections, follow the recom-
mended strip lengths and combinations for the sup-
plied wire connectors. Note: Wire connectors pro-
vided are suitable for copper wire only. For alu-
minum wire, consult an electrician.
Strip insulation 1/2" (13 mm) for 10, 12 or 14 AWG wire
Strip insulation 5/8" (16 mm) for 16 or 18 AWG wire
Use to join one or two 12 or 14 AWG supply wires
with one 10, 12, 14, 16, or 18 AWG control wire.
Twist wire connector tight.
Be sure no bare wire is
24 hrs / 7 days www.lutron.com
5 5 Wiring the Switch.
• For installations involving more than one control in a wallbox, refer to
the section on Multigang Installations before beginning.
• To use a 3-way switch (black, red and red/white wires) in a single-pole
application, cap off the red/white wire and follow instructions for sin-
gle-pole wiring.
Depending on model number, the
switch may include a Lutron Claro
wallplate. If so, please remove the front
piece of the wallplate from the adapter before
installing. This will expose switch mounting holes
and prevent wallplate damage while installing switch.
5a - Single-Pole Wiring
Black
Ground
Green
Black Black
~
120 V Green
60 Hz
Load*
Ground
Neutral
5b - 3-Way Wiring
Red Tag
Black
One continuous wire Green
Ground
to the screw.
Red/White
Tag
3-Way Switch 3-Way Switch
Black Red
~
Green
120 V
Red /
60 Hz
White
Backwired:
Ground
Insert screw-
driver. Pull wire
out.
6 6 Mounting switch to wallbox.
• Form wires carefully into the wallbox, mount and align switch.
• Install wallplate.
Attach standard wallplate. Attach Claro wallplate.
OR
exposed.
7 7
Turning ON power.
• Turn power ON at circuit breaker (or replace fuse).
Grasp and
pull front
piece of
wallplate
from the
wallplate
adapter.
• Connect the green switch ground
wire to the bare copper or green
ground wire in the wallbox. (See
Important Note 3.)
• Connect one of the black switch
wires to either of the wires
removed from the switch.
• Connect the remaining black
switch wire to the other wire
removed from the switch.
*See Capacity Chart for details
• Connect the green switch ground
wire to the bare copper or green
ground wire in the wallbox. (See
Important Note 3.)
• Connect the black switch wire to
the wire removed from the differ-
ent-colored screw on the switch
(marked or tagged wire) in Step 3.
Remove tag from wire.
• Connect the red switch wire to
either of the remaining wires
removed from the switch.
• Connect the red/white switch
wire to the remaining wire
removed from the switch.
Load* *See Capacity Chart for details
Neutral
