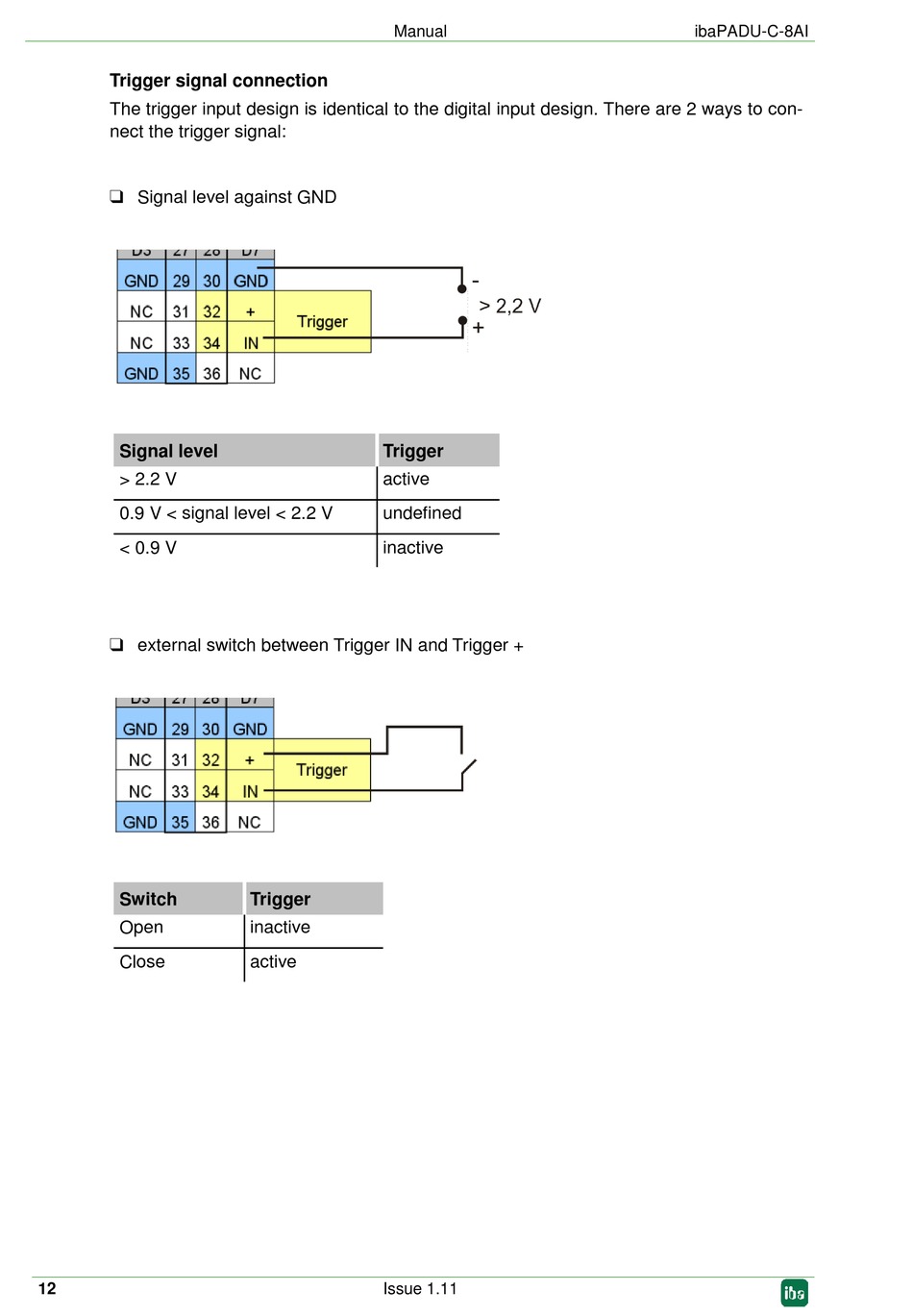

Trigger signal connection
The trigger input design is identical to the digital input design. There are 2 ways to con-
nect the trigger signal:
 Signal level against GND
Signal level
> 2.2 V
0.9 V < signal level < 2.2 V
< 0.9 V
 external switch between Trigger IN and Trigger +
Switch
Open
Close
12
Manual
Trigger
active
undefined
inactive
Trigger
inactive
active
