5.4
Interfaces
5.4.1
DC input X14
An external power supply (9-30 V, DC) can be connected via the DC input and the inter-
nal battery can thus be charged.
The device switches to battery operation if there is no external power supply available.

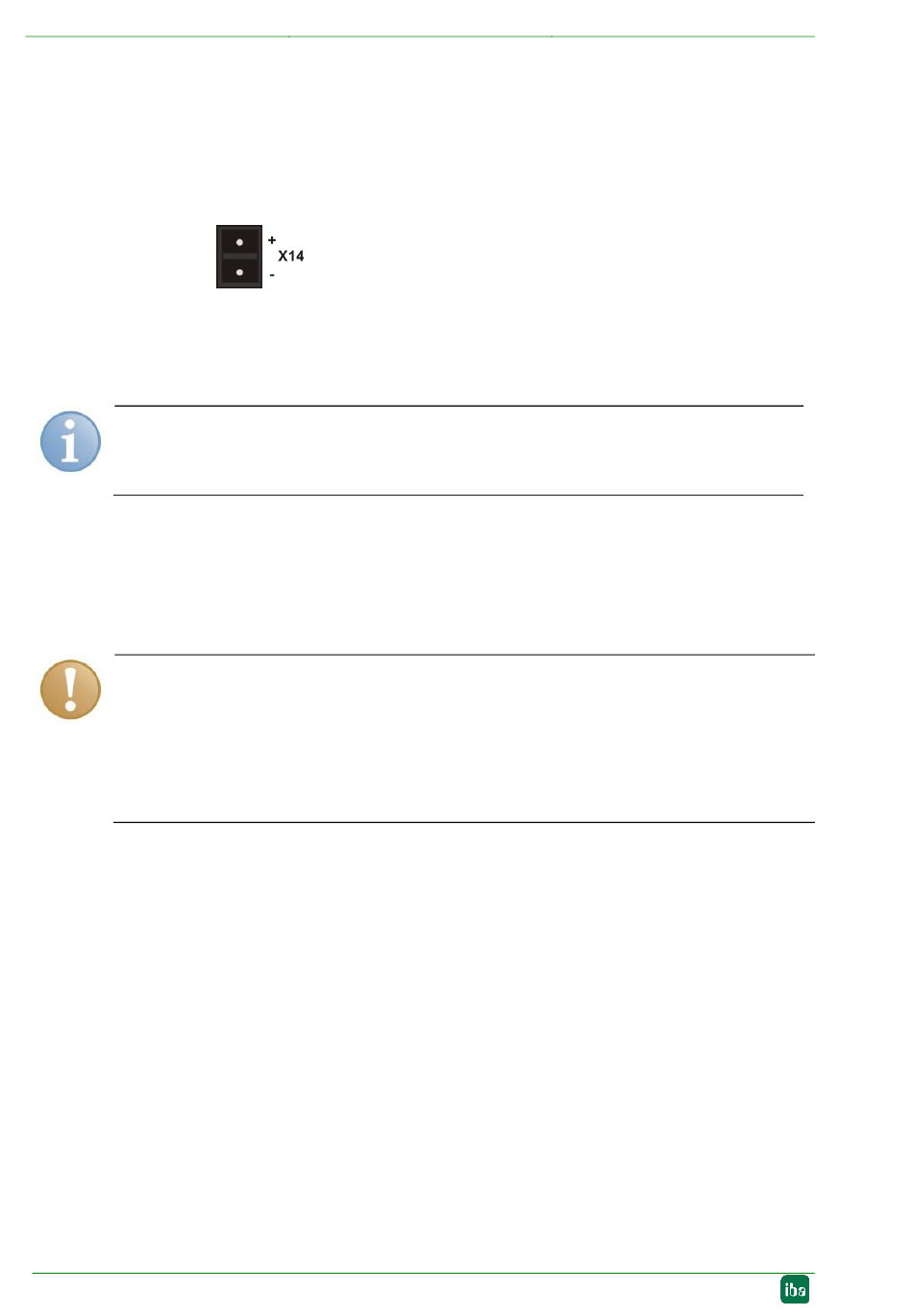

Polarity X14:
5.4.2
Ethernet interface X22
Connectivity to a network to retrieve the data via FTP.
Note
This is only possible if the device is not connected as a mass storage via USB and an
IP address has been configured.
5.4.3
USB interface X23
A PC can be connected via this USB interface in order to read data. At the same time
the internal battery is charged.
Important note
When a PC is connected to the device via USB while measuring, the measuring accuracy
< 0.1% of the total measuring range could be exceeded due to ground loops. Therefore
we recommend disconnecting the USB connection from the PC while measuring.
Power should be supplied via the DC input or the internal battery. The access to the data
via Ethernet has no effect on the measuring accuracy.
