ibaPADU-C-8AI
5.4.4

Analog/digital inputs X1

Connection for
 8 digital and analog input signals
 2 earthing
 Trigger input

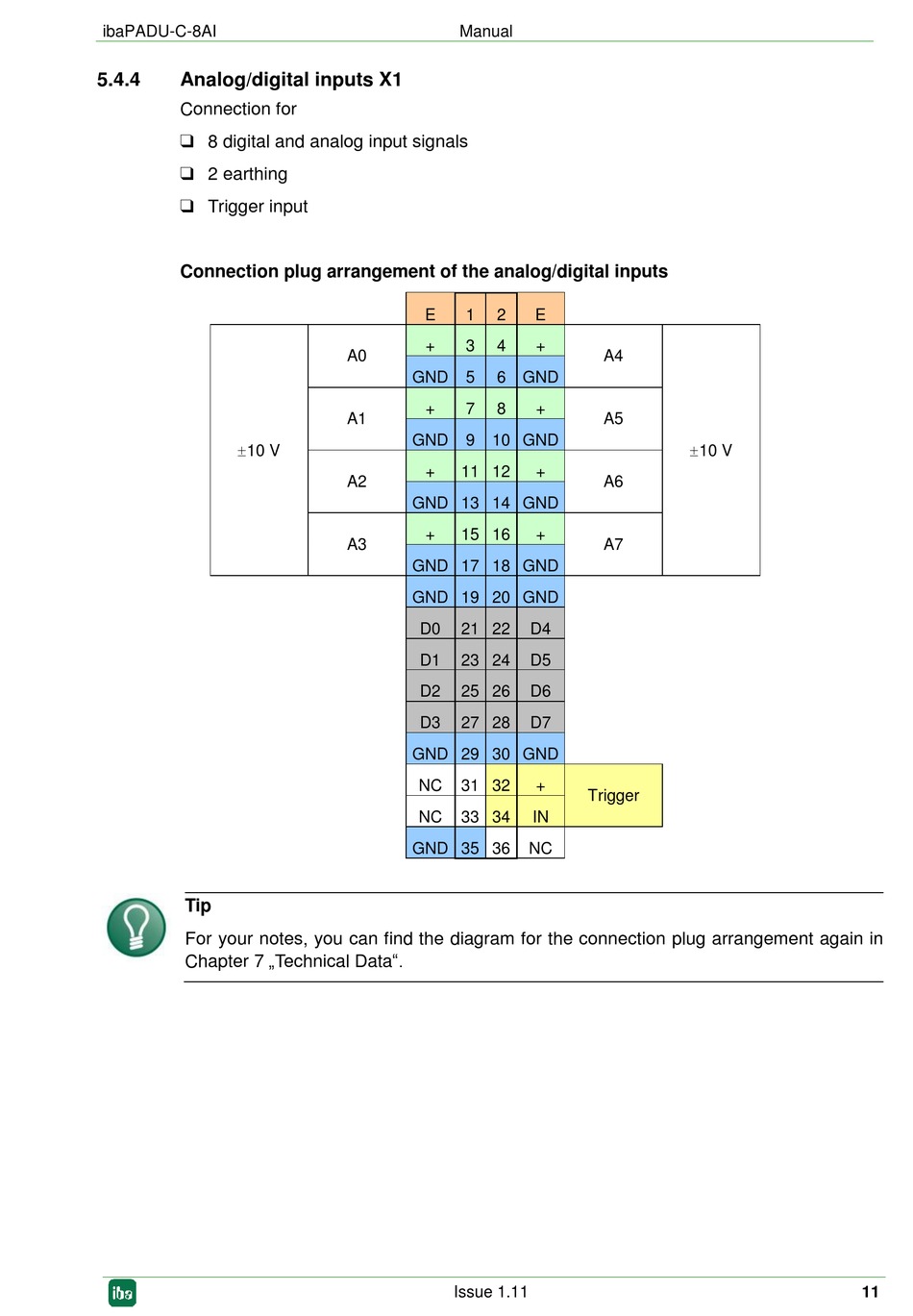

Connection plug arrangement of the analog/digital inputs
10 V
Tip
For your notes, you can find the diagram for the connection plug arrangement again in
Chapter 7 „Technical Data".
Manual
E 1 2
+ 3 4
A0
GND 5 6 GND
+ 7 8
A1
GND 9 10 GND
+ 11 12
A2
GND 13 14 GND
+ 15 16
A3
GND 17 18 GND
GND 19 20 GND
D0 21 22
D1 23 24
D2 25 26
D3 27 28
GND 29 30 GND
NC 31 32
NC 33 34
GND 35 36
Issue 1.11
E
+
A4
+
A5
10 V
+
A6
+
A7
D4
D5
D6
D7
+
Trigger
IN
NC
