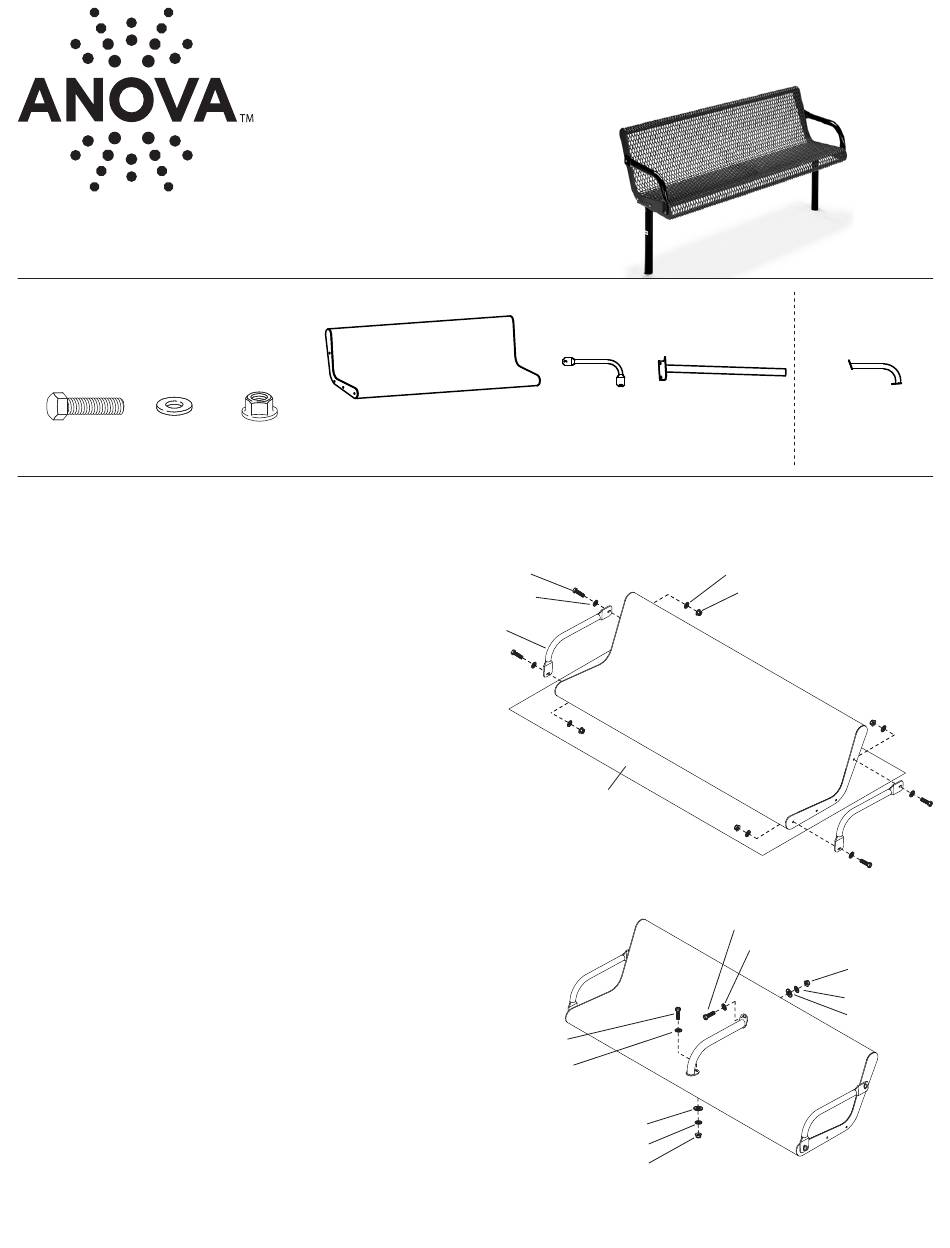

Anova F1032 Assembly Instructions

anovafurnishings.com
888.535.5005 tel
TOOLS needed:
• 1/2" Open-end or Box-end Wrench
• Ratchet with 1/2" Socket
• Level
aSSeMBLY Hardware:
8 x 16 x
5/16" X 1.5" 5/16"
Hex Head Bolt Washer Flanged Hex Nut
aSSeMBLY:
The assembly is a two-person operation.
1. Inspect the shipping container contents for damage and to determine that all components and hardware are present.
2. Place the Contour Bench Seat on the shipping
packaging or other soft surface to avoid scratching
the product.
NOTE: When viewing the Bench Seat from the end,
the edge with three holes is the seat portion and the
edge with one hole is the backrest portion.
3. Locate one of the End Armrests and position it at
one end of the Bench Seat. Line up the holes in the
Armrest with the mounting holes in the end of the
Bench Seat. Place a Washer on a Bolt and insert the
Bolt through the Armrest and through the mounting
hole in the Bench Seat. Place a Washer and Flanged
Nut on the end of the Bolt and tighten finger
tight. Repeat this process for the other end of the
Armrest. After both sets of hardware are installed,
tighten with the Wrench and Ratchet.
Attach the other End Armrest at the other end of
the Bench Seat in the same manner.
3a. For model F1036VB only: Locate the Center Armrest and
additional Hardware Package. Position the Center Armrest near
the center of the Bench Seat, with both ends of the Armrest
snug against the Bench Seat. Place a small Washer (5/16")
on each Bolt. Insert one Bolt through one end of the Center
Armrest and through an opening in the Bench Seat. Insert the
other Bolt through the other end of the Center Armrest and
through an opening in the Bench Seat.
Check that the Center Armrest is vertical and in the desired
position. Reposition the Center Armrest if necessary.
When the Center Armrest is correctly positioned, put one of the
large washers (7/16") on one of the Bolts, then a small Washer
(5/16"), then add the Flanged Nut. Tighten finger tight.
Add a large Washer, then small Washer, and Flanged Nut to the
other Bolt, then tighten both Nuts.
aSSeMBLY InSTrucTIOnS
F1032 4 ft Courtyard Bench
F1036 6 ft Courtyard Bench
F1036VB
6 ft Courtyard Bench with Center Armrest
BencH cOMpOnenTS:
1 x Contour Bench Seat
8 x
5/16"
2 x End
Armrest
Bolt
Washer
Armrest
Packaging cardboard or
other soft work surface
Bolt
Washer
Large Washer
Small Washer
Flanged Nut
Model F1036 shown.
Additional Feature
Model F1036VB Only
1 x Center Armrest
2 x In Ground
Bench Support
Additional Hardware
Washer
Flanged Nut
Bolt
Washer
Flanged Nut
Small Washer
Large Washer
with
