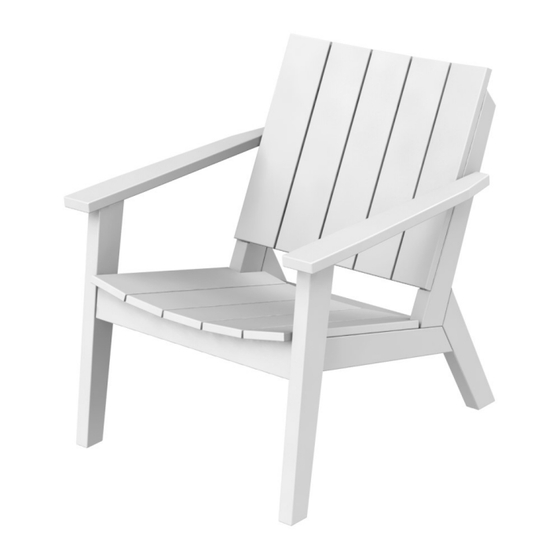

MAD Chat Chair
289
1
PLEASE READ INSTRUCTIONS COMPLETELY BEFORE BEGINNING.
Carefully remove contents from box. Make sure that all parts and hardware
are included using the Parts List below.
Tools Required:
Back Assembly
Front Apron
50mm Hex Lag
Part Code: 316-1/4-10-50HL
1-3/4" Phillips Head Screw
Part Code: 316-8X1-3/4PFDS
WARRANTY QUESTIONS OR COMMENTS PLEASE CALL TOLL FREE AT 1-800-809-3114
Seaside Casual Furniture | 11 Industrial Drive Coventry, RI 02816 | 800-809-3114 | sales@seasidecasual.com
ASSEMBLY INSTRUCTIONS
4mm Allen Wrench (included); #2 Phillips Head Screwdriver;
(Recommended: Rubber Mallet; Power Drill)
x 1
x 1
Actual Size
Actual Size
Seat Assembly
x 1
Rear Apron
x 10
x 2
Left and Right Side Assemblies
Right
x 1
Part Code: TAP-5/8
4mm Allen Wrench
Actual Size
Part Code: 4MMALLEN
1-1/4" Phillips Head Screw
Actual Size
Part Code: 316-8X1-1/4PFDS
Left
x 1ea
5/8 taps®
Actual Size
x 10
x 1
x 7
Page 1
289
-REV A
Advertisement
Table of Contents
Related Manuals for Seaside Casual MAD Chat Chair
Summary of Contents for Seaside Casual MAD Chat Chair
- Page 1 1-3/4” Phillips Head Screw Actual Size Actual Size Part Code: 316-8X1-1/4PFDS Part Code: 316-8X1-3/4PFDS WARRANTY QUESTIONS OR COMMENTS PLEASE CALL TOLL FREE AT 1-800-809-3114 Seaside Casual Furniture | 11 Industrial Drive Coventry, RI 02816 | 800-809-3114 | sales@seasidecasual.com Page 1 -REV A...
- Page 2 ATTACH APRONS TO SIDE ASSEMBLIES Align Front and Rear Aprons with Front and Rear Legs. Secure with (6) 50mm Hex Lags through counter- bored holes in Legs, and (2) 1-3/4” Screws through pockets in Rear Apron. Plug holes in Legs with 5/8” taps®.
