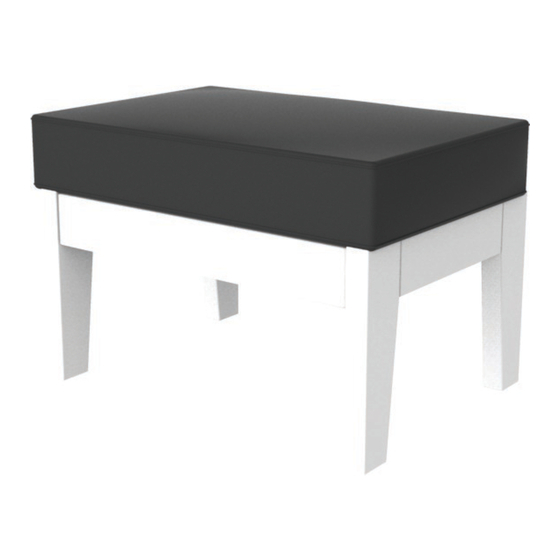

DEX Ottoman
(146)
1
PLEASE READ INSTRUCTIONS COMPLETELY BEFORE BEGINNING.
Carefully remove contents from box. Make sure that all parts and hardware
are included using the Parts List below.
Tools Required:
Foot Rest
5/8" tap®
Actual Size
80mm Hex Lag
Actual Size
Part Code: 316-1/4-10-80HL
WARRANTY QUESTIONS OR COMMENTS PLEASE CALL TOLL FREE AT 1-800-809-3114
Seaside Casual Furniture | 11 Industrial Drive Coventry, RI 02816 | 800-809-3114 | sales@seasidecasual.com
ASSEMBLY INSTRUCTIONS
4mm Allen Wrench (included); #2 Phillips Head Screwdriver;
x 1
x 8
1-3/4" Phillips Head Screw
x 8
Leg Assembly
Apron
4mm Allen Wrench
Actual Size
Part Code: 4MMALLEN
Actual Size
Part Code: 316-8X1-3/4PFDS
x 2
x 2
x 1
x 8
Page 1
146-Rev A
Advertisement
Table of Contents
Related Manuals for Seaside Casual DEX Ottoman 146
Summary of Contents for Seaside Casual DEX Ottoman 146
- Page 1 1-3/4” Phillips Head Screw Actual Size Actual Size Part Code: 316-8X1-3/4PFDS Part Code: 316-1/4-10-80HL WARRANTY QUESTIONS OR COMMENTS PLEASE CALL TOLL FREE AT 1-800-809-3114 Page 1 Seaside Casual Furniture | 11 Industrial Drive Coventry, RI 02816 | 800-809-3114 | sales@seasidecasual.com 146-Rev A...
- Page 2 ATTACH LEGS TO APRONS Attach Assembly Aprons using (4) 80 mm Hex Lags thru counter-bored holes in Leg Assembly into pilot holes in aprons. Plug Holes using 5/8” taps®. Repeat process for other side. SECURE FOOT REST TO LEGS Secure Foot Rest Assembly to Legs using (4) 1-3/4”...
