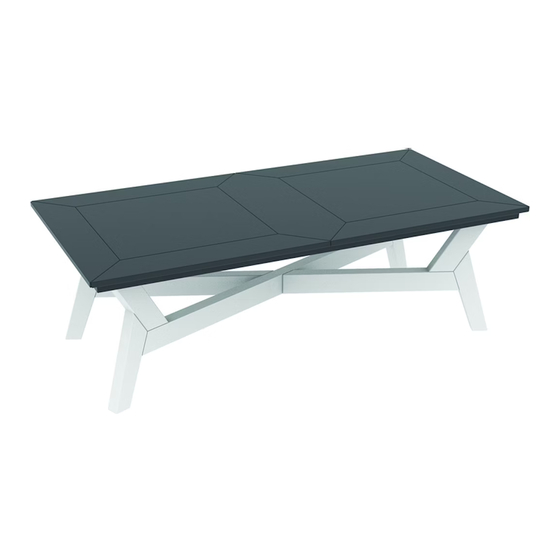

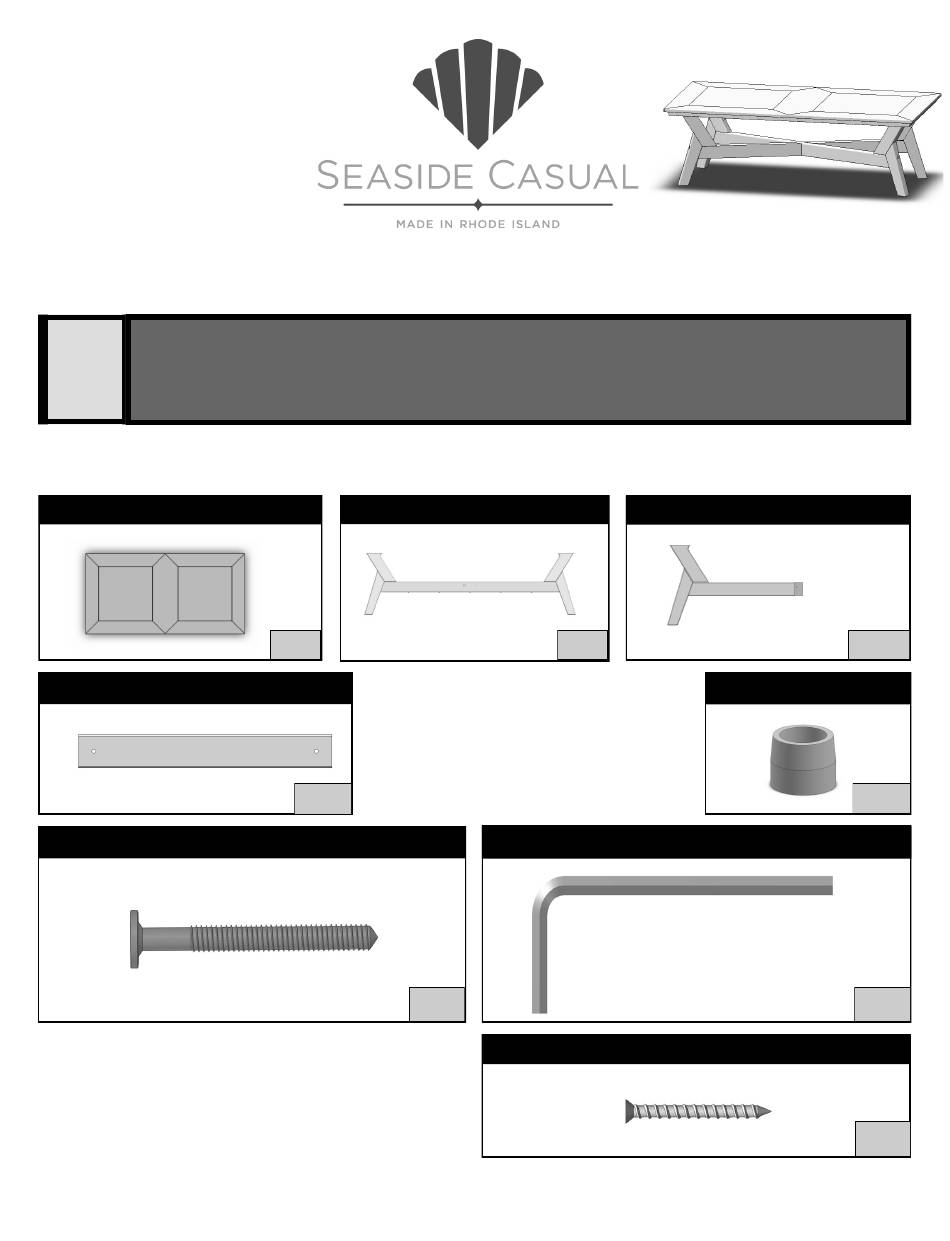

PLEASE READ INSTRUCTIONS COMPLETELY BEFORE BEGINNING.
Carefully remove contents from box. Make sure that all parts and hardware
are included using the Parts List below.
Tools Required:
TOP
CONNECTOR
50mm Hex Lag
Actual Size
Part Code: 316-1/4-10-50HL
WARRANTY QUESTIONS OR COMMENTS PLEASE CALL TOLL FREE AT 1-800-809-3114
Seaside Casual Furniture | 11 Industrial Drive Coventry, RI 02816 | 800-809-3114 | sales@seasidecasual.com
ASSEMBLY INSTRUCTIONS
4mm Allen Wrench (included); #2 Phillips Head Screwdriver;
(Recommended: Rubber Mallet; Power Drill)
x 1
x 1
LONG LEG
x 1
x 8
1 1/4" Philips Head Screw
SHORT LEG
5/8 taps®
Actual Size
Part Code: TAP-5/8
4mm Allen Wrench
Actual Size
Part Code: 4MMALLEN
Actual Size
x 2
x 2
x 1
x 2
Page 1
150
Advertisement
Table of Contents
Related Manuals for Seaside Casual DEX 150
Summary of Contents for Seaside Casual DEX 150
- Page 1 Actual Size Part Code: 316-1/4-10-50HL Part Code: 4MMALLEN 1 1/4” Philips Head Screw Actual Size WARRANTY QUESTIONS OR COMMENTS PLEASE CALL TOLL FREE AT 1-800-809-3114 Seaside Casual Furniture | 11 Industrial Drive Coventry, RI 02816 | 800-809-3114 | sales@seasidecasual.com Page 1...
- Page 2 ASSEMBLE LEGS Attach Long Leg to Short Leg using (2) 50mm Lags and (2) 1 1/4” Philips head screws. Plug holes with 5/8” taps®. ATTACH CONNECTOR TO LEGS Attach Connector to legs using (4) 50mm Lags. ATTACH CONNECTOR TO ALUMINUM FROM UNDERNEATH Attach Leg Assemby to Top using (4) 50mm Lags to Connector through alu- minum holes.
