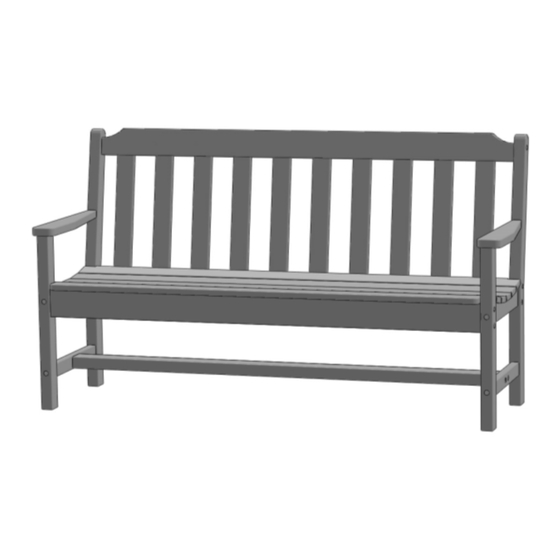

Newport Bench
037 4' Bench
137 5' Bench
1

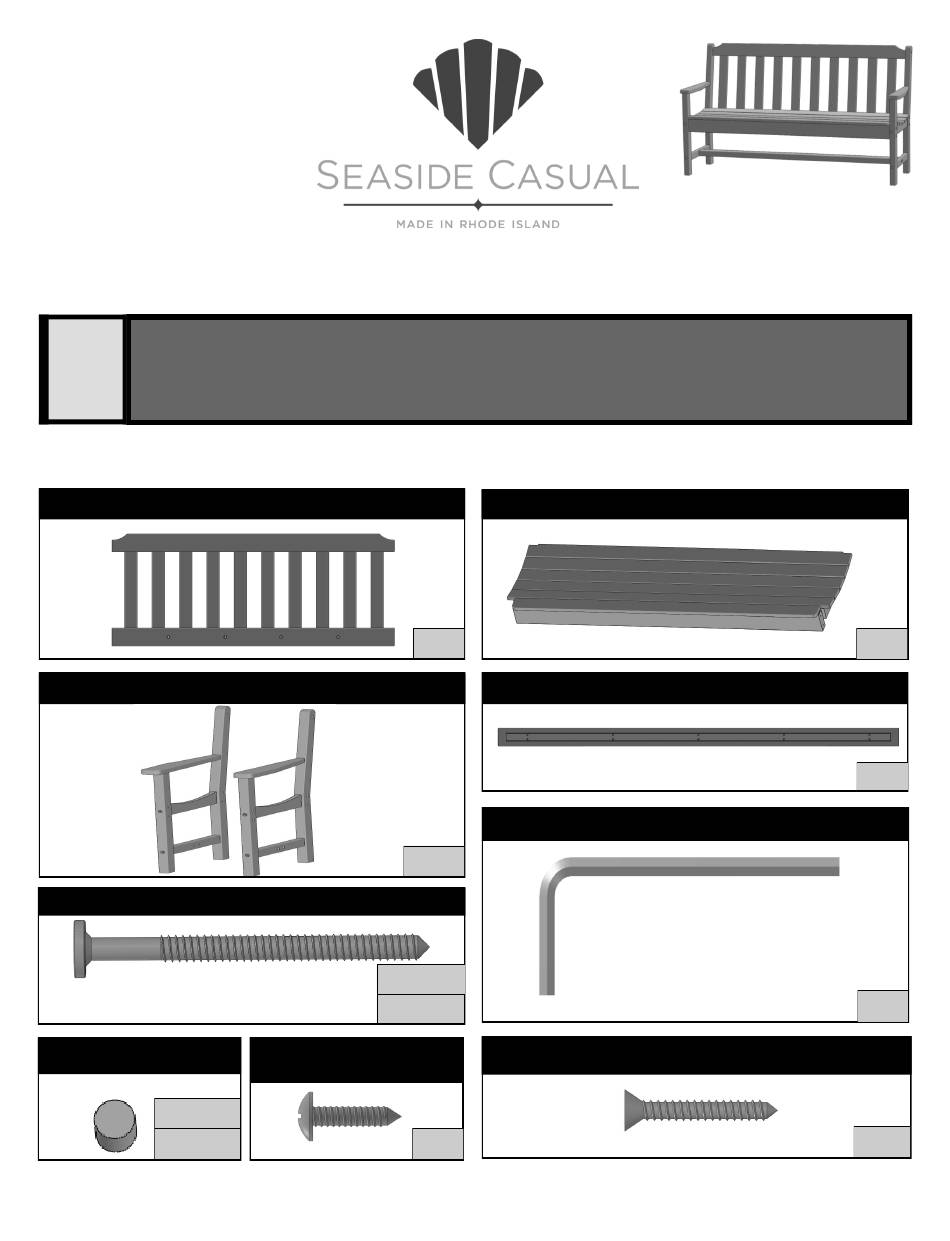

PLEASE READ INSTRUCTIONS COMPLETELY BEFORE BEGINNING.
Carefully remove contents from box. Make sure that all parts and hardware
are included using the Parts List below.
Tools Required:
Back Assembly
Right & Left Side Assemblies
Right
80mm Hex Lag
Actual Size
Part Code: 316-1/4-10-80HL
Bungs
Actual Size
037 x 10
5/8"
137 x 18
WARRANTY QUESTIONS OR COMMENTS PLEASE CALL TOLL FREE AT 1-800-809-3114
Seaside Casual Furniture | 11 Industrial Drive Coventry, RI 02816 | 800-809-3114 | sales@seasidecasual.com
ASSEMBLY INSTRUCTIONS
4mm Allen Wrench (included); #2 Phillips Head Screwdriver; Rubber Mallet.
Left
x 1ea
037 x 13
137 x 18
3/4" Phillips Pan Head Screw
(137 Only)
Actual Size
Part Code: 316-8x3/4PPS
x 1
Lower Stretcher (137 Only)
1-1/4" Phillips Head Screw
x 9
Seat Assembly
4mm Allen Wrench
Actual Size
Part Code: 4MMALLEN
Actual Size
Part Code: 316-8X1-1/4PFDS
037-
x 1
x 1
x 1
x 4
Page 1
137-
REV C
REV B
Advertisement
Related Manuals for Seaside Casual 037
Summary of Contents for Seaside Casual 037
- Page 1 137 x 18 Part Code: 316-8X1-1/4PFDS Part Code: 316-8x3/4PPS WARRANTY QUESTIONS OR COMMENTS PLEASE CALL TOLL FREE AT 1-800-809-3114 Page 1 Seaside Casual Furniture | 11 Industrial Drive Coventry, RI 02816 | 800-809-3114 | sales@seasidecasual.com 037- 137- REV C REV B...
- Page 2 Back Assembly to Seat Assembly using (4) 80MM Hex Lags (3 for 037) thru coun- ter-bored holes in lower back into pilot holes in seat supports. Plug holes with (4) Turn Assembly upside down. Secure 5/8” taps® . aluminum seat cleat to lower back using (9) 3/4”...
- Page 3 (2) 80mm Hex Lags. Plug holes with Secure outer seat cleat to side assembly (2) 5/8” Bungs using rubber mallet. using (2) 1-1/4” Phillips Head Screws. Repeat process for other side. Repeat Process for other side. Page 3 037- 137- REV C REV B...
