Seaside Casual Nantucket 089 Assembly Instructions

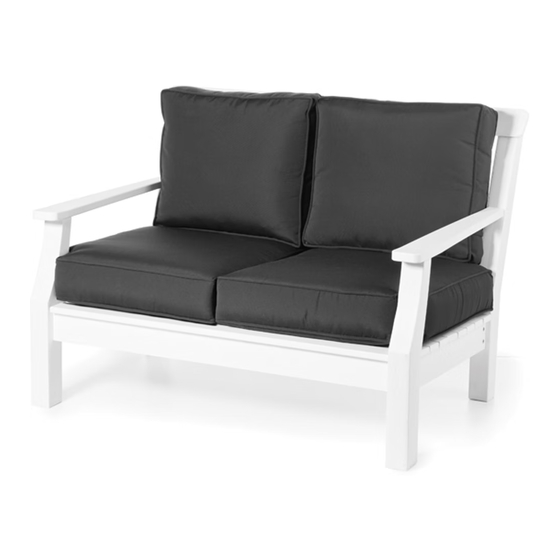

Nantucket Collection
(089 Love Seat, 090 Sofa,
091 Chair)
1
PLEASE READ INSTRUCTIONS COMPLETELY BEFORE BEGINNING.
Carefully remove contents from box. Make sure that all parts and hardware
are included using the Parts List below.
Tools Required:
Back Assembly
Front Legs
5/8"
x 22
80mm Hex Lag
Part Code: 316-1/4-10-80HL
2 1/2" Pan Head Screw
Actual Size
Part Code: 18/8-14X2-1/2PPMS
WARRANTY QUESTIONS OR COMMENTS PLEASE CALL TOLL FREE AT 1-800-809-3114
Seaside Casual Furniture | 11 Industrial Drive Coventry, RI 02816 | 800-809-3114 | sales@seasidecasual.com
ASSEMBLY INSTRUCTIONS
4mm Allen Wrench
#3 Phillips Head Screwdriver; (Recommended: Rubber Mallet; High Powered Drill)
Left
Right
x 1ea
Bungs
3/8"
Actual Size
(included); #2
x 1
Rear Legs
Left
Mid (Sofa Only)
Right
x 1ea
x 3
x 22
1-3/4" Phillips Head Screw
x2
Phillips Head
Seat Assembly
Arms
4mm Allen Wrench
Actual Size
Part Code: 4MMALLEN
Actual Size
Part Code: 316-8X1-3/4PFDS
089- 090
REV C
Screwdriver;
x 1
Right
Left
x 1ea
x 1
x 9
Page 1
