3.1 SPECIFICATIONS

Weight lb (kg)
Length inches (mm)
Width inches (mm)
Height inches (mm)
Waterway Size inches (mm)
Maximum Operating Pressure psi (bar)
Standard Inlet Coupling inches (mm)
Standard Outlet inches (mm)
Operating Temperature Range of Fluid
Storage Temperature Range
Materials Used

3.2 USE WITH SALT WATER

Use with salt water is permissible provided the equipment is thoroughly cleaned with fresh water after each use. The service life of
the equipment may be shortened due to the eff ects of corrosion, and is not covered under warranty.

3.3 VARIOUS MODELS AND TERMS

INLET
COUPLING
©Copyright Task Force Tips LLC 2020
MODEL IN-LINE STRAIGHT
2.5 (64) Male Rigid
IN-LINE GAUGE WITH 45° RIGHT VALVE
VALVE POSITION
INDICATOR
IN-LINE GAUGE WITH 45 ° LEFT VALVE
IN-LINE PIVOTING
8.0 (203) 8.0 (203)
12.4 (312) 14.4 (366)
5.6 (143) 5.6 (143)
8.1 (206) 8.1 (206)
2.5 (64)
300 (20)
2.5 (64) Female Swivel
2.5 (64) Male Rigid
Pivoting ±20°
33° to 120°F (0° to 50°C)
-40° to 150°F (-40° to 65°C)
Aluminum 6000 series hard anodized MIL8625 class 3 type 2,
stainless steel 300 series
Table 3.1
FIXED
OUTLET

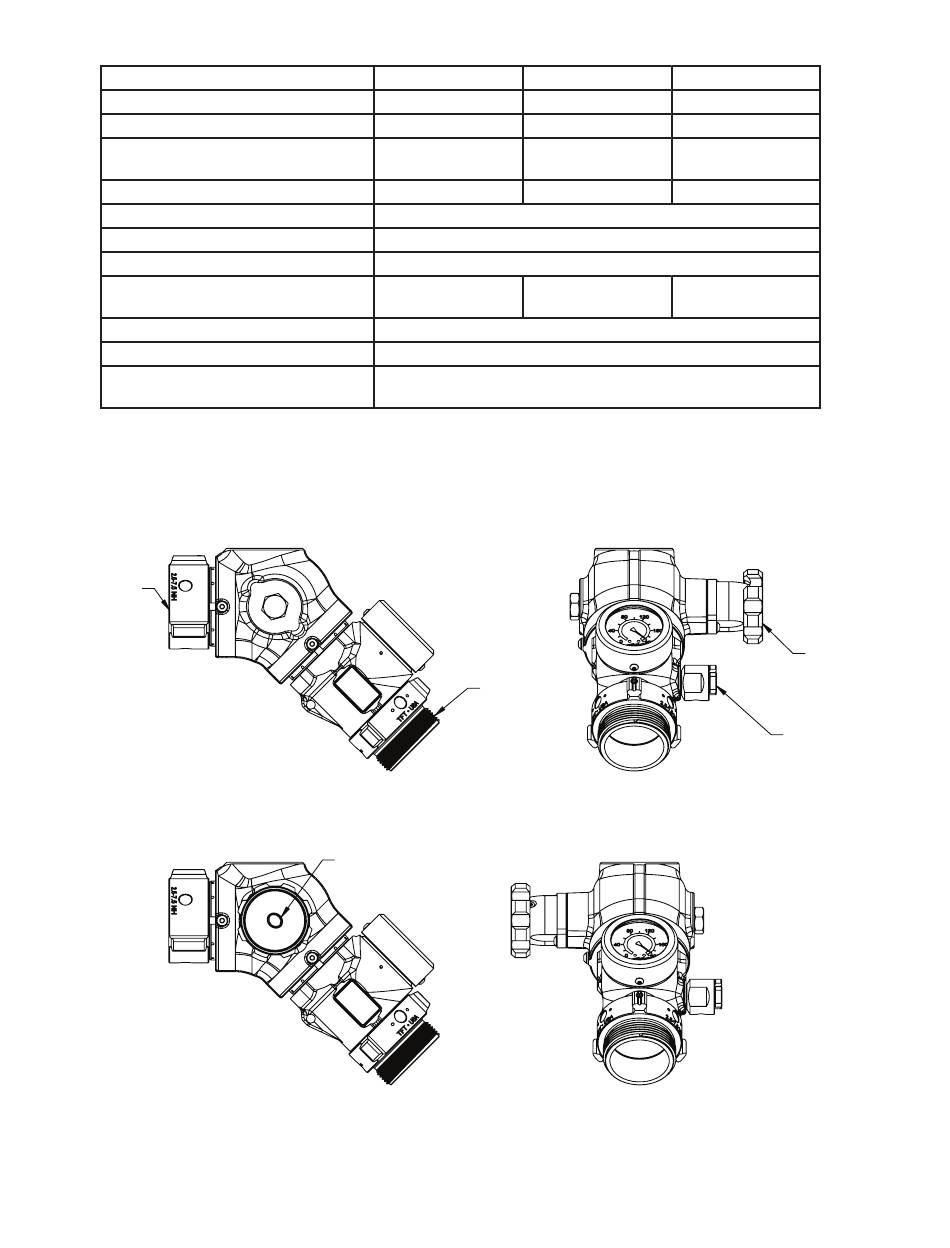

Figure 3.3A
4
IN-LINE 45°
9.6 (244)
11.4 (289)
Right 8.1 (206)
Left 8.8 (224)
9.4 (238)
2.5 (64) Male Rigid
SLOW
CLOSE
KNOB
BLEED
VALVE
LIA-335 May 11, 2020 Rev00
