Table of Contents

INLET COUPLING

PITOT PRESSURE

PICKUP

4.0 VALVE OPERATION

Attempting to close a valve further than the positive stops will not result in a tighter seal between the ball and valve seat. All valves

include markings to indicate the direction of handle rotation to open the valve. Automatic valve lock keeps valve position while ﬂ owing

at partial openings. Kicking or standing on the valve controls is considered misuse of the appliance.

Slow close valves utilize a knob to actuate. Turning the knob

slowly opens or closes the valve. Valve position is indicated

by the height of the GREEN valve indicator in the center of

the knob.

©Copyright Task Force Tips LLC 2020

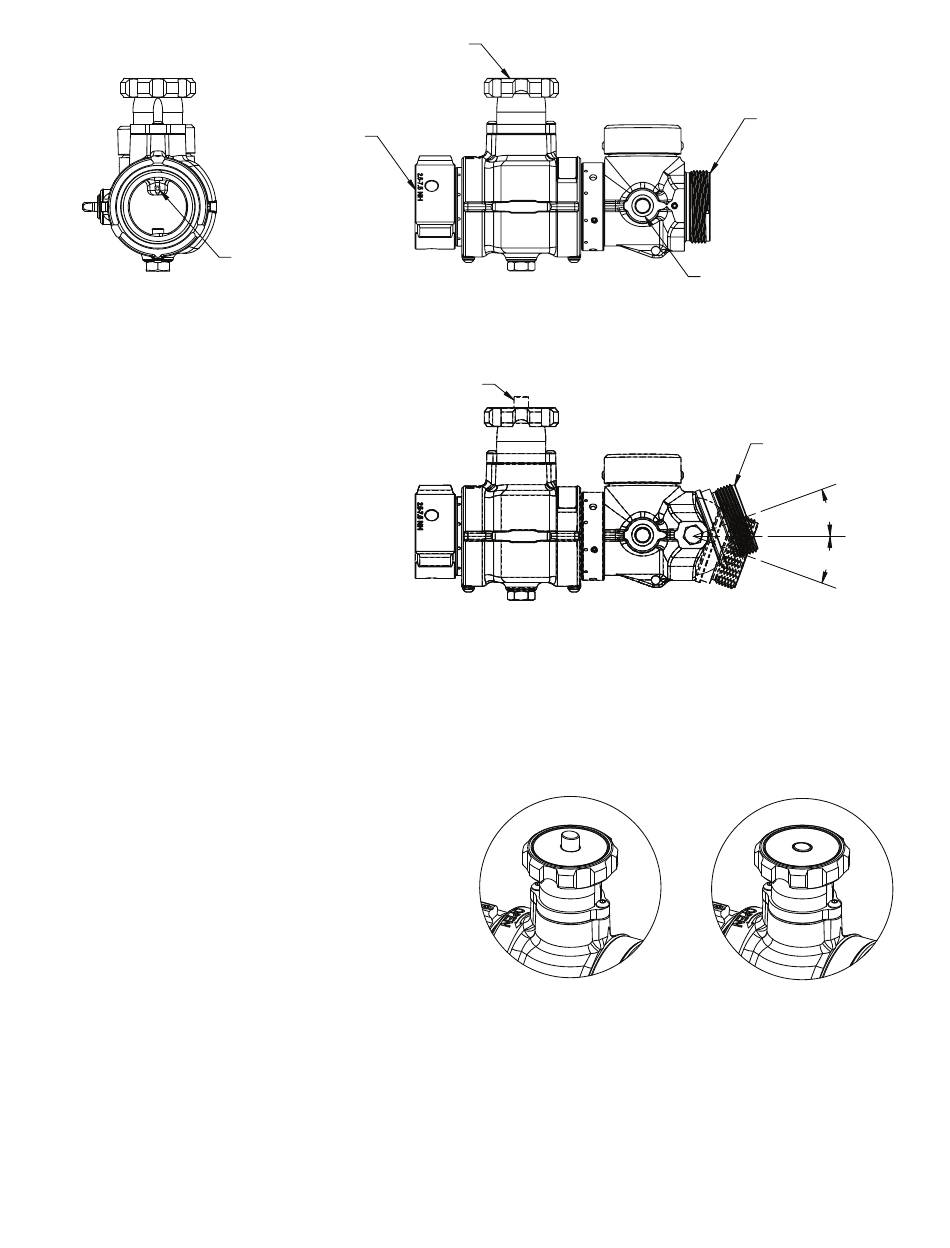

SLOW CLOSE KNOB

IN-LINE GAUGE WITH VALVE FIXED

VALVE POSITION INDICATOR

IN-LINE GAUGE WITH VALVE PIVOTING

Figure 3.3B

OPEN

FIXED OUTLET

PORT FOR OPTIONAL

BLEED VALVE

PIVOTING OUTLET

20°

CLOSED

Figure 4.1

LIA-335 May 11, 2020 Rev00
