Troubleshooting

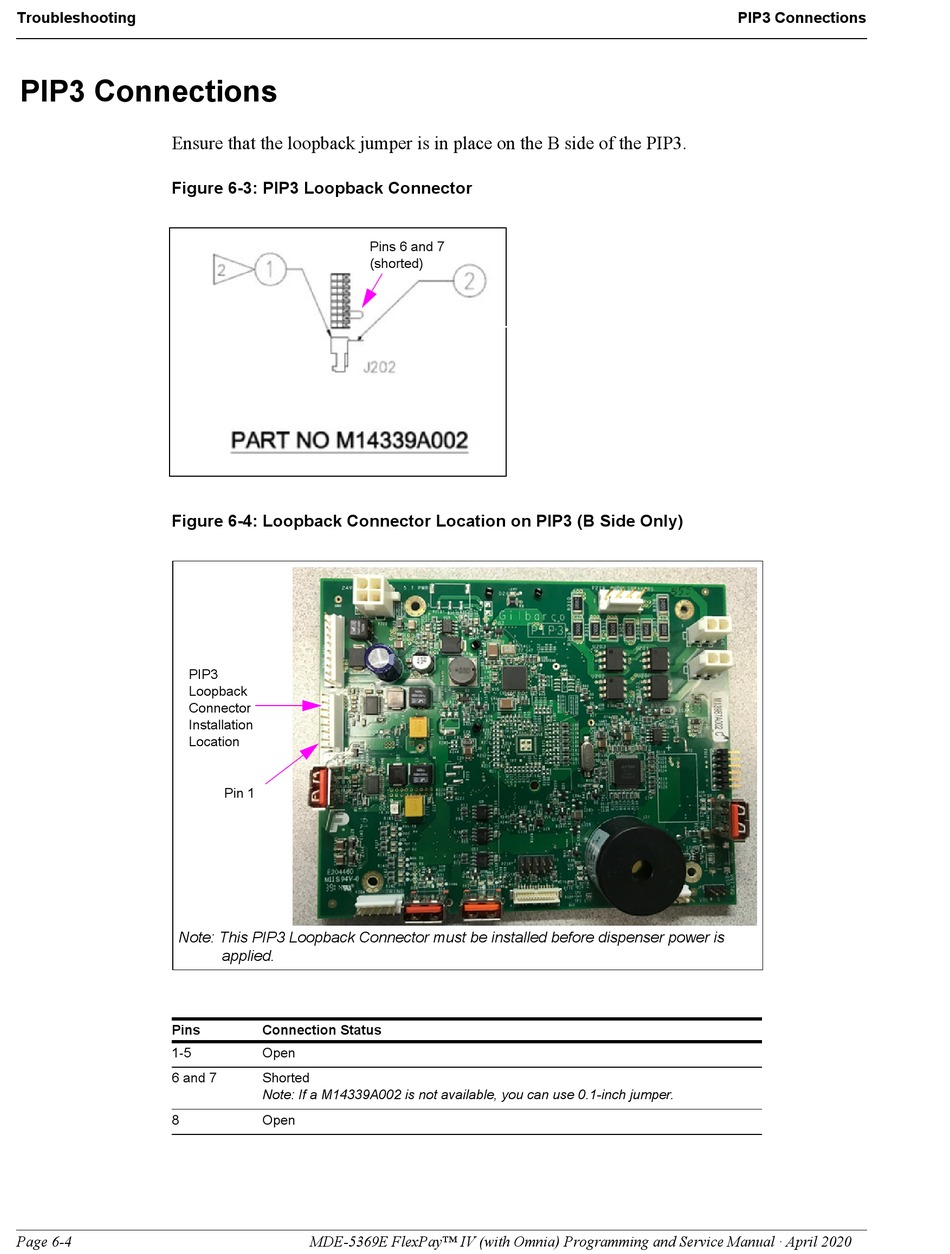

PIP3 Connections

Ensure that the loopback jumper is in place on the B side of the PIP3.
Figure 6-3: PIP3 Loopback Connector
Figure 6-4: Loopback Connector Location on PIP3 (B Side Only)
PIP3
Loopback
Connector
Installation
Location
Note: This PIP3 Loopback Connector must be installed before dispenser power is
Pins
1-5
6 and 7
8
Page 6-4
Pins 6 and 7
(shorted)
Pin 1
applied.
Connection Status
Open
Shorted
Note: If a M14339A002 is not available, you can use 0.1-inch jumper.
Open
MDE-5369E FlexPay™ IV (with Omnia) Programming and Service Manual · April 2020
