Fan Assemblies
4. Use a Phillips #1 screwdriver to tighten the chassis screw:

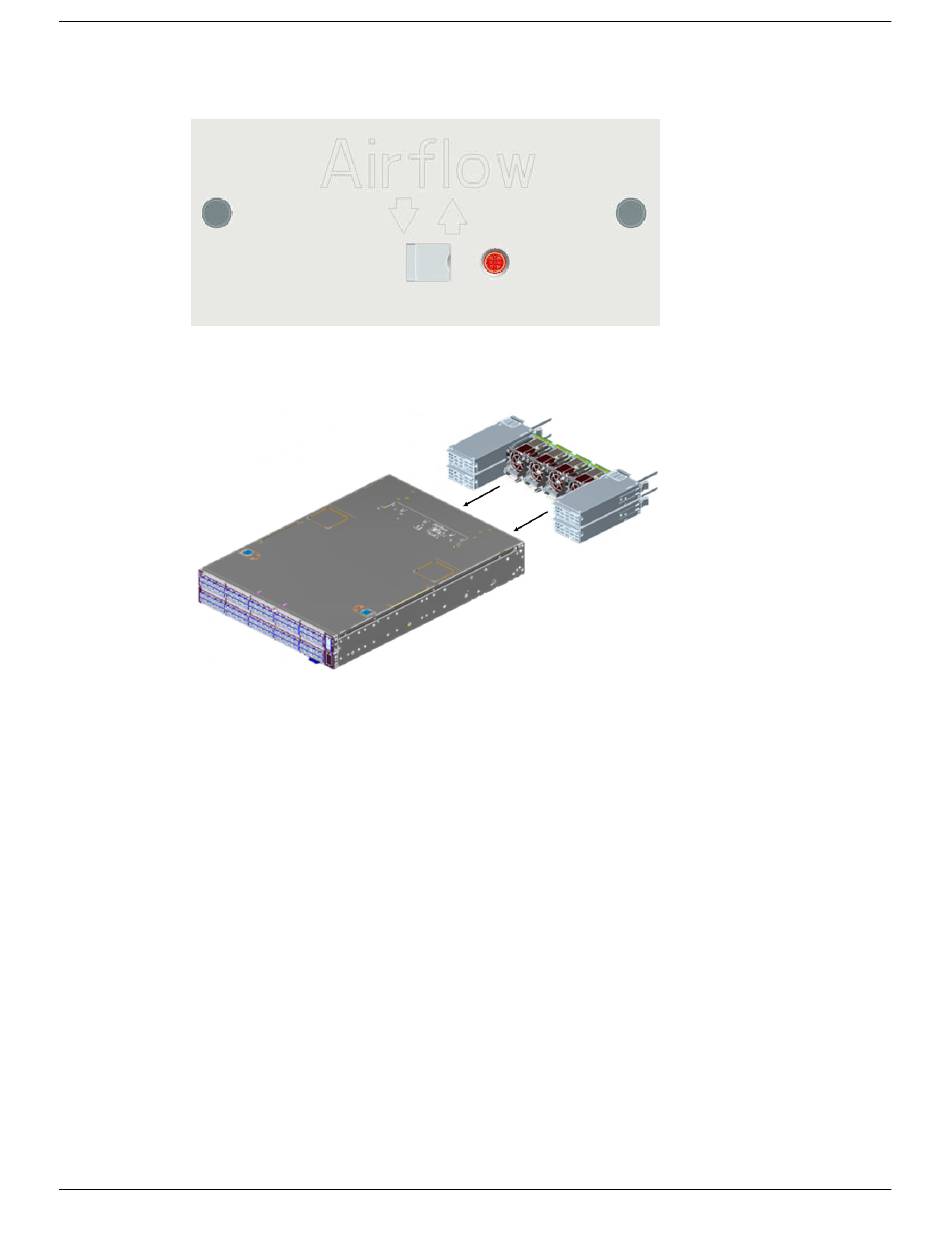

Figure 42: Chassis screw back-to-front position
5. Carefully slide the PSUs and fan modules back into the switch:
Figure 43: Remove PSUs and fan modules
6. Tighten the two captive retaining screws to secure the components.
ExtremeRouting SLX 9740 Hardware Installation Guide
Changing Airflow Direction
77
