Summary of Contents for Sirona HELIODENT DS

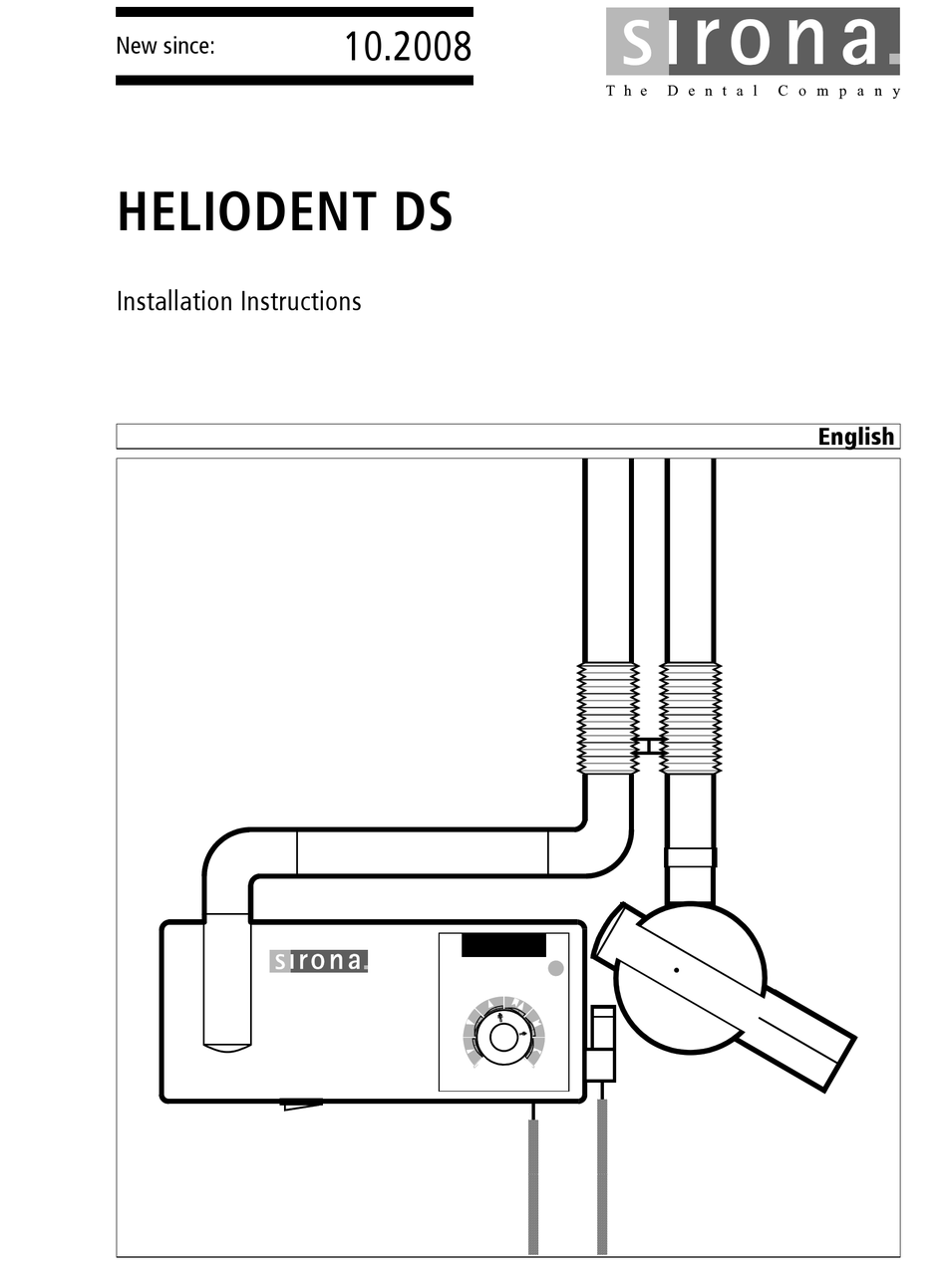

  • Page 1 NMKOMMU kÉï=ëáåÅÉW ebiflabkq=ap fåëí~ää~íáçå=fåëíêìÅíáçåë båÖäáëÜ...

  • Page 2: Table Of Contents

    Sirona Dental Systems GmbH ATTENTION ATTENTION Interference with electromedical devices by radio When opening the equipment: telephones: Please observe the safety measures To guarantee the operational safety of electro- for handling PC boards. medical devices, the operation of mobile radio tel-...

  • Page 3: Installation Options

    HELIODENT DS with remote control outside of X-ray room and security button, removable or not removable manual release. Heliodent DS with remote timer outside of X-ray room. 60 81 785 D 3302 D 3302.031.01.28.02...

  • Page 4: Required Installation Hardware

    2 Required Installation hardware Sirona Dental Systems GmbH Required Installation hardware 3600N L ≤ 700mm 4200N L = 950mm Installation hardware 46 82 162 3600N L ≤ 700mm 4200N L = 950mm For the installation, the service engineer is responsible...

  • Page 5: Installing The Wall Adapter

    Sirona Dental Systems GmbH 3 Installing the Wall Adapter Installing the Wall Adapter Not for wood! 13mm Mounting hardware Switch OFF power from the main switch for the electri- Draw the power cable through opening A. (For Ceiling cal installation.

  • Page 6: Installing The Support Arm

    If necessary, loosen the bearing attachment and insert compensating angle A beneath. NOTE for USA/Canada only When using a HELIODENT DS for two X-ray chambers both stop pins C can be removed to swing the support arm around (not for travel stand!).

  • Page 7: Electrical Connection

    Insert generator board DX1 on the spacer. NOTE To establish a ground connection, screw on the The Heliodent DS wall model is suited for fixed connection only. „D“ generator board DX1 with the two bolts With travel stand, cut off wire as short as possible.
  • Page 8 5 Electrical Connection Sirona Dental Systems GmbH Exposure Button Door Contact or Security Switch (remove jumper) Remote Station Exposure Light ONLY green yellow Exposure Button brown white Without remote control: 11. Attach the shielding plate with the Allen screw to the in- Attach the shielding for the spiral cable with a cable stallation plate.

  • Page 9: Installing The X-Ray Tube Unit

    Sirona Dental Systems GmbH 6 Installing the X-ray Tube Unit Installing the X-ray Tube Unit <2Ω 12’’ 12’’ Firmly hold the X-ray tube unit. Fit plug K1 together. place) and turn until it engages. Insert the cylindrical pin A in the hole of the holder and Insert the radiation limiter in the 12”...

  • Page 10: Starting-Up, Measurements And Controls (For Usa/Canada Only)

    To assure that the HELIODENT system performance is in Digital multimeter Fluke 8000 A, Philips PM 2816 rms or equivalent. accordance with Sirona specifications, an adequate power supply is essential. The Federal Performance Standard for diagnostic X-ray units, code of Federal Regulations, title 21 CFR, subchap- ter J, mandates an adequate power supply.
  • Page 11 Sirona Dental Systems GmbH 7 Starting-Up, Measurements and Controls (for USA/Canada only) ATTENTION CAUTION with PC - Boards! All PC-boards are fitted with electronic components sensi- tive to electrostatic discharge (ESD). In an environment of moving people electrostatic charges are unavoidable due to friction of clothing, carpeting etc.
  • Page 12 7 Starting-Up, Measurements and Controls (for USA/Canada only) Sirona Dental Systems GmbH for USA/Canada only Line voltage Set the multimeter to AC voltage, range depending on the local nominal line voltage. Turn ON power supply at the central distribution panel.
  • Page 13 Sirona Dental Systems GmbH 7 Starting-Up, Measurements and Controls (for USA/Canada only) for USA/Canada only Power supply adequacy – voltage drop Attach object selector switch temporarily to the rotary The maximum permissible voltage drop must not exceed switch shaft on DX4. Switch ON unit (see Operating 5.0VAC in the exposure range given.
  • Page 14 7 Starting-Up, Measurements and Controls (for USA/Canada only) Sirona Dental Systems GmbH for USA/Canada only 540mVDC tolerance ±200mVDC Measure voltage at X3 • Adjust the voltmeter in the 2V measuring range. • The DX1 is automatically aligned to the tube assembly.
  • Page 15 Sirona Dental Systems GmbH 7 Starting-Up, Measurements and Controls (for USA/Canada only) for USA/Canada only Tube Current Verification • Turn unit OFF. • Remove jumper from test points DX1.X6/X7. • Connect multimeter to X6+/ X7 –, range 10mADC. • Turn unit ON.
  • Page 16 7 Starting-Up, Measurements and Controls (for USA/Canada only) Sirona Dental Systems GmbH for USA/Canada only Exposure Time Verification (conventional radiography technique) • For testing the exposure times a mechanical pulse Exposure time 0.4s: counter is needed. – at 60Hz: 24 pulses Tolerance±1 pulse,...

  • Page 17: Startup

    K2 for the Centro column and the Switch ON the unit, an acoustical signal sounds briefly. Split Concept. The voltage measured (on terminal Preparing the Exposure (see the HELIODENT DS Op- X10 or K2) will be lower than the value measured erating Instructions).
  • Page 18 For the following tests, observe the radiation protection Interrupt the exposure. guidelines in the Operating Instructions. Select 3.2s exposure time (see HELIODENT DS Operating Instructions, Adapting the Base Value) Check X-radiation Press the exposure button until the radiation indicator Place a luminous film.

  • Page 19: Concluding Work

    Sirona Dental Systems GmbH 9 Concluding Work Concluding Work Insert the cable bush (for remote control: cable with knot) the slot C. – Run the protective ground wire to the cover. – Set on the cover. – Option Ceiling Version / Centro Column / Split Con- cept: place cap A into the cover.
  • Page 20 9 Concluding Work Sirona Dental Systems GmbH for USA/Canada only Light Indicators at the Display, Audible Sound at the Wall Adapter (for USA/Canada only) • Switch unit ON with master power switch. • Interrupt an exposure – deadman feature: Set the exposure time to 3.2 s.
  • Page 21 Sirona Dental Systems GmbH 9 Concluding Work Switch ON the unit (see the HELIODENT DS Operating In- structions, Preparing the Exposure) Check perfect operation of the changeover button D. The displays of the exposure time, Digital and LED, must be easily visible.

  • Page 22: Setting The Intraoral Sensor Type

    10 Setting the Intraoral Sensor Type Sirona Dental Systems GmbH 10 Setting the Intraoral Sensor Type • With digital aquisition it is possible to switch over be- tween the Intraoral Sensor types 0.0.2 „Intraoral II (Full Size / Universal)” and 0.0.I...

  • Page 23: Install Travel Stand

    Sirona Dental Systems GmbH 11 Install travel stand 11 Install travel stand Attach the two rods A to base B using two screws and spring washers. Insert the rods in the rectangular tube and attach them to base C by means of two screws and spring washers.

  • Page 24: Attention Installer! (For Usa, Canada Only)

    12 ATTENTION INSTALLER! (for USA, Canada only) Sirona Dental Systems GmbH 12 ATTENTION INSTALLER! (for USA, Canada only) • Proper shielding of room and operator position is es- sential. Since these requirements vary from state to state it is the assembler's / installer's responsibility that all local radiation safety requirements are met.

  • Page 25: Sample Of A Filled Out Form (For Usa/Canada Only)

    Sirona Dental Systems GmbH 13 Sample of a Filled out Form (for USA/Canada only) 13 Sample of a Filled out Form (for USA/Canada only) 60 81 785 D 3302 D 3302.031.01.28.02...
  • Page 26 tÉ=êÉëÉêîÉ=íÜÉ=êáÖÜí=íç=ã~âÉ=~åó=~äíÉê~íáçåë=ïÜáÅÜ=ã~ó=ÄÉ=êÉèìáêÉÇ=ÇìÉ=íç=íÉÅÜåáÅ~ä=áãéêçîÉãÉåíëK péê~ÅÜÉW=ÉåÖäáëÅÜ= mêáåíÉÇ=áå=dÉêã~åó a=PPMOKMPNKMNKOUKMO===NMKOMMU ûKJkêKW= NNM=SMU fãéêáã¨=Éå=^ääÉã~ÖåÉ páêçå~=aÉåí~ä=póëíÉãë=dãÄe áå=íÜÉ=rp^W SM=UN=TUR=a=PPMO c~Äêáâëíê~≈É=PN páêçå~=aÉåí~ä=póëíÉãë=ii` lêÇÉê=kç SQSOR=_ÉåëÜÉáã QUPR=páêçå~=aêáîÉI=pìáíÉ=NMM dÉêã~åó `Ü~êäçííÉI=k`=OUOTP ïïïKëáêçå~KÅçã...
