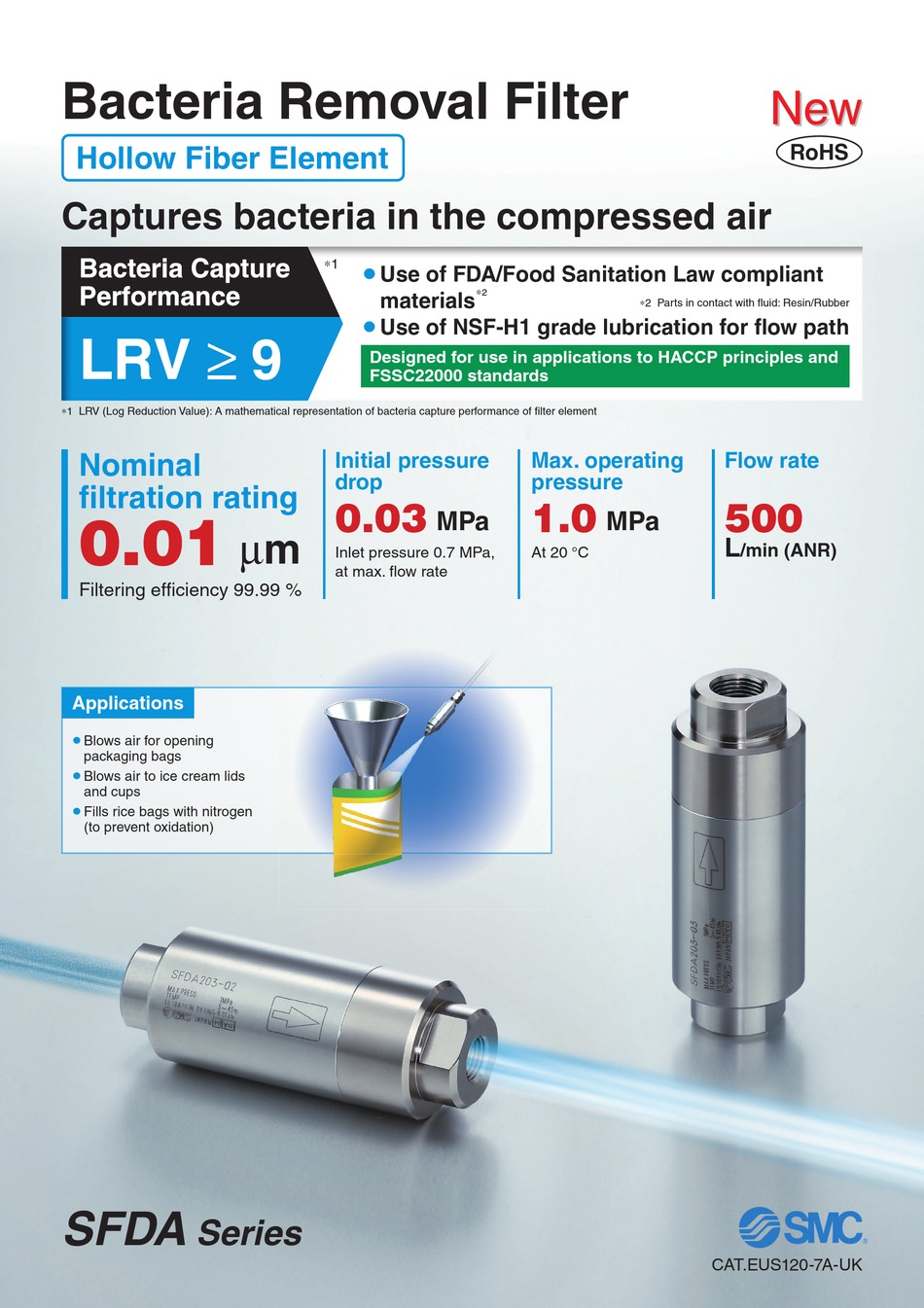

Bacteria Removal Filter
Hollow Fiber Element
Captures bacteria in the compressed air
∗1 LRV (Log Reduction Value): A mathematical representation of bacteria capture performance of filter element
Nominal
fi ltration rating
0.01
Filtering effi ciency 99.99 %
Applications
¡
Blows air for opening
packaging bags
¡
Blows air to ice cream lids
and cups
¡
Fills rice bags with nitrogen
(to prevent oxidation)
SFDA
Series
∗1
¡
Use of FDA/Food Sanitation Law compliant
materials
¡Use of NSF-H1 grade lubrication for fl ow path
Designed for use in applications to HACCP principles and
FSSC22000 standards
Initial pressure
drop
0.03
μm
Inlet pressure 0.7 MPa,
at max. fl ow rate
∗
2
Max. operating
pressure
1.0
MPa
MPa
At 20 °C
New
New
RoHS
∗2 Parts in contact with fl uid: Resin/Rubber
Flow rate
500
L
/min (ANR)
CAT.EUS120-7A-UK
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SMC Networks SFDA Series
Summary of Contents for SMC Networks SFDA Series
- Page 1 Bacteria Removal Filter RoHS Hollow Fiber Element Captures bacteria in the compressed air ∗1 ¡ Use of FDA/Food Sanitation Law compliant ∗ materials ∗2 Parts in contact with fl uid: Resin/Rubber ¡Use of NSF-H1 grade lubrication for fl ow path Designed for use in applications to HACCP principles and FSSC22000 standards ∗1 LRV (Log Reduction Value): A mathematical representation of bacteria capture performance of filter element...
- Page 2 Bacteria Removal Filter Hollow Fiber Element SFDA Series RoHS How to Order SFDA 2 0 3 Bacteria Removal Filter Port size (Bacteria removal performance LRV ≥ 9) Symbol Size Size ∗ The bracket is equipped as Symbol Max. fl ow rate standard.
- Page 3 SFDA Series Bacteria Removal Filter Hollow Fiber Element Flow Rate Characteristics SFDA203- , -N , -F 0.04 0.1 MPa 0.3 MPa 0.5 MPa 0.7 MPa 0.03 Max. flow rate line 0.02 0.9 MPa 0.01 Flow rate [L/min (ANR)] Construction SFDA203-02/03 Component Parts Replacement Parts Description...
-
Page 4: Specifi C Product Precautions
· Solid foreign matter such as rust and/or oil in the piping 1) The SFDA series is not compatible with compressed air Mounting which contains fl uids such as water and/or oil. -
Page 5: Maintenance
SFDA Series Specifi c Product Precautions 2 Be sure to read this before handling the products. Refer to the back cover for safety instructions. For air preparation equipment precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Piping Operating Environment Caution... -
Page 7: Safety Instructions
These safety instructions are intended to prevent hazardous situations and/or equipment Safety Instructions damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations. - Page 8 SMC Corporation (Europe) +43 (0)2262622800 www.smc.at offi ce@smc.at +370 5 2308118 www.smclt.lt info@smclt.lt Austria Lithuania +32 (0)33551464 www.smc.be info@smc.be Netherlands +31 (0)205318888 www.smc.nl info@smc.nl Belgium +359 (0)2807670 www.smc.bg offi ce@smc.bg +47 67129020 www.smc-norge.no post@smc-norge.no Bulgaria Norway +385 (0)13707288 www.smc.hr offi ce@smc.hr +48 222119600 www.smc.pl offi...
