Ipevo VZ-1 HD Quick Start Manual

Quick Start Guide
For
VGA / USB Document Camera
Congratulations on your purchase of the VZ-1 HD VGA /USB
Document Camera. This Quick Start Guide is intended to
help you begin using the camera right away.
Contents
Your package should contain the following:
• VZ-1 HD Document Camera, including multi-jointed swing arm
• USB A-to-B cable
• USB power adapter with detachable plugs
(Power Adapter plug may very depending on region)
• Quick Start Guide (this document)

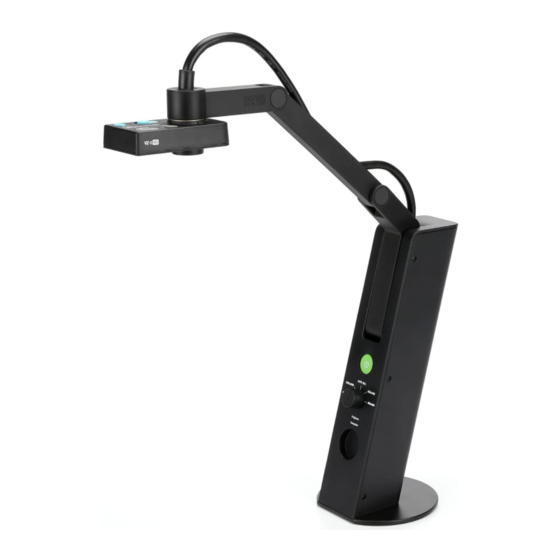

VZ-1 HD Document Camera
USB Power Adapter and Plugs
USB A-to-B Cable
Quick Start Guide
Quick Start Guide

The Basics

VZ-1 HD captures a variety of subjects—including standard
letter-sized documents, devices like smartphones and Apple's
iPad, 3D objects, and even A3-sized documents and
larger—and presents a live video image in one of several
possible resolutions.
Your VZ-1 HD document camera has two modes and can be
connected directly to a projector or monitor via VGA, or to a
computer (PC or Mac) via USB.
Connect the USB cable to the USB power adapter and plug the
VGA cable from your projector or monitor to VZ-1 HD's VGA
port for straight live image projection on your big screen, or
unplug the USB cable from the USB power adapter and
connect to a computer to turn the VZ-1 HD into a USB
document camera.
The multi-jointed, weighted stand allows you to quickly and
easily change the height and position of the camera to suit
your subject.
For Large Area
Additionally, the camera head can swivel with 270° of
freedom to customize your orientation.
For Close-Ups
