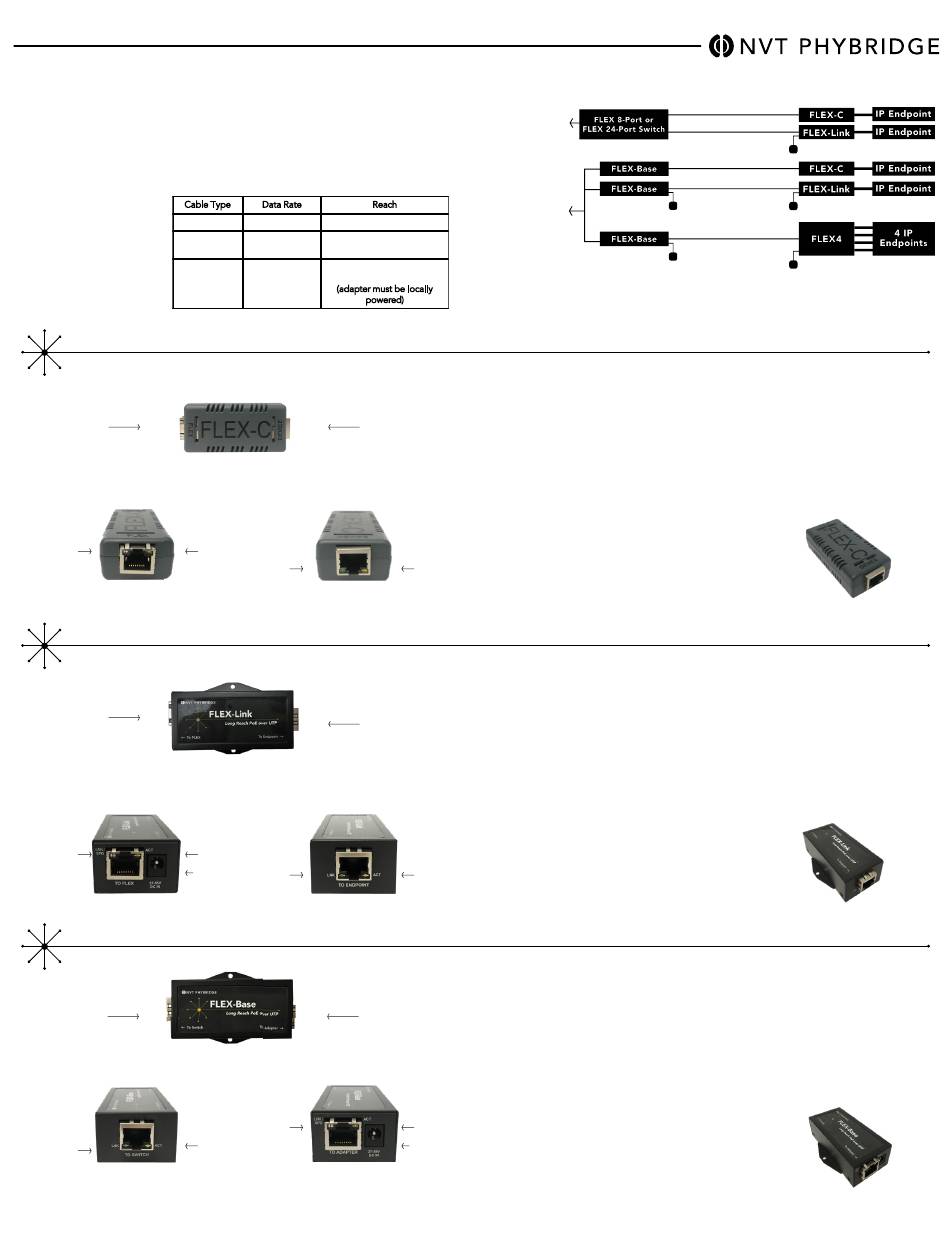

NVT Phybridge FLEX-Link Quick Install Manual

Q UI CK I N S TA L L G U I D E - F L E X A D A PTE RS
The FLEX-Link and FLEX-C adapters enable extended Ethernet and PoE reach
beyond traditional distances using 1, 2 or 4 pair UTP infrastructure. The
adapters, when used with the FLEX Switch or FLEX-Base, deliver 10/100Mbps
(symmetrical, full duplex) and PoE (up to 50W) over 1- (needs local power), 2-,
or 4-pair UTP/STP with up to 2,000ft (610m) reach The FLEX offering is
designed specifically to enable easy deployment over UTP for reaches beyond
that of standard Ethernet eliminating the costs and disruption associated with
IDF closet requirements.
1 RJ 45 port: UT P c able (2 -pair or 4 -pai r)
The FLEX adapters are
extremely simple to use with
Cable Type
no IP or MAC address
4 pair CAT5e
configuration required.
2 pair CAT5e
Status LEDs indicate power
and link connectivity/activity
1 pair CAT5e
for RJ45 ports.
NOTE: Please see page 2 for
Safety Warnings and Precautions
FL EX- C
To FL EX
To F L EX
Link / Speed
Gree n :
100M bp s
Orang e :
10M bp s
FL EX- Li nk
To FL EX
To F L EX
Link / Speed
Gree n :
100M bp s
Orang e :
10M bp s
FL EX- Ba s e
To Sw itc h
To S w it ch
L i n k
888.901.3633 | +44 (0) 208 977 6614 | www.nvtphybridge.com
Data Rate Reach
100Mbps 2,000ft / 610m
100Mbps 1,000ft / 300m
10Mbps 2,000ft / 610m
100Mbps 1,000ft / 300m
10Mbps 2,000ft / 610m
(adapter must be locally
powered)
To D ev i c e
To D ev i c e
A ct i vi t y
Link
To E ndpoi nt
To E nd p o in t
A ct i vi t y
3 7- 55V D C I n Link
To A d a pt er
To Ad ap t e r
L in k/ Speed
Green:
100M bps
O r ange:
A ct i vi t y
10M bps
10/100 Mbps (full duplex, symmetrical) & PoE++ over multi-pair UTP with 2,000ft (610M) reach.
To Application
To Switch
NOTE: FLEX-Link max. power 50W over 4 pairs and FLEX-C maximum power 30W over 2 pairs
In s t a l la t io n D e t a i ls
1. Remove the FLEX-C from its packaging.
2. Remove all legacy equipment from the UTP cable infrastructure.
NOTE: In order to avoid damage to endpoints, it is important that non-IP devices are
not connected when you connect the FLEX-C.
3. Connect the Network Infrastructure cable from the FLEX24 switch or
FLEX-Base to the FLEX-C (FLEX side).
4. Using CAT5 or higher category cable, connect the endpoint to FLEX-C
(Device side).
NOTE: FLEX-C can be used with FLEX24 switch or FLEX-Base
P ro d uc t D et a il s
Paired with FLEX24, FLEX8 or FLEX-Base
•
Up to 30W PoE
•
Act iv it y
PoE on spare pairs
•
Supports IEEE compliant devices
•
In s t a l la t io n D e t a i ls

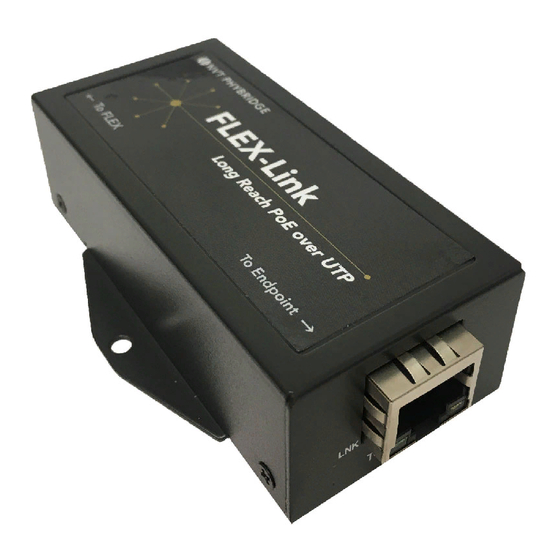

1. Remove the FLEX-Link from its packaging.
2. Remove all legacy equipment from the UTP cable infrastructure.
NOTE: In order to avoid damage to endpoints, it is important that non-IP devices are
not connected when you connect the FLEX-Link.
3. Connect the Network Infrastructure cable from the FLEX24 switch or
FLEX-Base to the FLEX-Link (FLEX side).
4. Using CAT5 or higher category cable, connect the endpoint to the FLEX-Link
(Endpoint side).
NOTE: FLEX-Link can be used with FLEX24 switch or FLEX-Base
P ro d uc t D et a il s
Paired with FLEX24, FLEX8 or FLEX-Base
•
Up to 50W PoE
•
PoE on 4 pairs
•
Act iv it y
Local power option
•
IEEE compliant
•
In s t a l la t io n D e t a i ls
1. Remove the FLEX-Base from its packaging.
2. Remove all legacy equipment from the UTP cable infrastructure.
NOTE: In order to avoid damage to endpoints, it is important that non-IP devices are
not connected when you connect the FLEX-Base.
3. Connect FLEX-Base (Switch side) to downlink port on switch.
4.
Connect the Network Infrastructure cable from the FLEX-Base (Adapter side) to
FLEX-Link or FLEX-C
5. Using CAT5 or higher category cable, connect the endpoint to the FLEX-Link
or FLEX-C (Endpoint/Device side).
NOTE: FLEX-Base can be used with FLEX-Link or FLEX-C
P ro d uc t D et a il s
Act iv it y
Paired with FLEX-Link or FLEX4
•
3 7 - 5 5 V DC I n
Up to 50W PoE
•
Local power option
•
IEEE compliant
•
F L E X A d a p t e r A p p l ic a t i o ns
2 or 4 pair UTP
2 or 4 pair UTP
Local Power Option
2 or 4 pair UTP
Local Power Option
(N V-FL X L K-C )
(N V-FL X L K)
.
(FLEX side)
(N V-FL X L K-B a s e)
Copyright 2018 NVT Phybridge | 413-0003-A | Page 1
Local Power Option
Local Power Option
Local Power Option
