NVT Phybridge FLEX-Base Quick Install Manual

Q U I CK I NS TA L L G U I D E - F L EX EXT EN D E R K I T
The FLEX Extender Kits are robust, long reach single port UTP solutions. The kit
includes a FLEX-Base, a FLEX-Link or FLEX4 adapter and a 60 Watt or 110 Watt 55V
power supply. The FLEX-Link and FLEX4, when connected to the FLEX-Base unit via
2 or 4 pair UTP can deliver 100Mbps (symmetrical full duplex) with up to 50 watts of
power with 2,000ft (610m) reach. The FLEX offering is designed specifically to
enable easy deployment over UTP for reaches beyond that of standard Ethernet
eliminating the costs and disruption associated with IDF closet requirements.
P ROD U C T OV ERV IE W
FLEX Extender Kit (FLEX-Link+ FLEX-Base + 60W, 55V Power Supply)
P/N: NV-FLXLK-XKIT
FLEX-Base
To Switch
Local Power
Up to 60W, 55V
(Optional)
To S wit ch
Link A c t i v i t y
Pro d u c t D e t a i l s
(N V-FLX LK - Bas e)
Paired with FLEX-Link or FLEX4
•
Up to 50W PoE
•
Local power option
•
IEEE compliant
•
FLEX Extender Kit (FLEX4 + FLEX-Base + 110W, 55V Power Supply)
P/N: NV-FLX-04-XKIT
To Switch
Local Power
Up to 60W, 55V
(Optional)
To S wit ch
Link A c t i v i t y
Pro d u c t D e t a i l s
( N V-FLX LK - Bas e)
Paired with FLEX-Link or FLEX4
•
Up to 50W PoE
•
Local power option
•
IEEE compliant
•
I N STALLAT I ON STE P S
1. Remove the FLEX-Base and FLEX-Link/FLEX4 from packaging.
2. Must ensure cable is properly terminated before connecting any FLEX product.
3. Remove all legacy equipment from the UTP cable infrastructure.
NOTE: In order to avoid damage to endpoints, it is important that non-IP devices are not connected when you connect the FLEX-Base.
4. Connect FLEX-Base (Switch side) to downlink port on switch.
5. Connect the Network Infrastructure cable from the FLEX-Base (LRE side) to FLEX-Link/FLEX4 (LRE side).
6. Using CAT5 or higher category cable, connect the endpoint to the FLEX-Link/FLEX4 (Endpoint side).
888.901.3633 | +44 (0) 208 977 6614 | www.nvtphybridge.com

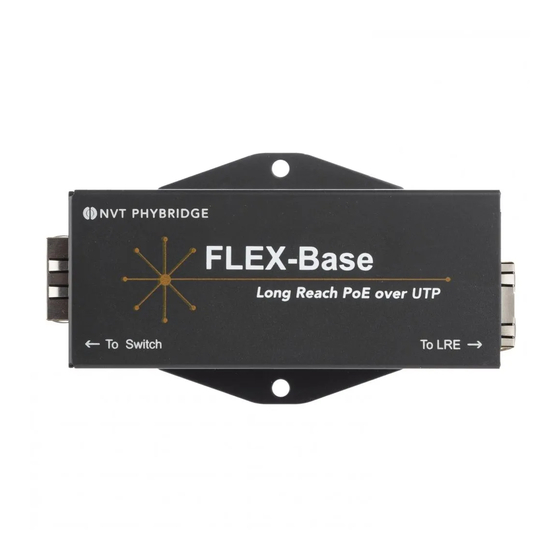

FLEX-Base
Long Reach PoE over UTP
To LR E
L ink
To ggl e s w i t ch a l l ow s
o pt i on b etw e en
100M bp s (Gree n) or
10M bp s ( Or a nge)
FLEX-Base
FLEX-Base
Long Reach PoE over UTP
To LR E
L ink
To ggl e s w i t ch a l l ow s
o pt i on b etw e en
100M bp s (Gree n) or
10M bp s ( Or a nge)
(FOR NV-F LXLK -X K IT OR NV- FLX- 04 -XKI T E XTEN D E R KITS )
F L E X- B a s e
PoE over 2 or 4 Pair
UTP to 2,000ft (610m)
Local Power
Up to 60W, 55V
(Optional)
To LR E
L ink/ Sp eed
Green:
1 0 0 M bps
Act iv it y
Orang e:
1 0 M bps
3 7 - 5 5 V D C I n
Pro d u ct D e t a il s
Paired with FLEX24, FLEX8 or FLEX-Base
•
Up to 50W PoE
•
PoE on 4 pairs
•
Local power option
•
IEEE compliant
•
NOTE: FLEX-Link can be used with FLEX24 switch or FLEX-Base
PoE over 2 or 4 Pair
UTP to 2,000ft (610m)
Local Power
Up to 110W, 55V
(Optional)
Speed
Green:
1 0 0 M bps
O range:
1 0 M bps
Act iv it y
Note: The bandwidth speed shared by the four ports ("To Endpoint") can be determined by looking at the
3 7 - 5 5 V D C I n
LED indicators on the RJ45 connector ("To LRE"). If the left side green LED activates, the bandwidth available
is 100Mbps. If the right side orange LED activates, the bandwidth speed available is 10Mbps.
Pro d u ct D e t a il s
Paired with FLEX-Base, FLEX8, FLEX24
•
1 uplink port and 4 downlink ports
•
Max 30W per downlink port
•
Supports IEEE compliant devices
•
Can be locally powered for additional PoE delivery
•
F LE X - Li n k
NOTE: Please see page 2 for important safety instructions
FLEX-Link
FLEX-Link
Long Reach PoE over UTP
Ac t ivi t y
Li nk
3 7 - 5 5 V D C In
(NV-FL X L K)
FLEX4
FLEX4
Long Reach PoE over UTP
To L RE
1 0 /ACT
(N V-FL X -04)
Copyright 2018 NVT Phybridge | 413-0004-B | Page 1
F L EX4
IP
Endpoint
To Endp o int
A c t iv ity
4 IP
Endpoints
To E nd po int
1 0 0 / A CT
