NVT Phybridge FLEX-Link Quick Start Manual

FLEX-Link Adapter Applications

The FLEX-Link adapter enables extended Ethernet and PoE reach beyond traditional
distances using 1, 2 or 4 pair UTP infrastructure. When paired with the FLEX24 Switch, FLEX8
Switch or FLEX-Base Extender, the adapter delivers 10/100Mbps, symmetrical full duplex.
The FLEX offering is designed specifically to enable easy deployment over Multi-Pair UTP for
reaches beyond that of standard Ethernet eliminating the costs and disruption associated
with IDF closet requirements.
10/100Mbps (full duplex, symmetrical) & PoE++ over multi-pair UTP with 2,000ft (610M) reach.
NV-FLX-024/NV-FLX-08
1
RUN
ALARM
FAULT
Reset 2
To Application
Standard PoE Switch
SFP 1 SFP+1 45 37 41 39 33 35 3 5 1 9 11 7 25 19 47 23 21 13 17 15 27 29 31 43
SFP 2 SFP+2 38 42 40 32 16 44 30 28 20 24 22 18 46 48 26 4 6 2 10 34 36 12 8 14
*Base Extender can be powered locally for use with non-PoE switches.

FLEX-Link Quick Install Guide

(Long Reach Ethernet)
Link/Speed
Green:
100Mbps
Orange:
10Mbps
LNK/SPD
1. Remove the FLEX-Link from its packaging.
2. Must ensure cable is properly terminated before connecting any FLEX product.
3. Remove all legacy equipment from the UTP cable infrastructure.
NOTE: In order to avoid damage to endpoints, it is important that non-IP devices are not
connected when you connect the FLEX-Link.
4. Connect the Network Infrastructure cable from the FLEX24 switch, FLEX8 switch or
FLEX-Base to the FLEX-Link (LRE side).
5. Using CAT5 or higher category cable, connect the endpoint to the FLEX-Link (Endpoint
side).
NOTE: FLEX-Link can be used with FLEX24 switch, FLEX8 switch or FLEX-Base
888.901.3633 | +44 (0) 208 977 6614
www.nvtphybridge.com

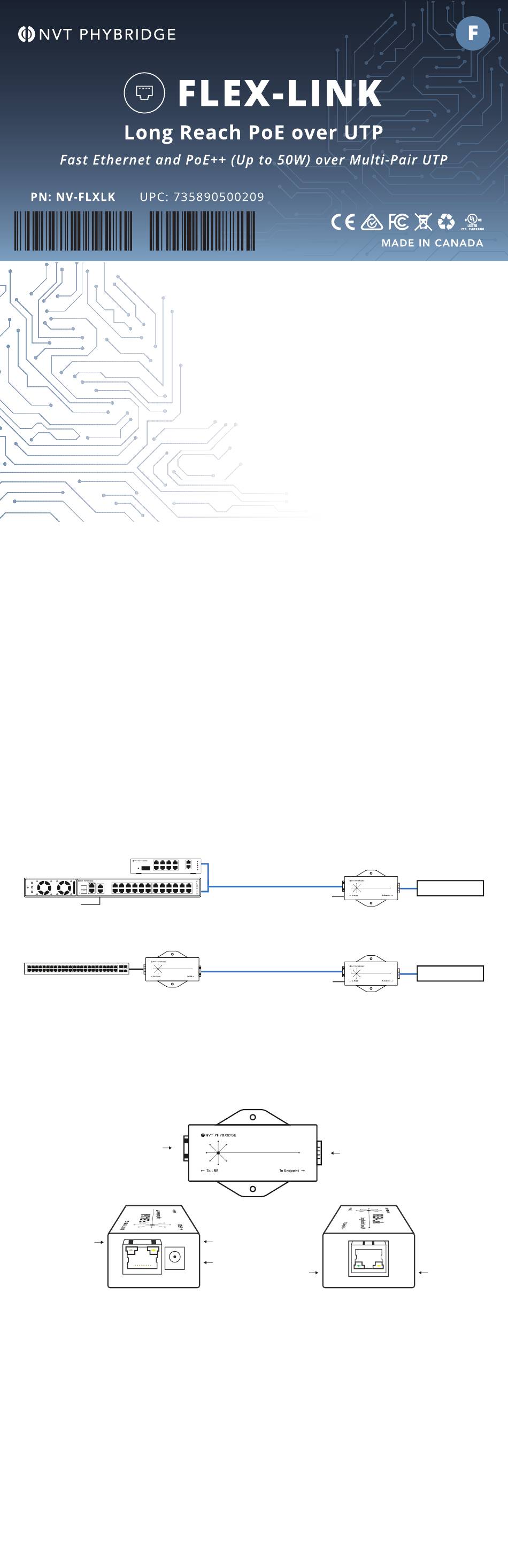

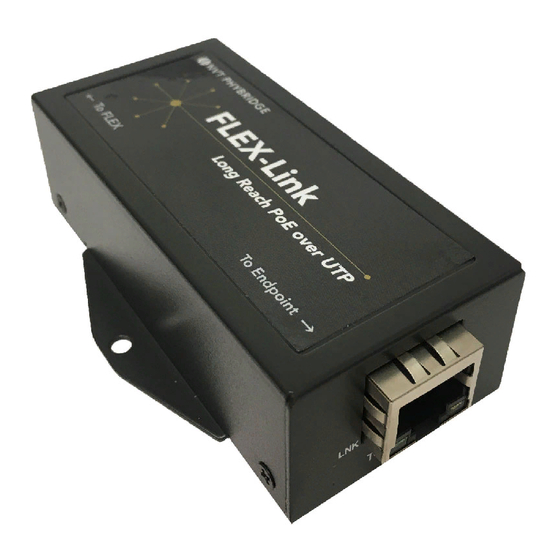

FLEX-Link
• Paired with FLEX24, FLEX8 or FLEX-Base
• Up to 50W PoE
• PoE mode A, mode B and 4-pair mode
• Local power option
• IEEE compliant
WE
1 2 3 4 5 6 7 8
3 5 7 9 11 13 15 17 19 21 23
4 6 8 10 12 14 16 18 20 22 24
NV-FLXLK-BSE
*
FLEX-Base
Long Reach PoE over UTP
To LRE
Activity
37-55V
DC IN
37-55V
ACT
DC IN
TO LRE
(NV-FLXLK)
Multi-Pair UTP Cable
up to 2,000ft (610m)
Local Power Option
Multi-Pair UTP Cable
up to 2,000ft (610m)
Local Power Option
FLEX-Link
Long Reach PoE over UTP
Link
NV-FLXLK
IP ENDPOINT
FLEX-Link
Long Reach PoE over UTP
NV-FLXLK
IP ENDPOINT
FLEX-Link
Long Reach PoE over UTP
To Endpoint
LNK ACT
Activity
TO ENDPOINT
Copyright 2019 NVT Phybridge
445-0020-A
