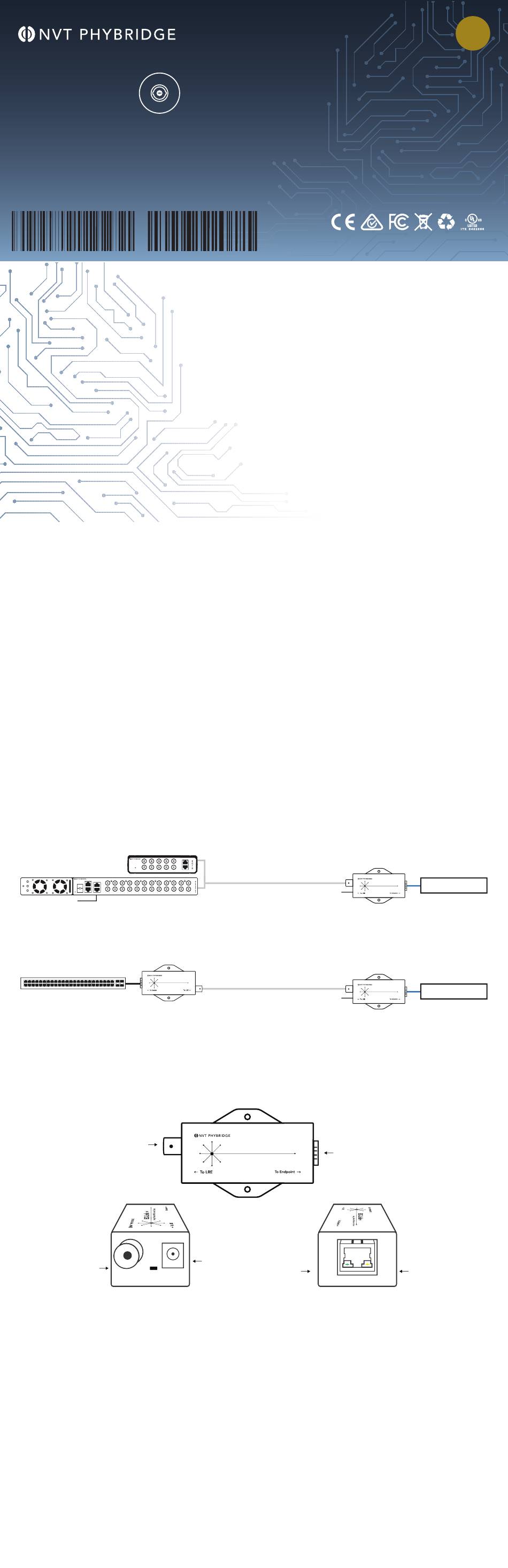

NVT Phybridge EC-LINK+ Quick Start Manual

Fast Ethernet and PoE++ (Up to 50W) over Coax
PN: NV-ECLK-PLS

EC-Link+ Adapter Applications

The EC-Link+ Adapter enables extended Ethernet and PoE reach beyond traditional
distances using Coax infrastructure. When paired with the CLEER24 Switch, EC10 Switch or
EC-Base Extender, the Adapter delivers 10/100 Mbps, symmetrical full duplex. The EC
offering is designed specifically to enable easy deployment over Coax for reaches beyond
that of standard Ethernet eliminating the costs and disruption associated with IDF closet
requirements.
10/100 Mbps (full duplex, symmetrical) & PoE+ over Coax with up to 6,000ft (1,830m) reach.
NV-CLR-024/NV-EC-10
1 3
RUN
2 4
ALARM
FAULT
Reset 1 2 3 4
To Application
Standard PoE Switch
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47 SFP+1
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 SFP+2
*Base Extender can be powered locally for use with non-PoE switches.
EC-Link+ Quick Install Guide
To LRE
Link/Speed
Green:
100Mbps
Orange:
10Mbps
1. Remove the EC-Link+ from its packaging.
2. Must ensure cable is properly terminated before connecting any EC product.
3. Remove all legacy equipment from the Coax cable infrastructure.
NOTE: In order to avoid damage to endpoints, it is important that non-IP devices are
not connected when you connect the EC-Link+.
4. Connect the Network Infrastructure cable from the CLEER24 switch, EC10 switch, or
EC-Base to the EC-Link+ (LRE side).
5. Using CAT5 or higher category cable, connect the endpoint to EC-Link+ (Endpoint side).
888.901.3633 | +44 (0) 208 977 6614
www.nvtphybridge.com
EC-LINK+
Long Reach PoE over Coax
UPC: 735890500162
EC-Link+
• Paired with CLEER24, EC10 or EC-Base
• Up to 50W PoE on 4-pairs
• Local power option
• IEEE compliant
GBE 1
1 3 5 7 9
GBE 2
POWER 2 4 6 8 10
5 7 9 11 13 15 17 19 21 23
6 8 10 12 14 16 18 20 22 24
5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
NV-ECLK-BSE
*
EC-Base
SFP 1
Long Reach PoE over Coax
SFP 2
DC IN
37-55V
SPD
DC IN
TO LRE 37-55V
100 GR 10 OR
(NV-ECLK-PLS)
Coax Cable
up to 6,000ft (1,830m)
Local Power Option
Coax Cable
up to 6,000ft (1,830m)
Local Power Option
EC-Link+
Long Reach PoE over Coax
Link
MADE IN CANADA
NV-ECLK-PLS
IP ENDPOINT
EC-Link +
Long Reach PoE over Coax
NV-ECLK-PLS
IP ENDPOINT
+
EC-Link
Long Reach PoE over Coax
To Endpoint
Activity
LNK TO ENDPOINT ACT
Copyright 2019 NVT Phybridge
