NVT Phybridge EC-Link Quick Start Manual

NVT Phybridge EC-Link Quick Start Manual

Long reach poe over coax

Advertisement

Fast Ethernet and PoE+ (Up to 30W) over Coax
PN: NV-ECLK

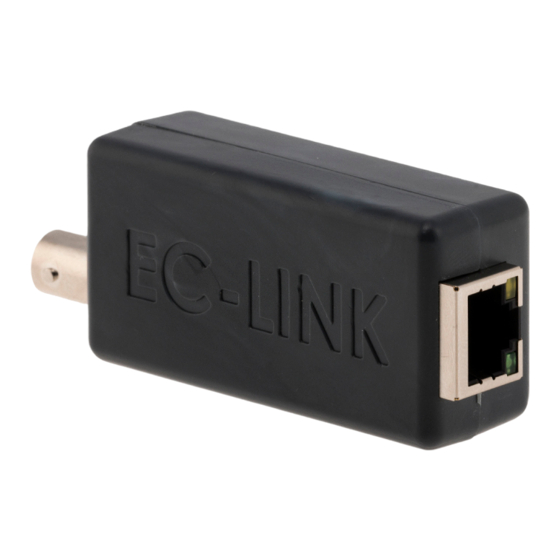

EC-Link Adapter Applications

The EC-Link Adapter enables extended Ethernet and PoE reach beyond traditional
distances using Coax infrastructure. When paired with the CLEER24 Switch, EC10 Switch or
EC-Base Extender, the Adapter delivers 10/100 Mbps, symmetrical full duplex. The EC
offering is designed specifically to enable easy deployment over Coax for reaches beyond
that of standard Ethernet eliminating the costs and disruption associated with IDF closet
requirements.
10/100 Mbps (full duplex, symmetrical) & PoE+ over Coax with up to 4,000ft (1,220m) reach.
NV-CLR-024/NV-EC-10
1
3
RUN
2
4
ALARM
FAULT
Reset
1
2
3
4
To Application
Standard PoE Switch
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
SFP+1
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
SFP+2
*Base Extender can be powered locally for use with non-PoE switches.

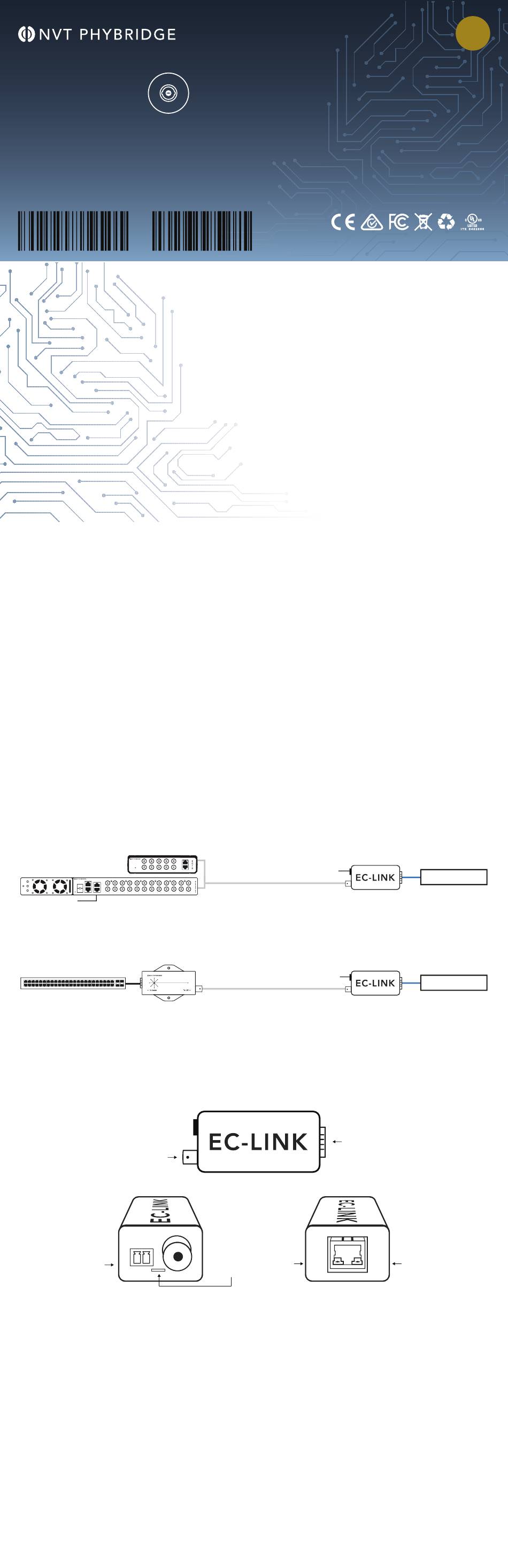

EC-Link Quick Install Guide
37-55V
DC IN
1. Remove the EC-Link from its packaging.
2. Must ensure cable is properly terminated before connecting any EC product.
3. Remove all legacy equipment from the Coax cable infrastructure.
NOTE: In order to avoid damage to endpoints, it is important that non-IP devices are not
connected when you connect the EC-Link.
4. Connect the Network Infrastructure cable from the CLEER24 switch, EC10 switch, or EC-Base
to the EC-Link (LRE side).
5. Using CAT5 or higher category cable, connect the endpoint to EC-Link (Endpoint side).
Endpoint device must be IEEE 802.3 af/at compliant.
888.901.3633 | +44 (0) 208 977 6614
www.nvtphybridge.com
EC-LINK
Long Reach PoE over Coax
UPC: 735890501077
EC-Link
• Paired with CLEER24, EC10 or EC-Base
• Up to 30W PoE
• Local power option
GBE 1
1
3
5
7
9
GBE 2
POWER
2
4
6
8
10
5
7
9
11
13
15
17
19
21
23
6
8
10
12
14
16
18
20
22
24
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
NV-ECLK-BSE
*
EC-Base
SFP 1
Long Reach PoE over Coax
SFP 2
To LRE
(NV-ECLK)
Coax Cable
up to 4,000ft (1,220m)
Local Power Option
Coax Cable
up to 4,000ft (1,220m)
Local Power Option
Link/Speed
Green:
100Mbps
Orange:
Link
10Mbps
MADE IN CANADA
NV-ECLK
IP ENDPOINT
NV-ECLK
IP ENDPOINT
To Endpoint
Activity
Copyright 2019 NVT Phybridge
