FLEX-C Adapter Applications
The FLEX-C adapter enables extended Ethernet and PoE reach beyond traditional distances
using 1, 2 or 4 pair UTP infrastructure. When paired with the FLEX24 Switch, FLEX8 Switch or
FLEX-Base Extender, the adapter delivers 10/100Mbps, symmetrical full duplex. The FLEX
offering is designed specifically to enable easy deployment over Multi-Pair UTP for reaches
beyond that of standard Ethernet eliminating the costs and disruption associated with IDF
closet requirements.
10/100Mbps (full duplex, symmetrical) & PoE+ over multi-pair UTP with 2,000ft (610M) reach.
NV-FLX-024/NV-FLX-08
1
RUN
ALARM
FAULT
Reset
2
To Application
Standard PoE Switch
SFP 1
SFP+1
37
41
39
31
17
29
43
19
27
23
21
13
45
25
47
35
33
3 5 1 9 11 7
15
SFP+2
SFP 2
46
48
42
38
32
40
16
22
30
26
28
20
24
44
36
4 6 2 10
18
12 8
34
14
*Base Extender can be powered locally for use with non-PoE switches.

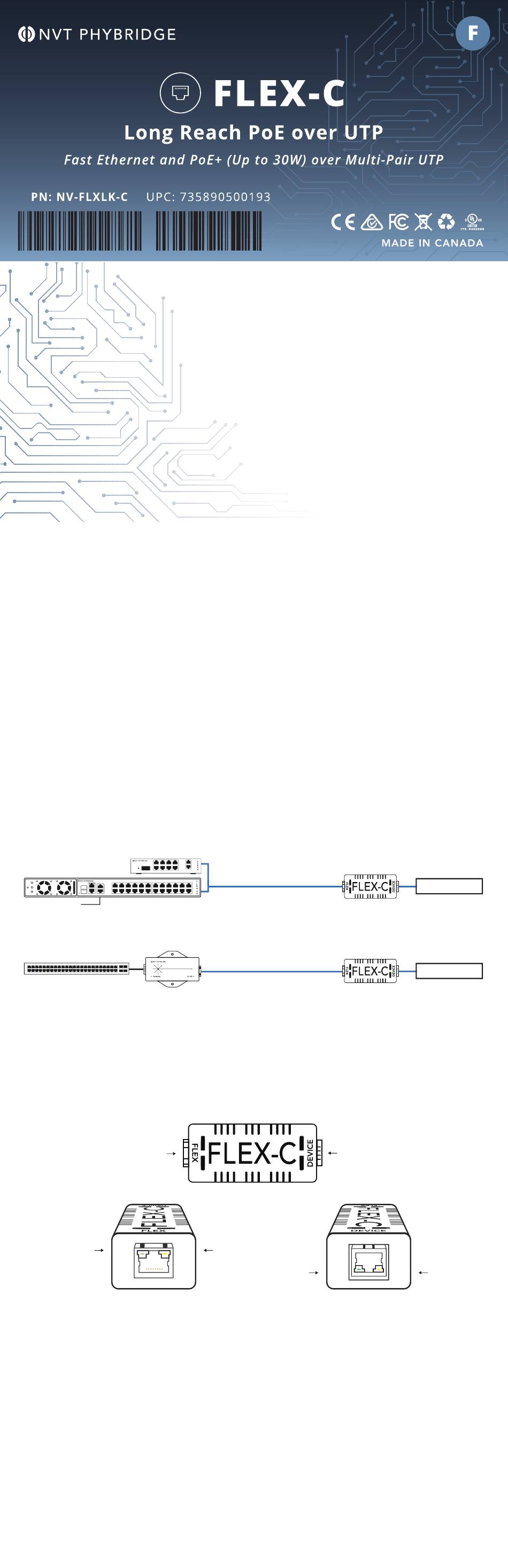

FLEX-C Quick Install Guide
(Long Reach Ethernet)
Link/Speed
Green:
100Mbps
Orange:
10Mbps
1. Remove the FLEX-C from its packaging.
2. Must ensure cable is properly terminated before connecting any FLEX product.
3. Remove all legacy equipment from the UTP cable infrastructure.
NOTE: In order to avoid damage to endpoints, it is important that non-IP devices are not
connected when you connect the FLEX-C.
4. Connect the Network Infrastructure cable from the FLEX24 switch, FLEX8 switch or
FLEX-Base to the FLEX-C (LRE side).
5. Using CAT5 or higher category cable, connect the endpoint to the FLEX-C (Endpoint side).
NOTE: FLEX-C can be used with FLEX24 switch, FLEX8 switch or FLEX-Base
Endpoint device must be IEEE 802.3 af/at compliant.
888.901.3633 | +44 (0) 208 977 6614
www.nvtphybridge.com

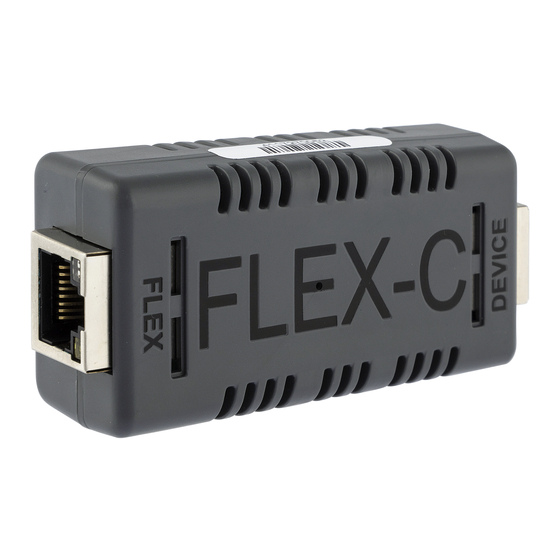

FLEX-C
• Paired with FLEX24, FLEX8 or FLEX-Base
• Up to 30W PoE
WE
1
2 3 4
5 6
7
8
3
5
7
9
11
13
15
17
19
21
23
4
6
8
10
12
14
16
18
20
22
24
NV-FLXLK-BSE
*
FLEX-Base
Long Reach PoE over UTP
To LRE
Activity
(NV-FLXLK-C)
Multi-Pair UTP Cable
up to 2,000ft (610m)
Multi-Pair UTP Cable
up to 2,000ft (610m)
Link
NV-FLXLK-C
IP ENDPOINT
NV-FLXLK-C
IP ENDPOINT
To Endpoint
Activity
Copyright 2019 NVT Phybridge
445-0017-A
