KNX-DIM21
Universal two-channel dimming actuator
Quick installation guide
Full manual is available on www.satel.eu
Firmware version 1.01
knx-dim21_sii_en 12/19
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu
Advertisement
Table of Contents
Related Manuals for Satel KNX-DIM21
Summary of Contents for Satel KNX-DIM21
- Page 1 KNX-DIM21 Universal two-channel dimming actuator Quick installation guide Full manual is available on www.satel.eu Firmware version 1.01 knx-dim21_sii_en 12/19 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.

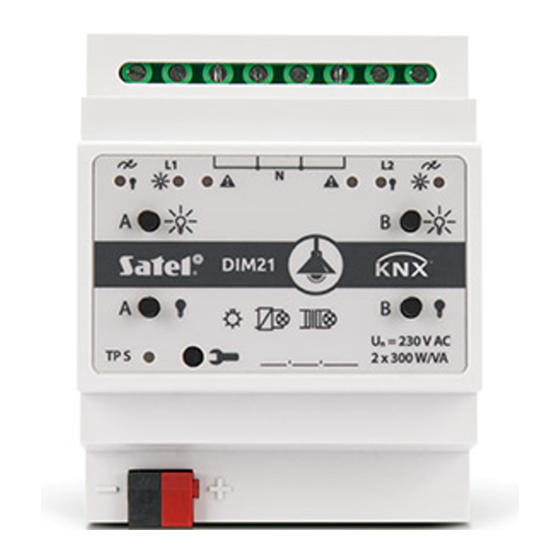

- Page 3 This manual only regards the installation of module KNX-DIM21. For more information about module and its configuration, please refer to the full manual available at www.satel.eu. 1. Description The KNX-DIM21 module is a universal two-channel dimming KNX actuator that allows stepless control of light sources up to 300 W per channel.
- Page 4 KNX-DIM21 SATEL technicians about the fault. Further operation of the module may pose hazard to the health or life of the operator and may damage the module as well as the connected load. buttons for manual control of the channels – see Table 2.
- Page 5 SATEL KNX-DIM21 Wiring diagram of module outputs The module has two independent channels based on two independent circuits with a common neutral point. Enclosure The module occupies 4 units on the 35 mm DIN rail. 2. Installation Disconnect power before making any electrical connections.
- Page 6 To configure the module, you will require a computer running the ETS program version 5.5 or newer, provided with USB or Ethernet (TCP/IP) connector. The SATEL ETS application file, which can be downloaded from www.satel.eu/ets, must be imported into the program.
- Page 7 SATEL KNX-DIM21 Fig. 4 shows how the load can be connected to the module: I and II – multi-phase mode, III and IV – single-phase mode. The maximum load that can be connected to each channel is 300 W. The load can only be connected to one channel.
- Page 8 KNX-DIM21 SATEL Maximum power loss ......................... 4 W Standby power loss ........................0.8 W Contact type .......................... ε, MOSFET Maximum output load Incandescent lamps ......................300 W HV halogen lamps ......................300 VA Inductive transformers ..................... 300 W Tronic (electronic) transformers ..................300 W HV-LED lamps ....................
