Thank you for choosing our product.
For proper operation, please read and keep this manual carefully.
If you have lost the Owner's Manual, please contact the local
agent or visit www.cooperandhunter.com or sent email to info@cooperandhunter.com or
electronic version. C&H reserves the right to interpret this manual which will be subject
to any change due to product improvement without further notice.

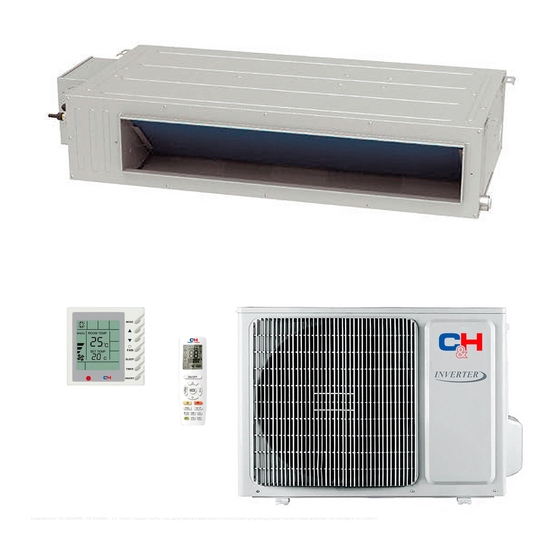

C&H DC INVERTER E-SERIES
Duct Type Unit
Installation and owner`s Manual
Air Conditioners
Models:
CH-ID030RKE
CH-ID035RKE
CH-ID050RKE
CH-ID071RKE
CH-ID085RKE
CH-ID100RKE
CH-ID125RKE
CH-ID140RKE
CH-ID160RKE
Advertisement
Table of Contents
Related Manuals for Cooper & Hunter DC INVERTER E Series
Summary of Contents for Cooper & Hunter DC INVERTER E Series
- Page 1 C&H DC INVERTER E-SERIES Duct Type Unit Installation and owner`s Manual Air Conditioners Models: CH-ID030RKE CH-ID035RKE CH-ID050RKE CH-ID071RKE CH-ID085RKE CH-ID100RKE CH-ID125RKE CH-ID140RKE CH-ID160RKE Thank you for choosing our product. For proper operation, please read and keep this manual carefully. If you have lost the Owner’s Manual, please contact the local agent or visit www.cooperandhunter.com or sent email to info@cooperandhunter.com or electronic version.
-
Page 2: Table Of Contents
Contents Caution Statements ............................1 Safety Precautions............................3 Composition of the Air-Conditioner ........................8 Before Operation Special Remarks..............................9 Troubleshooting ...............................9 Installation and Maintenance 1. Safety Notice..............................11 2. The Tools and Instruments for Installation ....................12 3. The Installation of the Indoor Unit ......................12 3.1 The Initial Check . -
Page 3: Caution Statements
DC Inverter E-Series Duct Type Unit CAUTION Statements Alert Symbols： DANGER : The symbol refers to a hazard which can result in severe personal injury or death. : The symbol refers to a hazard or an unsafe practice which may result in severe personal injury WARNING or death. - Page 4 DC Inverter E-Series Duct Type Unit Never use gasoline or other inflammable gas near the air-conditioner, which is very WARNING dangerous. When the air conditioner operation is abnormal, such as burnt smell, deformation, fire, smoke, and so on, it is forbidden to continue using the air conditioner, the main power switch of the air conditioner must be cut off immediately and the agent must be contacted.
-
Page 5: Safety Precautions
DC Inverter E-Series Duct Type Unit Precautions for using R32 refrigerant The basic installation work procedures are the same as the conventional refrigerant (R22 or R410A). However, pay attention to the following points: WARNING 1. Transport of equipment containing flammable refrigerants. Attention is drawn to the fact that additional transportation regulations may exist with respect to equipment containing flammable gas. - Page 6 DC Inverter E-Series Duct Type Unit WARNING •The following checks shall be applied to installations using flammable refrigerants: – The charge size is in accordance with the room size within which the refrigerant containing parts are installed; – The ventilation machinery and outlets are operating adequately and are not obstructed; –...
- Page 7 DC Inverter E-Series Duct Type Unit WARNING Detection of flammable refrigerants • Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. • A halide torch (or any other detector using a naked flame) shall not be used. Leak detection methods The following leak detection methods are deemed acceptable for systems containing flammable refrigerants: •...
- Page 8 DC Inverter E-Series Duct Type Unit WARNING Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced. a) Become familiar with the equipment and its operation.
- Page 9 DC Inverter E-Series Duct Type Unit WARNING •Appliance shall be installed, operated and stored in a room with a floor area larger than X (X see below). •The installation of pipe-work shall be kept to a a room with a floor area larger than X (X see below). •The pipe-work shall be complianced with national gas regulations.
-
Page 10: Composition Of The Air-Conditioner
DC Inverter E-Series Duct Type Unit Indoor unit 085~100 030~071 125~160 1. Air inlet 2. Electric box 3. Refrigerant pipe (Liquid) 4. Refrigerant pipe (Gas) 5. Drain pipe (Connect with pump) 6. Drain pipe 7. Air outlet Remote controller(optional) You can control the air-conditioner with the wire remote controller or wireless remote controller. It is used for controlling power ON/OFF,setting the running mode, temperature, fan speed and other functions. -
Page 11: Special Remarks
DC Inverter E-Series Duct Type Unit Special remarks ● 3 minutes protection after compressor stop To protect compressor, it will be continue to be off for at least 3 minutes once it has stopped. ● 5 minutes protection Compressor must run for at least 5 minutes once operational. In the 5 minutes, compressor will not stop even the room temperature reaches the setting temperature point unless you use remote controller to turn off the unit (all indoor unit can be turned off by user). - Page 12 DC Inverter E-Series Duct Type Unit 5. Mode Interfere (Only for multi-split) For the reason that all indoor units use one outdoor unit, outdoor unit can only run with same mode (cooling or heating), so, when the mode you set is different from the mode that outdoor is running with, mode interfere occurs.
-
Page 13: Safety Notice
DC Inverter E-Series Duct Type Unit 1. Safety Notice WARNING ·Installation should be performed by a qualified personnel. (Improper installation may cause water leakage, electrical shock or fire.) ·Install the unit according to the instructions given in this manual. (Incomplete installation may cause water leakage, electrical shock or fire). -
Page 14: The Tools And Instruments For Installation
DC Inverter E-Series Duct Type Unit 2. The Tools and Instruments for Installation Number Tool Number Tool Standard screwdriver Knife or wire stripper Vacuum pump Leveller Charge hose Hammer Pipe bender Churn drill Adjustable wrench Tube expander Pipe cutter Inner hexagon spanner Cross head screw-driver Measuring tape 3. -
Page 15: Installation
DC Inverter E-Series Duct Type Unit ·Optimum air distribution is ensured. 3.2 Installation ·The air passage is not blocked. ·Condensate can drain properly. 3.2.1 Suspension bolts ·The ceiling is strong enough to bear the weight of the (1) Consider the pipe direction, wiring and maintenance indoor unit. - Page 16 DC Inverter E-Series Duct Type Unit 3.2.3 Install the indoor unit. The installation of the indoor unit is shown in Fig. 3.4. Suspension bolts (4-M10 or W3/8) ( Field supplied ) Fig. 3.7 Nuts and (3) After the adjustment, tighten the nuts and swear the washers (4- M1 0 or W3/ 8) thread locker on the suspension to prevent the nuts...
-
Page 17: Refrigerant Pipe
DC Inverter E-Series Duct Type Unit 4. Refrigerant Pipe Model Gas Pipe Liquid Pipe (Btu/h) DANGER φ9.52 φ6.35 030~035 φ12.7 φ6.35 Use the refrigerant according to outdoor nameplate. φ15.88 φ9.52 When carrying on the leakage check and test, do not 071~085 mix in the oxygen, the acetylene and flammable and φ19.05... -
Page 18: Drain Piping
DC Inverter E-Series Duct Type Unit 5. Drain piping · Drain piping passing indoors · Install the drain piping · Drain sockets. · · Make sure the drain works properly . Referring the figure below, insulate the drain socket and drain hose using the included large sealing pad. ·... -
Page 19: Electrical Wiring
DC Inverter E-Series Duct Type Unit 6. Electrical Wiring General Check CAUTION ·When clamping the wiring, use the included clamping material as shown in the Fig.6.1 to prevent external pressure being exerted on the wiring connections and clamp firmly. · While performing wiring work, make sure the wiring is proper and does not cause the control box lid to stick up, then close the cover firmly. -
Page 20: Change Of Static Pressure
DC Inverter E-Series Duct Type Unit 6.2 Change of Static Pressure The static pressure can be freely adjusted by using specific wire remote controller. Error Indicator Model The range of (Capacity Function code set Parameter Code static pressure Btu/h) 0-50, more than 50 is 50 Pa, 030/035/050 0-50Pa [default: 0 (0Pa)]... -
Page 21: Electrical Installation
DC Inverter E-Series Duct Type Unit 6.3 Electrical Installation ● Use an ELB (Electric Leakage Breaker). If not used, it will cause an electric shock or a fire. ● Do not operate the system until all the check points have been cleared. (A) Check to ensure that the insulation resistance is more than 2MΩ, by measuring the resistance between ground and the terminal of the electrical parts. - Page 22 Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
