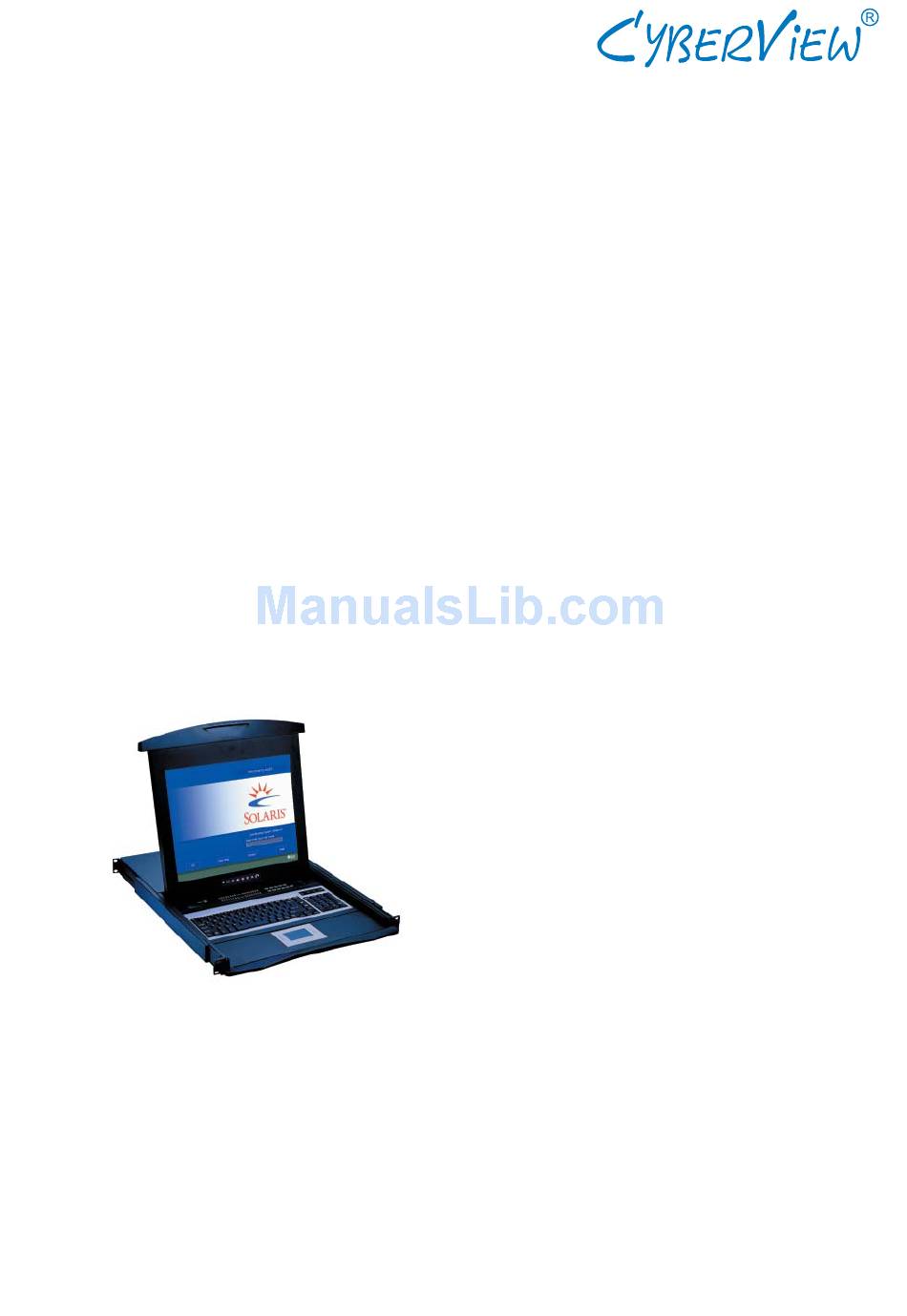

Page 1: User Manual

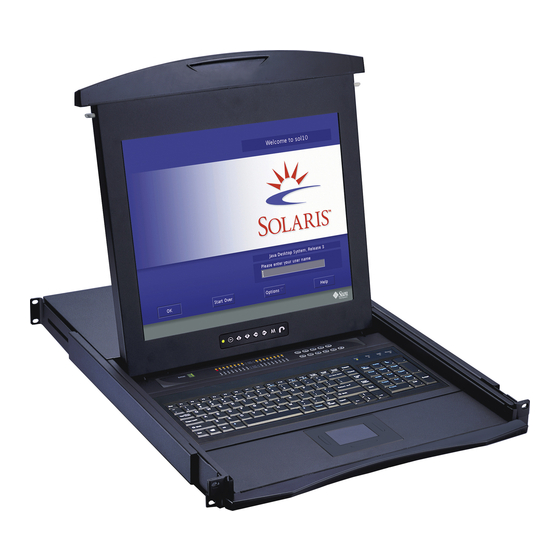

User Manual SUN LCD Keyboard Drawer NS117 / 119 - With KVM Options - 1U 17", 19" screen size - Designed for SUN Solaris... -
Page 2: Table Of Contents
Chapter 1 Getting Started Important Safeguards...1 Regulatory Notice...2 Package Contents...3 Before Installation...4 Unpacking...4 Optional Accessories...4 Peripheral Products...5 Structure Diagram...5 Installation...6 1.10 How to Use "NS" Series LCD Keyboard Drawer...7 1.11 How to Use the Slides ...8 1.12 How to Use "One Man" Installation Slides ...9 1.13 Connect to Server via USB Interface...11 1.14... -
Page 3: Important Safeguards
1.1 Important Safeguards Please read all of these instructions carefully before you use the device. Save this manual for future reference. What the warranty does not cover ■ Any product, on which the serial number has been defaced, modifi ed or removed. ■... -
Page 4: Regulatory Notice
1.2 Regulatory Notice Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 5: Package Contents
LCD keyboard drawer x 1 pc Fasteners for rear L-bracket x 4 pcs 330mm rear mounting L-bracket x 1 pair * NS117 / 119 series mounting depth-adjustable from 320 to 920mm CB-6 2-in-1 USB KVM cable x 1 pc User manual x 1 pc... -
Page 6: Before Installation
1.4 Before Installation ■ It is very important to locate the LCD Keyboard Drawer in a suitable environment. ■ The surface for placing and fi xing the LCD Keyboard Drawer should be stable and level or mounted into a suitable cabinet. -
Page 7: Peripheral Products
1.7 Peripheral Products Item Model No. CV-S801 / CV-S1601 DB-15 KVM UIP-1602 / UIP-3202 U-1602 / U-3202 Cat5 KVM U1601 / U3201 CV-S101 KVM Extender 1.8 Structure Diagram Carry handle to release the 2-pt lock 2-point lock LCD interchangeable module kit LCD membrane Adjustable rear mounting L-bracket Description... -
Page 8: Installation
1.9 Installation Figure 1. Installing the rear L-bracket to the LCD keyboard drawer. Figure 2. Aligning the rear L-brackets to a suitable length for the rack. Figure 3. Fixing the LCD keyboard drawer into the rack. ■ Install each rear L-bracket using two fasteners shown in Figure 1. -
Page 9: How To Use "Ns" Series Lcd Keyboard Drawer
1.10 How to Use "NS" Series LCD Keyboard Drawer Figure 4. Pulling the tab toward the front of LCD. Figure 5. Flipping up the LCD to a suitable angle. Figure 6. Operating the LCD keyboard drawer ■ Gently pull the tab toward the front of the LCD shown in Figure 4. -
Page 10: How To Use The Slides
1.11 How to Use the Slides Figure 7. White arrow button. Figure 8. Pushing the white arrow button. Figure 9. Pushing the LCD keyboard drawer into the rack. ■ A white arrow release button is located on the outside of each slide (shown in Figure 7). ■... -
Page 11: Install The Front Mounting Ear X 2 Pcs
1.12 How to Install "One Man" Installation Slides Package Contents Install the Front Mounting Ear x 2 pcs ■ Disassemble the standard front mounting ears carefully. ■ Install the optional front mounting ears with M3.2*4.5mm screw x 8 pcs. Chapter 1 Model No : NBK-01 Mounting bracket x 2 pcs Front mounting ear (left &... - Page 12 1.12 How to Install "One Man" Installation Slides Install into Rack ■ Attach mounting brackets to vertical mounting rails. ■ Leaving the screws slightly loose. ■ Attach support brackets to chassis with M3.2*4.5mm screw x 6 pcs ■ Pickup the unit. ■...
-
Page 13: Connect To Server Via Usb Interface
1.13 Connect to Server via USB Interface Figure 10. Example of connecting CB-6 2-in-1 USB KVM cable to server via USB interface 1.14 Connect to KVM via USB Interface Figure 11. Example of connecting CB-6 2-in-1 USB KVM cable to KVM via USB interface Remarks : ■... -
Page 14: On-Screen Display Operation
2.1 On-screen Display Operation Membrane Switch Function Power light Green = On Orange = Power saving Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control Exit the OSD screen Shortcut key to auto adjustment by pressing the button for 5 seconds Toggle analog, digital &... -
Page 15: On-Screen Menu
2.2 On-screen Menu Image Brightness: Adjust background black level of the screen image Contrast: Adjust the difference between the image background (black level) and the foreground (white level) Sharpness: Adjust the image from weak to sharp Saturation: Adjust the saturation of the image color Hue: Adjust the screen hue value Geometry... -
Page 16: Specifi Cations
3.1 Specifi cations Item Form Factor LCD Manufacturer Diagonal Size Resolution Brightness (cd/m²) Color Support Contrast Ratio (typ.) Viewing Angle (H/V) Display Area (mm) Tr Response Time (ms) VGA Signal Input Sync. Type Resolution Plug & Play DDC Console Port (Combo) Power Input Power Consumption Compatilibity... -
Page 17: Keyboard & Mouse
3.2 Keyboard & Mouse NS keyboard integrated with touchpad ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■ 104 key notepad keyboard with full numerical pad and SUN function ■ US layout only ■ USB interface NS keyboard integrated with trackball ■... -
Page 18: How To Use "Ns" Keyboard
3.3 How to Use "NS" keyboard ■ NS SUN-compatible keyboard incorporates SUN short-cut keys. Num LED in Off mode Key pad behaves as a SUN Solaris system administration command mode Three Audio / Display keys are located in the upper-right corner of the NS keyboard: ■... -
Page 19: Kvm Options
4.1 KVM Options Our KVM is designed to seamlessly integrate into the rear of our full range of LCD drawer solutions: ■ For KVM operation, please refer to "Integrated LCD KVM Switch" user manual ■ Option with high desnsity Cat5 KVM with either 16 or 32 ports ■... -
Page 20: Chapter 5 Troubleshooting
The company reserves the right to modify product specifi cations without prior notice and assumes no reponsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2007 Austin Hughes Electronics Ltd. All rights reserved. Packing Dimension (W x D x H)
