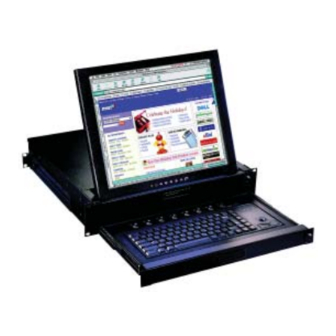

Austin Hughes Electronics Cyberview RKP215 Series User Manual

Austin Hughes Electronics Cyberview RKP215 Series User Manual

2u dual slides lcd keyboard drawer 15", 17", 19" screen size

Advertisement

Quick Links

User Manual
2U Dual Slides LCD Keyboard Drawer
15", 17", 19" screen size
Models
RKP215 / 217 / 219 Series
Models
RKP2415 / 2417 / 2419 Series
- Short depth version

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cyberview RKP215 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Austin Hughes Electronics Cyberview RKP215 Series

  • Page 1 User Manual 2U Dual Slides LCD Keyboard Drawer 15", 17", 19" screen size Models RKP215 / 217 / 219 Series Models RKP2415 / 2417 / 2419 Series - Short depth version...
  • Page 2 Blank page...
  • Page 3: Table Of Contents

    Chapter 1 Getting Started Important Safeguards...1 Regulatory Notice...2 Package Contents...3 Before Installation...4 Unpacking...4 Optional Accessories...4 Peripheral Products...5 Structure Diagram...5 Installation...6 1.10 How to Use Dual Slide...7 1.11 Connect to Server via USB Interface...8 1.12 Connect to KVM via USB Interface...8 1.13 Connect to Server via PS/2 Interface...9 1.14...
  • Page 4: Important Safeguards

    1.1 Important Safeguards Please read all of these instructions carefully before you use the device. Save this manual for future reference. What the warranty does not cover ■ Any product, on which the serial number has been defaced, modifi ed or removed. ■...
  • Page 5: Regulatory Notice

    1.2 Regulatory Notice Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without no- tice.
  • Page 6: Package Contents

    Fasteners for rear L-bracket x 4 pcs 330mm rear mounting L-bracket x 1 pair * RKP215 / 217 / 219 series mounting depth-adjustable from 270 to 870mm * RKP2415 / 2417 series mounting depth-adjustable from 110 to 710mm * RKP2419 series mounting depth-adjustable from 150 to 750mm...
  • Page 7: Before Installation

    3. SUN / iMAC USB to PS/2 adapter 3.1 SUN-31 4. Extended rear mounting L-bracket 4.1 430mm (16.9") extended rear L-bracket for : RKP215/217/219 series up to 970mm RKP2415/2417 series up to 810mm RKP2419 series up to 850mm *Extended rear L-bracket in tailor-made length on request 5.
  • Page 8: Peripheral Products

    1.7 Peripheral Products Item Model No. IP-802 / IP-1602 CV-802 / CV-1602 DB-15 KVM CV-401 / CV-801 / CV-1601 CV-S801 / CV-S1601 UIP-1602 / UIP-3202 U-1602 / U-3202 Cat5 KVM U1601 / U3201 IP-101 CV-101 KVM Extender CV-S101 1.8 Structure Diagram SAMSUNG Class A TFT LCD panel LCD membrane button Adjustable...
  • Page 9: Installation

    1.9 Installation Figure 1. Installing the rear L-bracket to the LCD keyboard drawer. Figure 2. Aligning the rear L-brackets to a suitable length for the rack. Figure 3. Fixing the LCD keyboard drawer into the rack. ■ Install each rear L-bracket using two fasteners shown in Figure 1.
  • Page 10: How To Use The Dual Slide

    1.10 How to Use The Dual slide Figure 4. Pulling the handle toward the front of keyboard drawer. Figure 5. Pulling the handle toward the front of LCD drawer. Figure 6. Flipping up the LCD to a suitable angle. Figure 7. Operating the LCD keyboard drawer. ■...
  • Page 11: Connect To Server Via Usb Interface

    1.11 Connect to Server via USB Interface Figure 8. Example of connecting CB-6 2-in-1 USB KVM cable to server via USB interface 1.12 Connect to KVM via USB Interface Figure 9. Example of connecting CB-6 2-in-1 USB KVM cable to KVM via USB interface Remarks ■...
  • Page 12: Connect To Server Via Ps/2 Interface

    1.13 Connect to Server via PS/2 Interface Figure 10. Example of connecting CD-6 3-in-1 PS/2 KVM cable to server via PS/2 interface 1.14 Connect to KVM via PS/2 Interface Figure 11. Example of connecting CD-6 3-in-1 PS/2 KVM cable to KVM via PS/2 interface Remarks ■...
  • Page 13: On-Screen Display Operation

    2.1 On-screen Display Operation Membrane Switch Function Power light Green = On Orange = Power saving Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control Exit the OSD screen Shortcut key to auto adjustment by pressing the button for 5 seconds Toggle analog, digital &...
  • Page 14: On-Screen Menu

    2.2 On-screen Menu MAIN MENU BRIGHTNESS/CONTRAST AUTO ADJUST PHASE/CLOCK H/V POSITION MISC RESET BRIGHTNESS / CONTRAST Brighthtness: Adjust background black level of the screen image. Contrast: Adjust the difference between the image background (black level) and the foreground (white level). AUTO ADJUST Auto Adjust: Fine tunes the video signal to eliminate waviness and distortion.
  • Page 15: Specifi Cations

    3.1 Specifi cations Item Form Factor LCD Manufacturer Diagonal Size Max. Resolution Brightness (cd/m²) Color Support Contrast Ratio (typ.) Viewing Angle (H/V) Display Area (mm) Tr Response Time (ms) VGA Signal Input Sync. Type 640 x 480, 60/ 72/ 75 Hz Resolution 800 x 600, 60/ 70/ 72/ 75 Hz 1024 x 768, 60/ 70/ 72/ 75 Hz...
  • Page 16: Keyboard & Mouse

    Compact keyboard with touch-pad mouse Remarks ■ All keyboards are applicable to RKP215 / 217 / 219 series ■ Only “e”, “b” & ”c” keyboards are applicable to RKP2415 / 2417 / 2419 series Supporting layouts Cherry keyboard with trackball only P.13...
  • Page 17: Kvm Options

    4.1 KVM Options Our KVM is designed to seamlessly integrate into the rear of our full range of LCD drawer solutions: ■ For KVM operation, pls refer to "Integrated LCD KVM Switch" user manual ■ Option with high desnsity Cat5 KVM with either 16 or 32 ports ■...
  • Page 18: S-Video + Bnc Input Option

    Chapter 4 4.4 S-Video + BNC Input Option 3-in-1 VGA KB mouse Internal power version S-Video BNC console port External power version Remarks: ■ Package includes an extra 6ft S-Video cable P.15...
  • Page 19: On-Screen Menu For Dvi, Bnc, S-Video & Rca Input

    4.5 On-screen Menu for DVI, BNC, S-Video & RCA Input Image Brightness: Adjust background black level of the screen image Contrast: Adjust the difference between the image background (black level) and the foreground (white level) Sharpness: Adjust the image from weak to sharp Saturation: Adjust the saturation of the image color Hue:...
  • Page 20: Dc Power Options

    4.6 DC Power Options Model Input rating Input voltage: Input range: Input current - No load - Full load Output rating Output voltage: Output current: Effi ciency Remarks ■ Package does not include power cord and AC power adapter ■ In RKP2415-1601 / 2417-1601 series, the depth will be extended for 440mm (17.3") to 480mm (18.8") ■...
  • Page 21: Chapter 5 Troubleshooting

    Chapter 5 5.1 Troubleshooting 1. How do I adjust the resolution? To change monitor resolution, click Start -> Control Panel -> Display. Select Setting tab to adjust the monitor resolution in Desktop Area. The available resolutions, "640 x 480", "800 x 600", "1024 x 768", "1152 x 864", "1280 x 1024", are deter- mined by the display card in your computer.
  • Page 22: Chapter 6 Dimensions

    6.1 Dimensions Product Dimension Model (W x D x H) 442 x 600 x 88 mm RKP215 series 17.4 x 23.6 x 3.5" 442 x 600 x 88 mm RKP217 series 17.4 x 23.6 x 3.5" 442 x 600 x 88 mm RKP219 series 17.4 x 23.6 x 3.5"...
  • Page 23 Blank page...
  • Page 24 The company reserves the right to modify product specifi cations without prior notice and assumes no reponsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2007 Austin Hughes Electronics Ltd. All rights reserved. CV-RKP2-0807V1...
