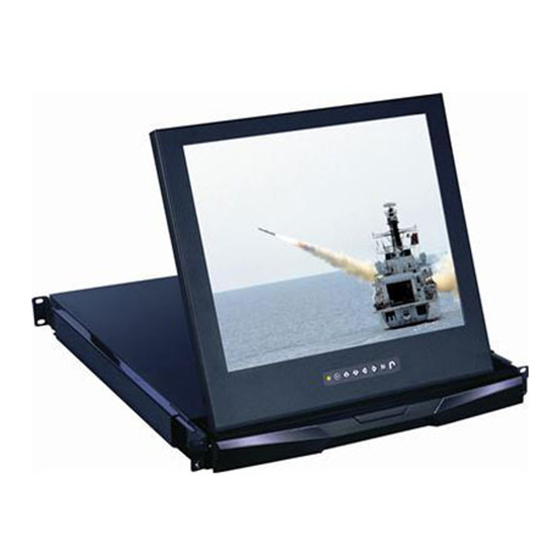

Rackmount lcd drawer 15", 17", 19", 20" screen size
Hide thumbs Also See for Cyberview RP-115 Series:

Advertisement

Quick Links

User Manual
Rackmount LCD Drawer
15", 17", 19", 20" screen size
Options :
- AV / BNC
- Touchscreen
- DVI
- DC power
Models
RP115 / 117 / 119 Series
Models
RP1415 / 1417 / 1419 Series
- Short depth version
Models
RP220 Series
- Ultra high resolution 1600 x 1200
- 2U height

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cyberview RP-115 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Austin Hughes Electronics Cyberview RP-115 Series

  • Page 1 User Manual Rackmount LCD Drawer 15", 17", 19", 20" screen size Options : - AV / BNC - Touchscreen - DVI - DC power Models RP115 / 117 / 119 Series Models RP1415 / 1417 / 1419 Series - Short depth version Models RP220 Series - Ultra high resolution 1600 x 1200...
  • Page 2 Blank page...
  • Page 3: Table Of Contents

    Chapter 1 Getting Started Important Safeguards...1 Regulatory Notice...2 Package Contents...3 Before Installation...4 Unpacking...4 Optional Accessories...4 Peripheral Products...5 Structure Diagram...5 Installation...6 1.10 Connection...7 Chapter 2 Operation On-screen Display Operation...7 On-screen Menu...8-9 Chapter 3 LCD Specifi cation Chapter 4 AV, BNC, DVI Options DVI-D Option...11 S-Video + RCA Input Option...11 S-Video + BNC Input Option...11...
  • Page 4: Important Safeguards

    1.1 Important Safeguards Please read all of these instructions carefully before you use the device. Save this manual for future reference. What the warranty does not cover ■ Any product, on which the serial number has been defaced, modifi ed or removed. ■...
  • Page 5: Regulatory Notice

    1.2 Regulatory Notice Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without no- tice.
  • Page 6: Package Contents

    1.3 Package Contents Rackmount LCD drawer x 1 pc Fasteners for rear L-bracket x 4 pcs 330mm rear mounting L-bracket x 1 pair * RP115 / 117 series mounting depth-adjustable from 220 to 820mm * RP119 / 220 series mounting depth-adjustable from 270 to 870mm * RP1415 / 1417 series mounting depth-adjustable from 110 to 710mm * RP1419 series mounting depth-adjustable from 150 to 750mm 6' VGA cable (male to male) x 1 pc...
  • Page 7: Before Installation

    1.4 Before Installation ■ It is very important to locate the Rackmount LCD Drawer in a suitable environment. ■ The surface for placing and fi xing the Rackmount LCD Drawer should be stable and level or mounted into a suitable cabinet.
  • Page 8: Peripheral Products

    1.7 Peripheral Products Item Model No. IP-802 / IP-1602 CV-802 / CV-1602 DB-15 KVM CV-401 / CV-801 / CV-1601 CV-S801 / CV-S1601 UIP-1602 / UIP-3202 U-1602 / U-3202 Cat5 KVM U1601 / U3201 IP-101 CV-101 KVM Extender CV-S101 RK-1 Keyboard Drawer RK-2 1.8 Structure Diagram SAMSUNG Class A TFT LCD panel...
  • Page 9: Installation

    1.9 Installation Figure 1. Installing the rear L-bracket to the LCD keyboard drawer. Figure 2. Aligning the rear L-brackets to a suitable length for the rack. Figure 3. Fixing the LCD keyboard drawer into the rack. ■ Install each rear L-bracket using two fasteners shown in Figure 1.
  • Page 10: Connection

    1.10 Connection Internal power version Power External power version ( For short depth version - RP1415 / 1417 / 1419 ) The Rackmount LCD Drawer are hot-pluggable, but components of connected Caution : devices, such as the servers and KVM switch, may not be hot-pluggable. Plugging and un- plugging cables while servers and KVM are powered on may cause irreversible damage of the servers, KVM and Rackmount LCD Drawer.
  • Page 11: On-Screen Menu

    2.2 On-screen Menu For RP115 / 117 / 119 / 1415 / 1517 / 1419 series MAIN MENU BRIGHTNESS/CONTRAST AUTO ADJUST PHASE/CLOCK H/V POSITION MISC RESET BRIGHTNESS / CONTRAST Brighthtness: Adjust background black level of the screen image. Contrast: Adjust the difference between the image background (black level) and the foreground (white level).
  • Page 12: On-Screen Menu

    2.2 On-screen Menu For RP220 series Image Brightness: Adjust background black level of the screen image Contrast: Adjust the difference between the image background (black level) and the foreground (white level) Sharpness: Adjust the image from weak to sharp Saturation: Adjust the saturation of the image color Hue: Adjust the screen hue value...
  • Page 13: Lcd Specifications

    3.1 LCD Specifi cations Item Form Factor LCD Manufacturer Diagonal Size Max. Resolution Brightness (cd/m²) Color Support Contrast Ratio (typ.) Viewing Angle (H/V) Display Area (mm) Tr Response Time (ms) VGA Signal Input Sync. Type Resolution Plug & Play DDC Console Port (Combo) Power Input Power Consumption...
  • Page 14: Dvi-D Option

    4.1 DVI-D Option Internal power version External power version ( For short depth version - RP1415 / 1417 / 1419 ) Remarks ■ s with a 6' DVI-D cable Package include ■ The depth of RP1415 / 1417 will be extended from 440 mm ( 17.3" ) to 480mm ( 18.9" ) ■...
  • Page 15: On-Screen Menu For Dvi, Bnc, S-Video & Rca Input

    4.4 On-screen Menu for DVI, BNC, S-Video & RCA Input Image Brightness: Adjust background black level of the screen image Contrast: Adjust the difference between the image background (black level) and the foreground (white level) Sharpness: Adjust the image from weak to sharp Saturation: Adjust the saturation of the image color Hue:...
  • Page 16: Touchscreen Options

    5.1 Touchscreen Options Power USB interface Internal power version ( For short depth version - RP1415 / 1417 / 1419 ) External power version Power Serial interface Internal power version ( For short depth version - RP1415 / 1417 / 1419 ) External power version e-Resistive Model...
  • Page 17: Dc Power Options

    6.1 DC Power Options Model Input rating Input voltage: Input range: Input current - No load - Full load Output rating Output voltage: Output current: Effi ciency Remarks ■ Package does not include power cord and AC power adapter ■ The depth of RP1415 / 1417 will be extended from 440 mm ( 17.3"...
  • Page 18: Troubleshooting

    Chapter 7 7.1 Troubleshooting 1. How do I adjust the resolution? To change monitor resolution, click Start -> Control Panel -> Display. Select Setting tab to adjust the monitor resolution in Desktop Area. The available resolutions, "640 x 480", "800 x 600", "1024 x 768", "1152 x 864", "1280 x 1024", are deter- mined by the display card in your computer.
  • Page 19 8.1 Dimensions Product Dimension Model (W x D x H) 442 x 550 x 44.2 mm RP115 series 17.4 x 21.6 x 1.74" 442 x 550 x 42 mm RP117 series 17.4 x 21.6 x 1.74" 442 x 600 x 44 mm RP119 series 17.4 x 23.6 x 1.73"...
  • Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no reponsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2007 Austin Hughes Electronics Ltd. All rights reserved. CV-RP11-0807V1...
