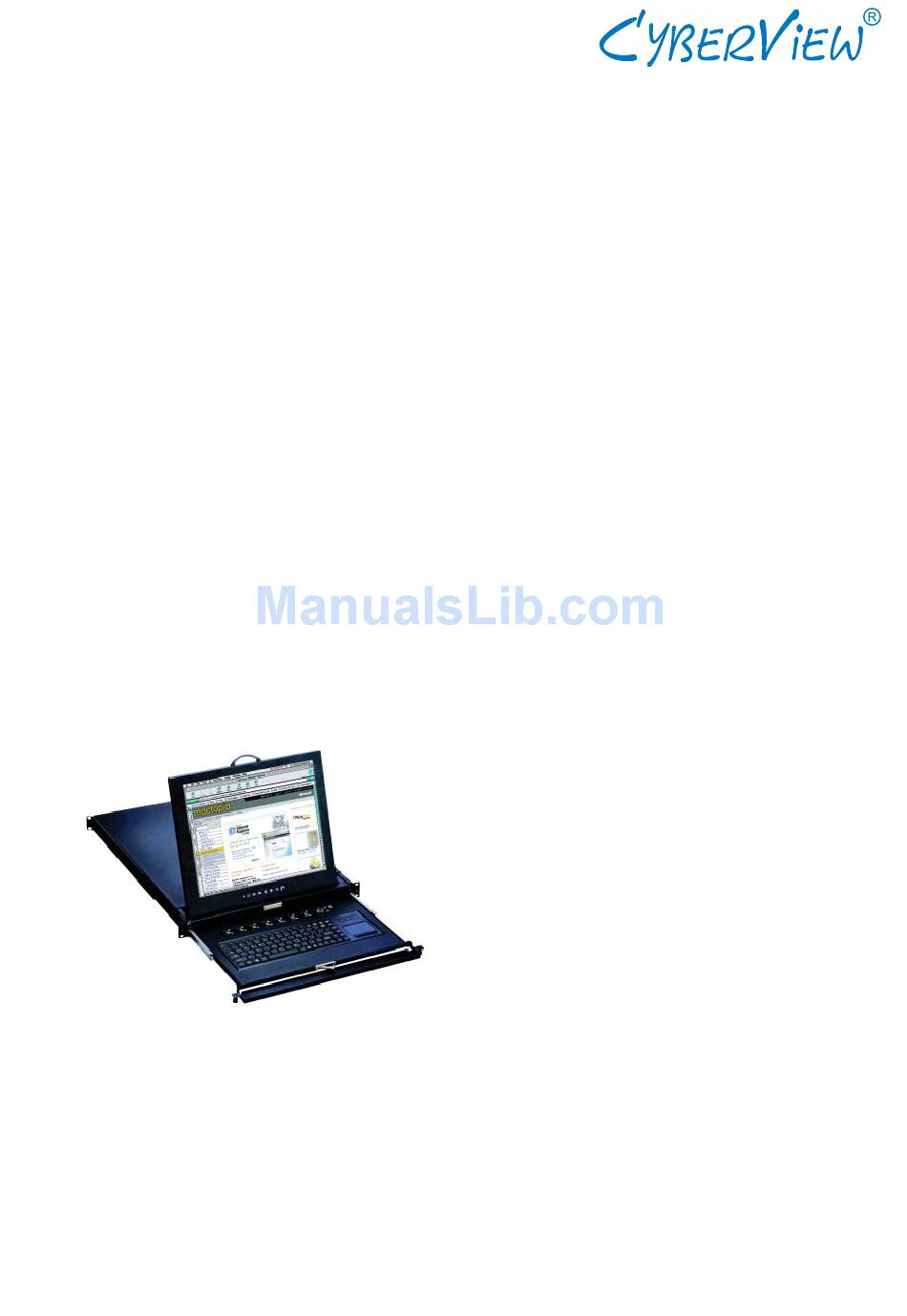

- Page 1 User Manual RKP1015 / 1017 LCD Keyboard Drawer 1U dual slide - 15", 17" screen size...
-
Page 2: Table Of Contents
Chapter 1 Getting Started Important Safeguards...1 Regulatory Notice...2 Package Contents...3 Before Installation...4 Unpacking...4 Optional Accessories...4 Peripheral Products...5 Structure Diagram...5 Installation...6 1.10 How to Use The Slides...7 1.11 Locking Bracket for RKP1015 / 1017 series...8 1.12 How to Use The Dual Slides...9 1.13 Connect to Server via USB Interface...10 1.14... -
Page 3: Important Safeguards
1.1 Important Safeguards Please read all of these instructions carefully before you use the device. Save this manual for future reference. What the warranty does not cover ■ Any product, on which the serial number has been defaced, modifi ed or removed. ■... -
Page 4: Regulatory Notice
1.2 Regulatory Notice Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without no- tice. -
Page 5: Package Contents
1.3 Package Contents LCD keyboard drawer x 1 pc Fasteners for rear L-bracket x 4 pcs 330mm rear mounting L-bracket x 1 pair * Mounting depth-adjustable from 390 to 920mm CB-6 2-in-1 USB KVM cable x 1 pc User manual x 1 pc Power cord x 1 pc Auto switch power adapter ( for external power version) x 1pc CD-6 3-in-1 PS/2 KVM cable x 1 pc... -
Page 6: Before Installation
1.4 Before Installation ■ It is very important to locate the LCD Keyboard Drawer in a suitable environment. ■ The surface for placing and fi xing the LCD Keyboard Drawer should be stable and level or mounted into a suitable cabinet. -
Page 7: Peripheral Products
1.7 Peripheral Products Item Model No. IP-802 / IP-1602 CV-802 / CV-1602 DB-15 KVM CV-401 / CV-801 / CV-1601 CV-S801 / CV-S1601 UIP-1602 / UIP-3202 U-1602 / U-3202 Cat5 KVM U1601 / U3201 IP-101 CV-101 KVM Extender CV-S101 1.8 Structure Diagram SAMSUNG Class A TFT LCD panel Adjustable rear mounting L-bracket... -
Page 8: Installation
1.9 Installation Figure 1. Installing the rear L-bracket to the LCD keyboard drawer. Figure 2. Aligning the rear L-brackets to a suitable length for the rack. Figure 3. Fixing the LCD keyboard drawer into the rack. ■ Install each rear L-bracket using two fasteners shown in Figure 1. -
Page 9: How To Use The Slides
1.10 How to Use The Slides Figure 4. White arrow button. Figure 5. Pushing the white arrow button. Figure 6. Pushing the upper LCD drawer until it is located in the rack. Figure 7. Pushing the lower keyboard drawer into the rack. ■... -
Page 10: Locking Bracket For Rkp1015 / 1017 Series
1.11 Locking Bracket for RKP1015 / 1017 series Figure 8. Figure 9. Figure 10. ■ Release the locking bracket in Figure 8. ■ The locking bracket will spring open in Figure 9. ■ Flip up the LCD panel Chapter 1... -
Page 11: How To Use The Dual Slides
1.12 How to Use The Dual Slides Figure 11. Pulling the handle toward the front of keyboard drawer. Figure 12. Pulling the handle toward the front of LCD drawer. Figure 13. Flipping up the LCD to a suitable angle. Figure 14. Operating the LCD keyboard drawer. ■... -
Page 12: Connect To Server Via Usb Interface
Chapter 1 1.13 Connect to Server via USB Interface Figure 15. Example of connecting CB-6 2-in-1 USB KVM cable to server via USB interface 1.14 Connect to KVM via USB Interface Figure 16. Example of connecting CB-6 2-in-1 USB KVM cable to KVM via USB interface Remarks ■... -
Page 13: Connect To Server Via Ps/2 Interface
1.15 Connect to Server via PS/2 Interface Figure 17. Example of connecting CD-6 3-in-1 PS/2 KVM cable to server via PS/2 interface 1.16 Connect to KVM via PS/2 Interface Figure 18. Example of connecting CD-6 3-in-1 PS/2 KVM cable to KVM via PS/2 interface Remarks ■... -
Page 14: On-Screen Display Operation
2.1 On-screen Display Operation Function Membrane Switch Power light Green = On Orange = Power saving Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control Exit the OSD screen Shortcut key to auto adjustment by pressing the button for 5 seconds Toggle analog, digital &... -
Page 15: On-Screen Menu
2.2 On-screen Menu MAIN MENU BRIGHTNESS/CONTRAST AUTO ADJUST PHASE/CLOCK H/V POSITION MISC RESET BRIGHTNESS / CONTRAST Brighthtness: Adjust background black level of the screen image. Contrast: Adjust the difference between the image background (black level) and the foreground (white level). AUTO ADJUST Auto Adjust: Fine tunes the video signal to eliminate waviness and distortion. -
Page 16: Specifi Cations
3.1 Specifi cations Item Form Factor LCD Manufacturer Diagonal Size Max. Resolution Brightness (cd/m²) Color Support Contrast Ratio (typ.) Viewing Angle (H/V) Display Area (mm) Tr Response Time (ms) VGA Signal Input Sync. Type Resolution Plug & Play DDC Console Port (Combo) Power Input Power Consumption Compatilibity... -
Page 17: Keyboard & Mouse
3.2 Keyboard & Mouse ■ Multiple keyboard lanuage selections with touchpad ■ Trackball is not available N keyboard integrated with touchpad P.15 Chapter 3 Supporting layouts... -
Page 18: Kvm Options
4.1 KVM Options Our KVM is designed to seamlessly integrate into the rear of our full range of LCD drawer solutions: ■ For KVM operation, please refer to "Integrated LCD KVM Switch" user manual ■ Option with high desnsity Cat5 KVM with either 16 or 32 ports ■... -
Page 19: S-Video + Bnc Input Option
Chapter 4 4.4 S-Video + BNC Input Option 3-in-1 VGA KB mouse Internal power version S-Video BNC console port External power version Remarks: ■ Package includes an extra 6ft S-Video cable P.17... -
Page 20: On-Screen Menu For Dvi, Bnc, S-Video & Rca Input
4.5 On-screen Menu for DVI, BNC, S-Video & RCA Input Image Brightness: Adjust background black level of the screen image Contrast: Adjust the difference between the image background (black level) and the foreground (white level) Sharpness: Adjust the image from weak to sharp Saturation: Adjust the saturation of the image color Hue:... -
Page 21: Dc Power Options
4.6 DC Power Options Model Input rating Input voltage: Input range: Input current - No load - Full load Output rating Output voltage: Output current: Effi ciency Remarks: ■ Package does not include power cord and AC power adapter ■ With DC power option, the depth will be extended from 650mm (25.6") to 690mm (27.2") 12-Volt 24-Volt... -
Page 22: Chapter 5 Troubleshooting
Chapter 5 5.1 Troubleshooting 1. How do I adjust the resolution? To change monitor resolution, click Start -> Control Panel -> Display. Select Setting tab to adjust the monitor resolution in Desktop Area. The available resolutions, "640 x 480", "800 x 600", "1024 x 768", "1152 x 864", "1280 x 1024", are deter- mined by the display card in your computer. -
Page 23: Chapter 6 Dimensions
6.1 Dimensions Product Dimension Model (W x D x H) 442 x 650 x 44 mm RKP1015 series 17.4 x 25.6 x 1.75" 442 x 650 x 44 mm RKP1017 series 17.4 x 25.6 x 1.75" Packing Dimension (W x D x H) Weight 589 x 826 x 168 mm 15 kg... - Page 24 The company reserves the right to modify product specifi cations without prior notice and assumes no reponsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2007 Austin Hughes Electronics Ltd. All rights reserved. CV-RKP4-0807V1...
