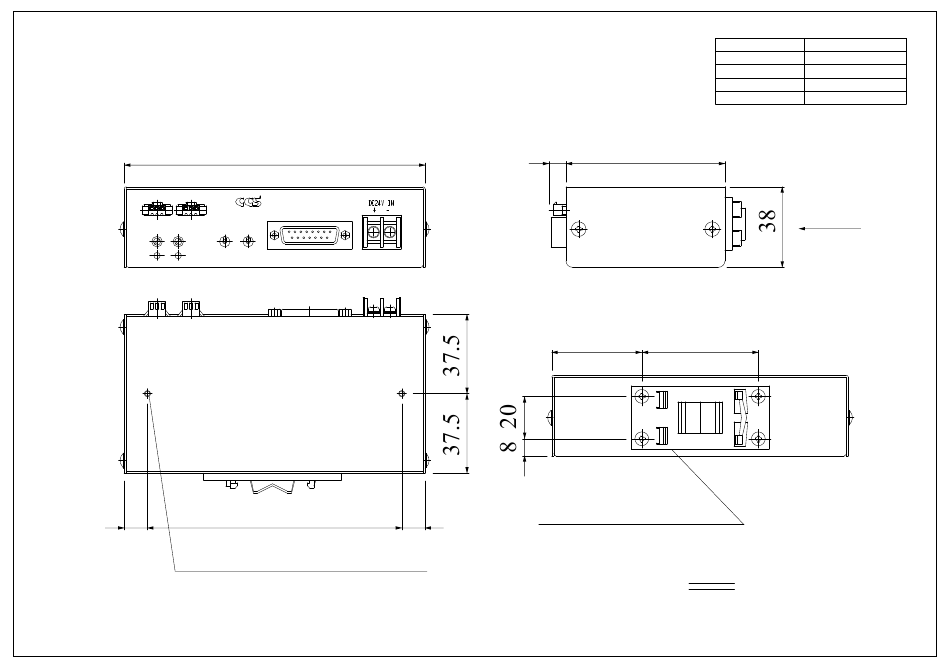

PJ-1505-2CD24
L1
L2
Intensity
Range
L1
L2
11
2-M3(inside 3mm max.)
for Fixation
Copyright(c) 2005 CCS Inc. All rights reserved. Reproduction or photocopy without permission is prohibited.
142
PJ-1505-2CD24
Remote Control
Control
Hi
Remote
Lo
Manual
120
11
(8)
75
42.5
55
DIN Rail Bracket
A
Model
PJ-1505-2CD24
Input
24V DC
Power Consumption
10W
Mass
360g
3P ( 1 : Sense , 2 : + , 3 : _ ) x2
Output Connector
Third Angle Projection
Units: mm
A
CCS Inc.
Advertisement
Table of Contents
Related Manuals for CCS HLV Series
Summary of Contents for CCS HLV Series
- Page 1 Output Connector Third Angle Projection Units: mm PJ-1505-2CD24 Remote Control Intensity Range Control Remote Manual 42.5 DIN Rail Bracket 2-M3(inside 3mm max.) for Fixation CCS Inc. Copyright(c) 2005 CCS Inc. All rights reserved. Reproduction or photocopy without permission is prohibited.
- Page 2 HLV Series dedicated power supply unit PJ Series RoHS Directive Compatible AC 100-240V DC 24V PJ-1505-2CA PJ-1505-3CA PJ-1505-2CD24 PJ-1505-3CD24 0-5V Analog Control Halogen PJ Series Utilizing the same 0-5V external control as a standard halogen light source, allows external control for the present system. Continuous current control enables adjustment of the light intensity more precisely than with halogen light sources.
- Page 3 Safety Precautions * Read this instruction guide before using the product. Thank you for purchasing a CCS product. To properly use the product, please read this instruction guide before use and keep it for your future reference. Be sure to pay special attention to the information marked with "...
- Page 4 Caution (1) Switch off the power before connecting/disconnecting cables. Otherwise, fire and electric shock may occur. (2) The off to on interval must be at least two seconds, or faulty operation may occur. (3) Do not use the unit in an enclosed space, as the light becomes hot. Cool down with fans, etc.
-
Page 5: General Description
2. General Description The PJ power supply series is an exclusive power supply for intensity control of CCS high luminosity LED spot lighting HLV series. PJ-1505-*CD24 operates utilizing factory supplied 24V DC input. The series consists of 2 and 3-channel types, which control the intensity using external analog voltage, as well as turning the lighting on and off. - Page 6 (2) Connections Connect the power supply cable into the input terminal. Prior to connection, make sure that the DC 24V power supply side has no connection or the power switch is in the OFF position to avoid sparks caused by the short circuit of (+) terminal and (-) terminal.
-
Page 7: External Control
* 1) NC (No-connection) for 2 Channel type of PJ-1505-2CD24 * 2) Internal common GND Use a shielded cable of 3 m or less for the control line. Option: External control cable (One side of the cable is open) manufactured by CCS (2) Internal Circuit Remote Control +5.5V... -
Page 8: Led Indicator
(3) Feature of Intensity Control (Reference) External Input - Luminous Intensity Feature Input [V] In order to turn the light off completely by input voltage 0V of the external intensity control, there is a domain does not emit light. Max input voltage(without emitting light ) (typ)= HLV-14-PJ series (140mV), HLV-27 series and HLV-24 series (110mV), HLV-24-3W series (50mV) (4) Luminescence Features OFF Control... -
Page 9: Specifications
Remote Intensity Control (Remote) Analog Voltage 0 to 5V(5.25V max.) Output Current Hi/ Lo Range, L1 channel with the Range switch Range Hi Range: HLV series maximum current/ Lo Range: 30mA typ. On/Off Control Turn-off :2.5 to 5.0V(max. 24V), turn-on : 0.8 to 0V (inside pull-down) Power Supply Terminal block M3 screw, 7.62mm pitch... - Page 10 ■Exemption We are exempt from to have any legal obligations or responsibilities to provide compensation for difficulties or damage, which occur both directly and indirectly from using the power unit and the LED light. http://www.ccs-grp.com Head Office intlsales@ccs-inc.co.jp Shimodachiuri-agaru, Karasuma-dori...
