CCS PD2 Series Manual

Hide thumbs Also See for PD2 Series:
Table of Contents

Advertisement

Quick Links

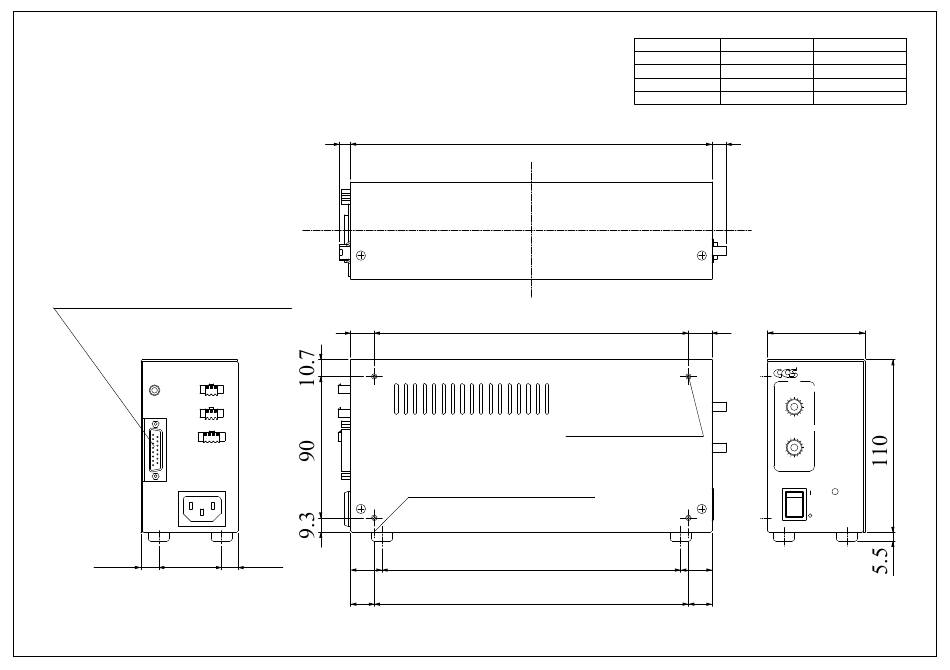

PD2-5012/ PD2-5024
External control connector
D-Sub15pin
Light
on/off
L1
L2
L1
(FAN)
100-240V
External
50/60HZ 122VA
Control
11.5
40
Copyright(c) 2006 CCS Inc. All rights reserved. Reproduction or photocopy without permission is prohibited.
(7)
15
4-M3 depth 5
40X200 (Mounting)
10.5
20
15
Model
Power requirements
Output
Mass
Connector type
230
200
15
4-M3 depth 5
(Mounting)
190
20
200
15
PD2-5012
PD2-5024
AC100-240V 122VA
AC100-240V 122VA
12V/46W
24V/46W
1300g
1300g
_ ) x2
_ ) x2
2P ( 1 : + , 2 :
3P ( 1 : + , 2 : NC , 3 :
Third Angle Projection
Units: mm
9
62
PD2-5024
L1
Coarse
9
8
10
7
11
6
12
5
13
4
14
3
15
2
16
1
Fine
8
9
10
7
11
6
12
5
13
4
14
3
15
2
16
1
Power
Error
CCS Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PD2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for CCS PD2 Series

Summary of Contents for CCS PD2 Series

  • Page 1 PD2-5024 Light on/off Coarse 4-M3 depth 5 Fine (Mounting) (FAN) 4-M3 depth 5 100-240V Power Error External 50/60HZ 122VA Control 40X200 (Mounting) 11.5 10.5 CCS Inc. Copyright(c) 2006 CCS Inc. All rights reserved. Reproduction or photocopy without permission is prohibited.
  • Page 2 PD2 Series provides a more linear and repeatable intensity control because of the force-detent adjustment course/fine adjustment knobs and benefits of pulse duty control. The PD2 Series is suitable for all CCS lights without dedicated power supplies. The Series is designed to meet the requirements of the widest variety of applications with the 12 and 24V options, power ratings range, and the number of independent output channels.

  • Page 3: Safety Precautions

    1. Safety Precautions *Read this instruction guide before using the product. Thank you for purchasing a CCS product. To properly use the product, please read this instruction guide before use and keep it for your future reference. Be sure to pay special attention to the information marked with “...
  • Page 4 This may result in electric shock. 2. Overview This power supply is for exclusive usage with LED lighting made by CCS. 1. Light intensity can be controlled in internal mode from the intensity control knobs on the front panel of the product or in external mode using a PLC, microcomputer, or other device.

  • Page 5: Operating Procedure

    3. Operating Procedure Turning the power ON/OFF side of the power switch is OFF. The power is ON when side is pressed. Power OFF Power ON (The power lamp will be illuminated) Turning ON lighting 1. Check the power supply is turned OFF. Front Note: The illustration shows...

  • Page 6: External Control

    6. Use the intensity control knobs to set light intensity. Intensity control knobs Adjusting lighting intensity 1. Turn the intensity control knobs on the front panel of the product to set the lighting intensity. Each knob controls light intensity in 16 steps. With 16 fine steps for every coarse step (16 steps), the result is up to 256 steps of extremely fine.
  • Page 7 A driver IC or an open collector outputs a signal to each terminal and the external control signals are input to the product at CMOS level. 3. Optional external control cable is manufactured by CCS. 4. The product support the following types of external control.
  • Page 8 2) Setting light intensity data Set the 8 bits from B0 to B7 as well as B9 to control light intensity. Specify up to 256 steps using bits B0 to B7 and send the write signal to write bit B9 to write the light intensity data to the product.
  • Page 9 Manual ON/OFF control Power supply 1. In manual mode, the external ON/OFF control is available for (rear view) the illuminator. Phone jack for ON/OFF control in Phone plug manual mode 2. Insert the phone plug into the phone jack to send the ON/OFF control signal for manual control.
  • Page 10 4. Connectors 1. Output connectors: SM connectors (JST) 12V output 24V output 12V with fan 24V with fan number OUT + (12V) OUT + (24V) OUT + (24V) OUT - OUT + (12V) OUT - OUT - OUT - Fan GND Fan GND Connector SMP-02V-BC...
  • Page 11 GND(-) Outside Contact your nearest CCS representative if you need to extend the control signal cable or operate in an extremely noisy environment. Cables should not be extended more than 3 m. Potentially harmful noise may be eliminated by installing a 0.01 to 0.1- µ F capacitor between the signal and ground to ensure proper operation of this product.
  • Page 12 7. PD2 overcurrent protection signal output circuit (open collector) Dsub Output transistor: RN1201 (mfd. by Toshiba) : 50V Ic: 100mA Max. current capacity: 100mA RN1201 8. Dimensional Diagrams (mm) PD2-1012(A)/1024(A)
  • Page 13 PD2-3012(A)/3024(A) Supplied 3-prong AC power cord (2m)
  • Page 14 PD2-5012 /5024 Supplied 3-prong AC power cord (2m)

  • Page 15: Specifications

    9. Specifications Models PD2-1012(A) PD2-1024(A) PD2-3012(A) PD2-3024(A) PD2-5012(A) PD2-5024(A) Input voltage 100-120V AC 100-240V AC (Rating) [*1] Power 27VA typ. 78VA typ. 122VA typ. consumption frequency 50/60Hz 3.5mA max. Leakage current (132V AC, 60Hz, under 3.5mA max. (264V AC, 60Hz, under full-load condition) full-load condition) Operates at 107% min.

  • Page 16: Care And Handling

    10. Care and Handling Warning - Turn OFF the Power Supply and unplug it from the outlet before handling. Caution - Do not scratch the unit by handling it with a hard object. - Do not let water or cleanser enter the unit. - Do not use cleansers or chemical agents other than those listed below.
  • Page 17 China RoHS Directive China RoHS Directive is formally known as "Management Methods for Controlling Pollution by Electronic Information Products", which was implemented on March 1, 2007 in China. Same as EU RoHS Directive, this regulation restricts the usage of six substances such as lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyl (PBB), and polybrominated diphenyl ether (PBDE).

  • Page 18: Warranty Information

    Warranty period: Two years (one year for radiant quantity), starting from CCS Inc. shipping date. CCS Inc. will repair or replace the product free of charge if it should fail to function or if the radiant quantity of the product should drop to 50% or less of its initial radiant quantity within the specified warranty period.
