PSB-1012V-WW/ PSB-1024V-WW
LIGHT
100-240V
Copyright(c) 2004 CCS Inc. All rights reserved. Reproduction or photocopy without permission is prohibited.
(8.5)
GND
15.5
131
(15)
100
15.5
PSB-1012V-WW
PSB-1024V-WW
Model
Power requirements
AC100-240V 27VA
AC100-240V 27VA
Output
12V/10W
24V/10W
Mass
440g
440g
2P ( 1 : + , 2 : _ ) x1
3P ( 1 : + , 2 : NC , 3 : _ ) x1
Connector type

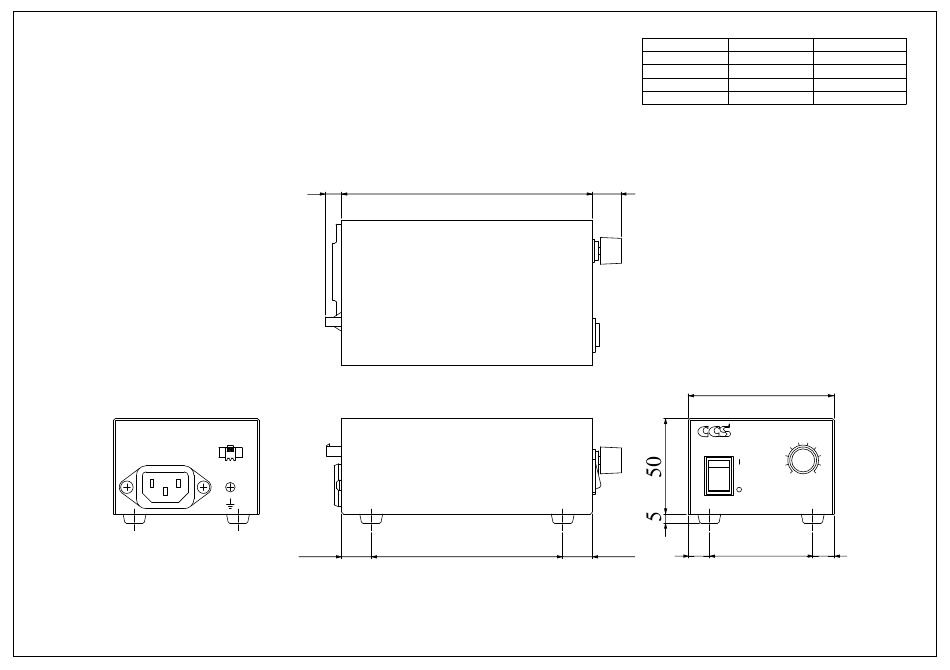

Third Angle Projection
76
5
6
4
7
POWER
3
8
2
9
10
1
INTENSITY
11
54
11
CCS Inc.
Units: mm
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CCS PSB Series
Summary of Contents for CCS PSB Series
- Page 1 3P ( 1 : + , 2 : NC , 3 : _ ) x1 Connector type Third Angle Projection Units: mm (8.5) (15) LIGHT POWER 100-240V INTENSITY 15.5 15.5 CCS Inc. Copyright(c) 2004 CCS Inc. All rights reserved. Reproduction or photocopy without permission is prohibited.
-
Page 2: Specifications
12.5 12.5 PSB-1012VB/PSB-1024VB PSB-3012VB / 3024VB PSB-1012V-WW / 1024V-WW The PSB Series is an analog power supply series providing stepless (17) (8.5) (15) intensity control through variable voltage control. It is ideal for continuous use with cameras having a shutter speed of AC cable (2.3m) -
Page 3: Safety Precautions
Operation Manual for the PSB series Power Supply Units for LED Lighting ... - Page 4 Please contact the local sales office of CCS as it is dangerous for you to repair it. In case of dropping and damaging the unit, please contact the local sales office of CCS after turning off the power and pulling the power plug from the outlet.
- Page 5 Turn the power supply switch on. (3) Intensity control PSB series power supply controls intensity variably. Intensity voltage range is 8.3〜12V for the 12V illuminator, 5W model is 15〜24V for the 24V Illuminator and the 10, 30W model is 12〜24V. The LED intensifies by turning the dial to the right and dims by turning it left.
- Page 6 Signal（＋） Case GND（−） ＊ ...
- Page 7 6. Appearance （１） ＰＳＢ−５１２Ｖ／ＰＳＢ−５２４Ｖ Intensity Control Output Connector FG Terminal Back Panel Power Cord (2.3m) Front Panel 4-M3 Screw insertion less than 5mm ...
- Page 8 （３） ＰＳＢ−３０１２ＶＢ／ＰＳＢ−３０２４ＶＢ Output Intensity Control FG Terminal Back Panel connector Front Panel Power Cord (2.3m) (2.3m) 4-M3 Power Switch Screw insertion ...
-
Page 9: Power Switch
（５） ＰＳＢ−３０１２Ｖ−ＷＷ／ＰＳＢ−３０２４Ｖ−ＷＷ Back Intensity Control AC Inlet 4-M3 Output Connector Screw insertion less than 5mm Back Panel Front Panel Front Panel Power Switch ... - Page 10 http://www.ccs-grp.com intlsales@ccs-inc.co.jp...
