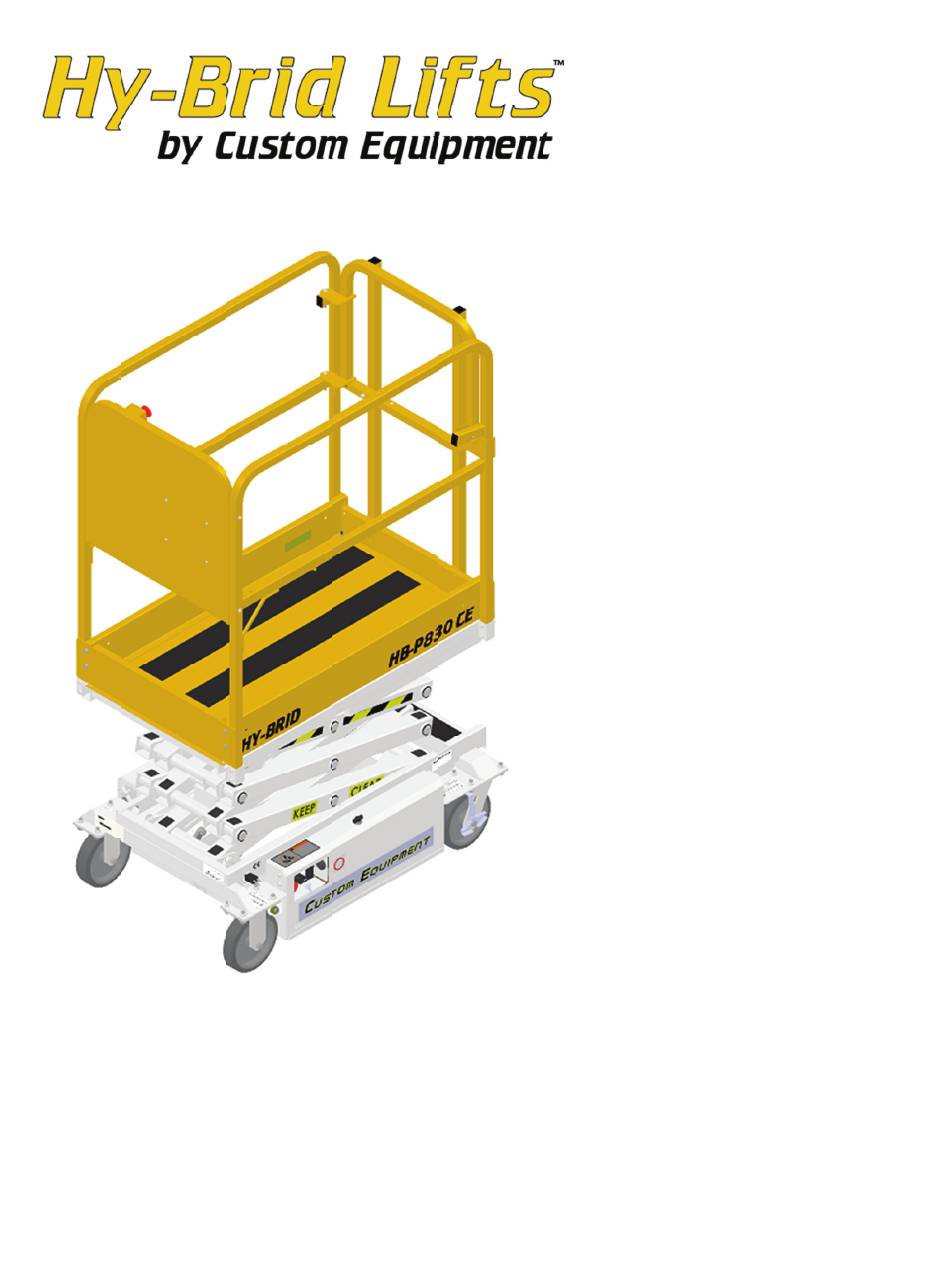

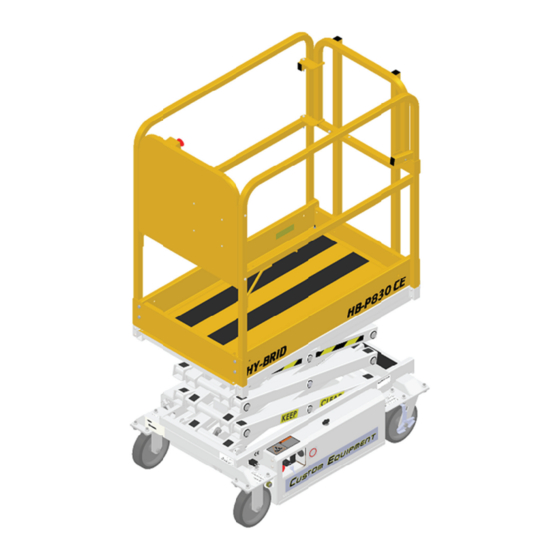

- Page 1 AINTE ENANC TROU UBLES SHOOT TING MANU Hy-Bri id Lifts odel HB-P8 830CE Push-A Around rial Work k Platfor ...
-
Page 2: Table Of Contents
Table of Contents Wheels/Brakes ............................27 Safety ................................5 Covers/Other............................27 Safety Symbols ............................5 Warranty ..............................28 General Rules and Precautions ......................... 5 Revision Table: Stability Testing............................6 Revision A (06/15/2010): Initial Release Safety Guidelines .......................... -
Page 3: Safety
THE USER/OPERATOR SHOULD NOT ACCEPT OPERATING RESPONSIBILITY UNTIL THE Custom Equipment, Inc. designed the Hy Brid Lift push around scissor lift to be safe and reliable. It is intended for elevating personnel, along with their necessary tools and materials to overhead work MANUAL HAS BEEN READ AND UNDERSTOOD AS WELL AS HAVING OPERATED THE locations. -
Page 4: Stability Testing
Stability Testing Safety Guidelines The HB P830CE has been stability tested to standards EN280 or AS 14180. The most adverse stability Maintenance Lock test is the stationary, lateral slope configuration for both units. The overturning moment created by the The maintenance lock must be placed into position whenever the machine is being serviced in test loads and forces is equivalent to a test on an unloaded machine on a level surface, as shown in the the raised or partially raised position. -
Page 5: Battery Maintenance
Battery Maintenance This unit is equipped with a deep cycle 12 volt Group 27 battery. The care and maintenance of your battery has much to do with how well this unit functions. Battery wiring and water level should be checked monthly. Do not overfill. -
Page 6: Examination, Repair, Replacement Of Limited Life Components
Examination, repair, replacement of limited life components Prestart Inspection Checklist With proper use, battery maintenance, and regular inspection, there are no limited life components that require routine replacement. WARNING Safety devices and systems requiring checks Check safety functions as part of daily inspection. Check that the mechanical brakes are holding. THIS CHECKLIST MUST BE USED AT THE BEGINNING OF EACH SHIFT OR AFTER EVERY SIX TO EIGHT HOURS OF USE. -
Page 7: Frequent Inspection Checklist
Frequent Inspection Checklist Pre Delivery/Annual Inspection Checklist WARNING WARNING AERIAL PLATFORMS SHALL BE INSPECTED, SERVICED AND ADJUSTED TO MANUFACTURER'S AERIAL PLATFORMS SHALL BE INSPECTED, SERVICED AND ADJUSTED TO MANUFACTURER'S REQUIREMENTS BY A QUALIFIED REQUIREMENTS BY A QUALIFIED MECHANIC PRIOR TO EACH SALE, LEASE, OR RENTAL, AND EVERY MECHANIC PRIOR TO EACH SALE, LEASE, OR RENTAL, AND EVERY 12 MONTHS 3 MONTHS OR 150 HOURS, WHICHEVER COMES FIRST MODEL NUMBER HB P830CE SERIAL NUMBER ______________... - Page 8 This page intentionally left blank. Part #SUPO-615E Page 14 of 28 Part #SUPO-615E Page 15 of 28 Rev L Rev L...
- Page 9 Part #SUPO-615E Page 16 of 28 Part #SUPO-615E Page 17 of 28 Rev L Rev L...
- Page 10 Part #SUPO-615E Page 18 of 28 Part #SUPO-615E Page 19 of 28 Rev L Rev L...
- Page 11 Part #SUPO-615E Page 20 of 28 Part #SUPO-615E Page 21 of 28 Rev L Rev L...
- Page 12 Part #SUPO-615E Page 22 of 28 Part #SUPO-615E Page 23 of 28 Rev L Rev L...
-
Page 13: Replacement Parts
Replacement Parts Main Power/Safety Circuit CAUTION USE ONLY MANUFACTURER APPROVED REPLACEMENT PARTS. USE OF NON OEM PARTS WILL VOID WARRANTY. DANGER REPLACEMENT OF THE FOLLOWING COMPONENTS WILL AFFECT THE STRENGTH, STABILITY, OR SAFETY FUNCTION OF THE UNIT: BATTERY, HYDRAULIC CYLINDER , AND ALL STRUCTURAL COMPONENTS. -
Page 14: Elevate/Lower Circuit Parts
Elevate/Lower Circuit Parts Wheels/Brakes Item # Part # Description WHEE 706 KIT Wheel (8”), Raceway, & DU Bearing 1000114707&12/1000116207&12 Caster Sides 1000115802 Brake Weldment HARD 668 Spring 1000116002 Brake Actuator Item # Part # Description 1002100580 (Left) Swivel 8” Caster with brake HYDR 050 4 Hydraulic Pump 1002100581 (Right) - Page 15 Parts will be requested when we will be returning these parts to our vendor fore credit. During the Warranty period, Custom Equipment, Inc. reserves the right to replace, repair, exchange, or to provide a new, used, or rebuilt component, assembly, sub-assembly, or weldment at their discretion, dependent upon circumstance, situation, and/or availability.
