Summary of Contents for Zacuto HVX200

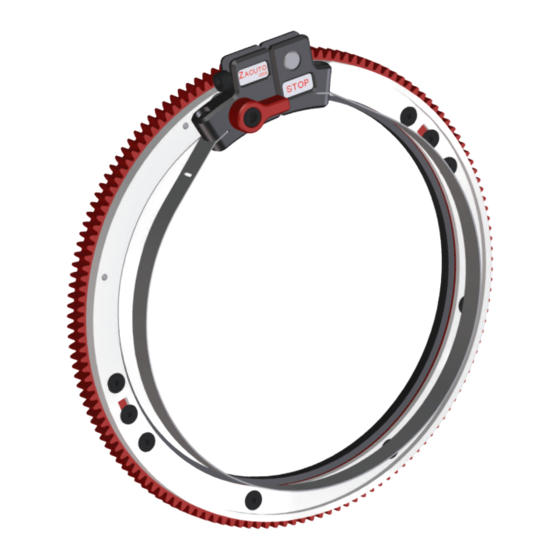

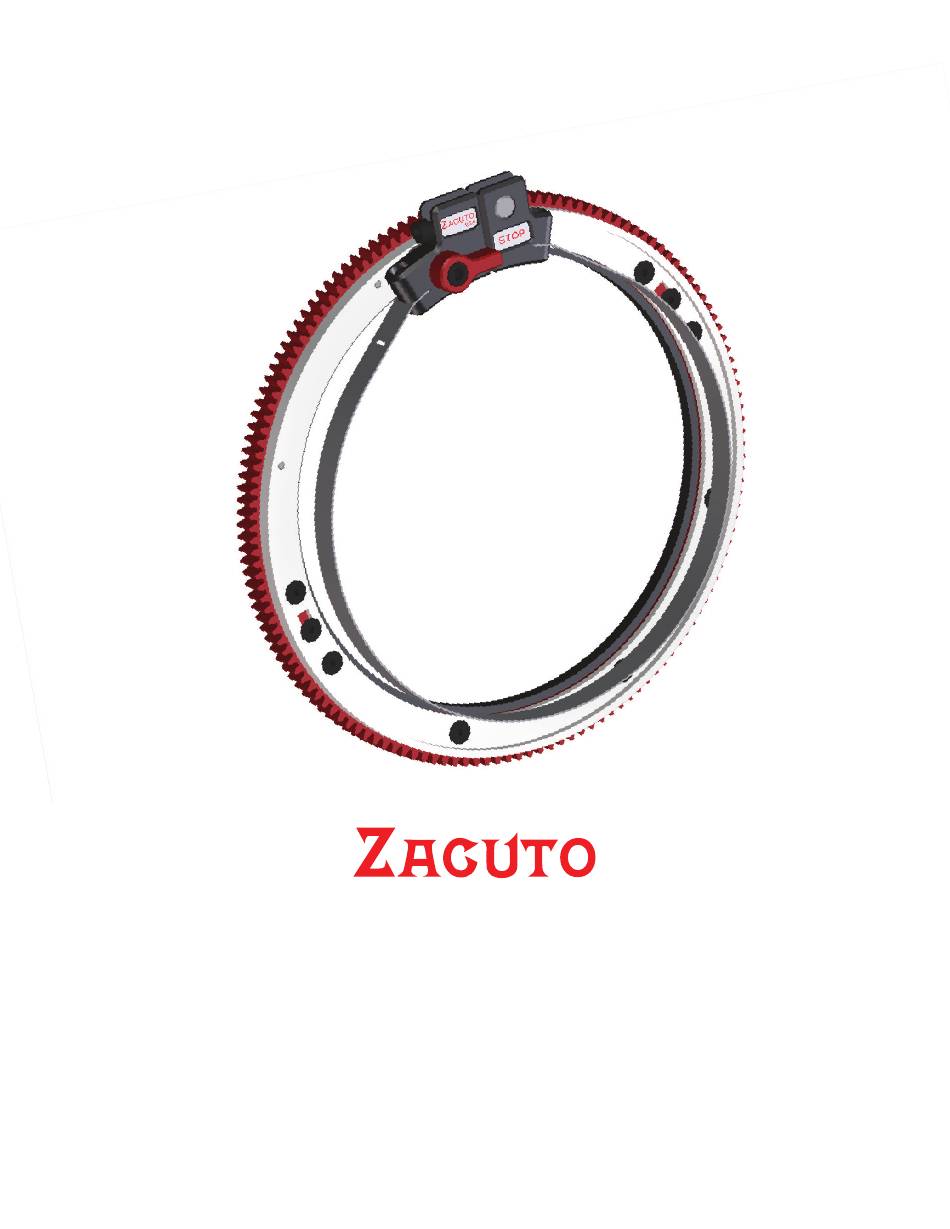

- Page 1 Products Packages HVX200 Repeatable Focus Ring Instructions 401 W. Ontario, Suite 250, Chicago, IL 60610 312-863-FILM 888-294-FILM www.zacuto.com...
- Page 2 INSTALLATION HVX200 Repeatable Focus Ring Grab the ends of the stainless steel strap with the labels facing into your hands with tension screw in your right hand. Band with stop housing ends This next step is best done with the camera on your tripod or clamped between your legs.
- Page 3 INSTALLATION HVX200 Repeatable Focus Ring With the white side of the red gear facing the camera, surround the focus barrel and put the two halves of the gear together over the focus ring. While clamping around the focus barrel, mount the gear as close to the body of the camera as possible without actually touching it.
- Page 4 OPERATION HVX200 Repeatable Focus Ring With the red lever down in the stops position, the lens gear will only have the necessary 270 degrees of rotation. See calibration instructions below for use in this mode. With the lever in the up position the lens is in ‘neutral’ and can rotate continuously.
