6.7

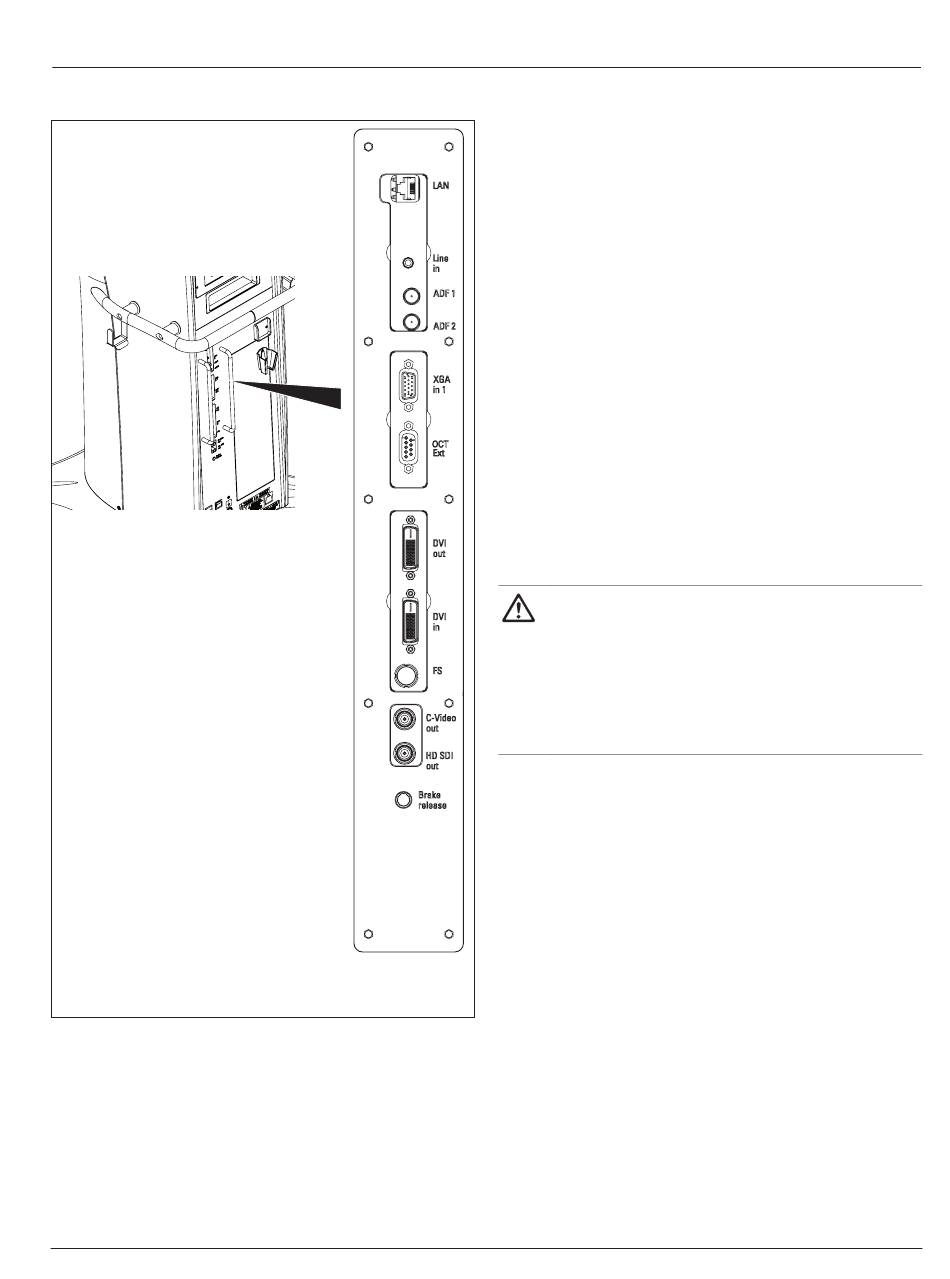

F42 Terminals

LAN*
Line In**
ADF 1/2
XGA in 1***
OCT ext.***
DVI Out
DVI in***
FS
C-VIDEO out*** to connect external monitor
HD SDI out*** to connect external monitor
Brake release for nurse switch only
* may not be used during surgery
** note the warning below
*** connect medical equipment only
WARNING
Risk of human errors due to loud disturbing noises during
surgery!
X
X
PROVEO 8 / Ref. 10 733 910 / Version 02
to connect to Dicom
for external music player/mobile phone
Additional Function
to connect an external video source (for optional
DI C800)
to connect external OCT devices
to connect an external monitor
external input for stand monitor
for second wireless footswitch only (footswitch 2)
Don't plug/unplug external devices at the "Line In" input
during surgery.
Make sure that the volume level on audio device is set to
the minimum before connecting to the "Line In" input.
Controls
21
