Installation（Wired）

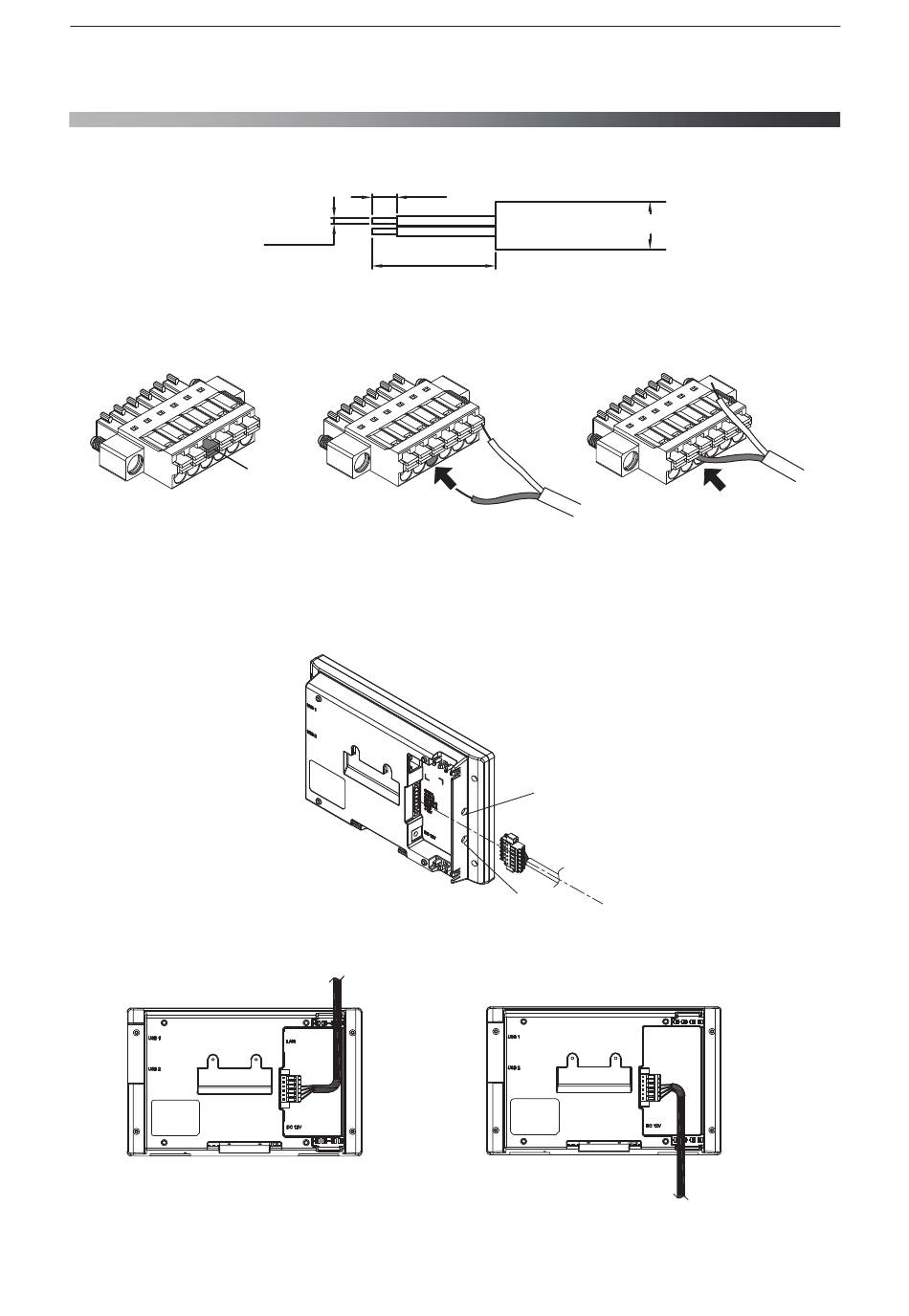

2.7.Setting Power Monitor and Cable
・ Process the cable before use.
8mm
Φ5~6
Φ0.6~0.8
Cable
40mm
・ Creating 6-pin connectors
Hold down the enclosed 6-pin connector ①, and insert the cable.
①
When the connectors are complete, connect to the main unit.
・ Connecting the main unit and the 6-pin connectors
（１） Insert the 6-pin connector into the main unit.
Screw hole
Screw hole
（２） Pass a screwdriver through the screw hole, and tighten the two screws for the 6-pin connector.
■ Over-wiring ■ Under-wiring
（３） When all the wiring is complete, install the power monitor in its installation site.
31
