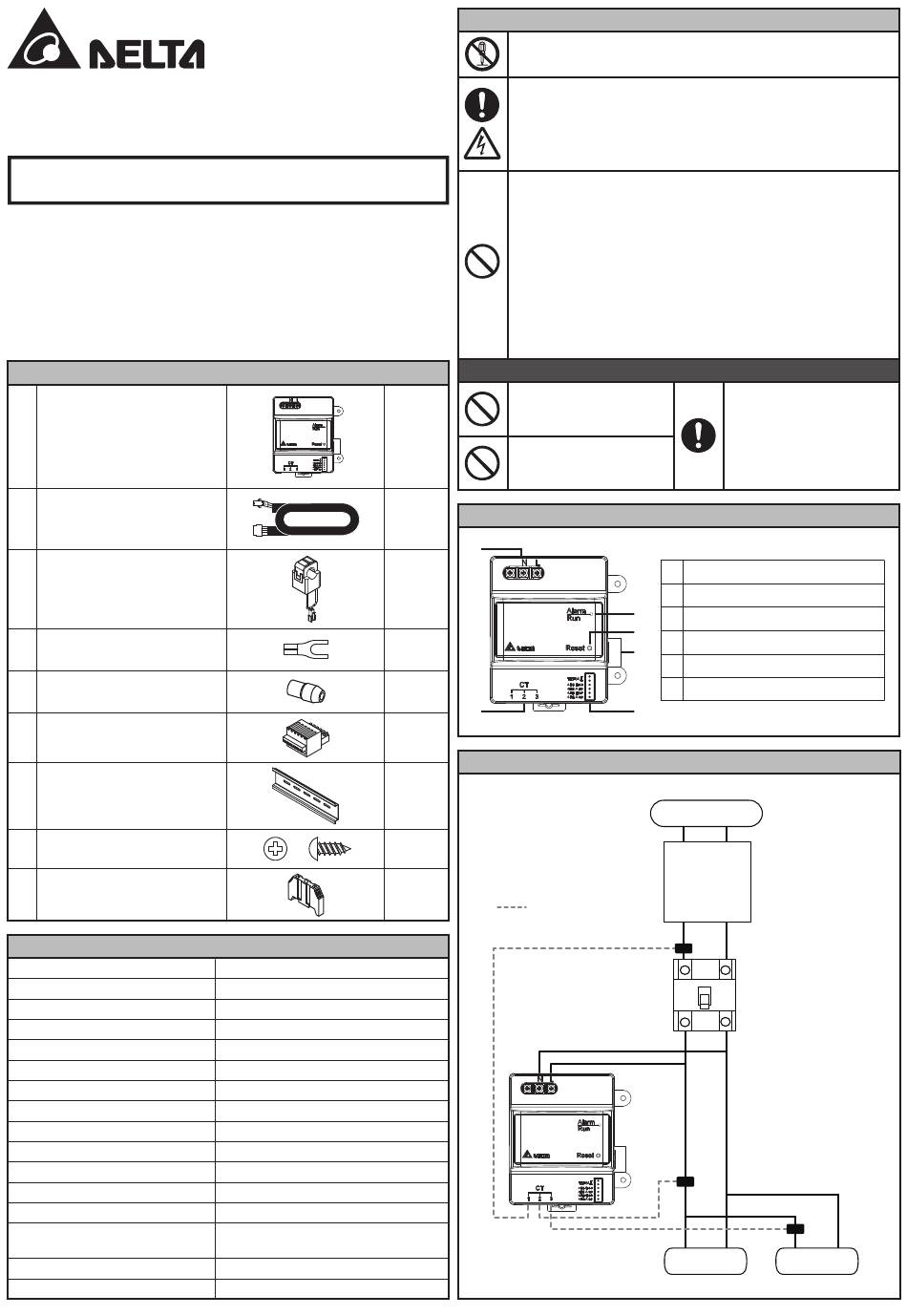

Delta PPM P1_120 Instruction Manual

PPM P1_120
Power meter Installation manual
For safe installation and use, please observe the following
notes and refer to the latest version of the installation manual.
◆ Please refer to the installation manual for relevant information prior to
commencement of work.
◆ If you encounter any difficulties during installation, please contact Delta for support.
◆ Please take note of all safety relevant notes included in this manual and refer to
your local electrical safety guidelines.
◆ Accessories included in the package must be used during installation. If you intend
to use other components please refer to the information provided in this manual.
◆ Must use max rated 32A/2-pole circuit breaker, tripping characteristic Type B.
◆ Maximum sensing current of supplied CT sensor is 120A.
Scope of Delivery
Power meter
1
(Model no: PPM P1_120)
2
CT wire (10M)
CT (Current Transformer)
3
(max sensing current 120A)
4
AC terminal
5
AC terminal cover
6
RS-485 connector
7
DIN Rail
8
DIN Rail Screw (PH2)
9
DIN Rail Stopper
Technical Data
Communication
Input voltage range
Nominal voltage
Frequency
Self - consumption
With Data Collector - consumption
Current transducer
Sensing aperture dimension
Torque for screw terminal
Certificate
Weight (without current transformer)
Dimensions (W / H / D)
Ambient temperature in operation
Ambient temperature during
transport / storage
Operating humidity
Storage humidity
RS-485
85 Vac - 264 Vac
230 Vac
50Hz / 60Hz ± 5%
2 W
7 W
120 A (standard), 300 A (optional)
Φ15.0 mm
0.98 Nm
EN61010-1, CE Compliance, EN61326
170 g
72 mm x 90 mm x 55 mm
- 20°C to 60°C
- 30°C to 70°C
30% to 85% (non-condensing)
30% to 85% (non-condensing)
Do not open this product or insert tools due to shock and fire hazard
which may cause injury.
When installing this product you must adhere to the following instructions:
● The product is intended to be installed and operated by qualified
personnel or service personnel only.
● Do not power up the device before installation is complete.
● All circuit breakers must be in the OFF position before commencing
installation.
Unsuitable installation locations which will void the product warranty:
● Do not install in direct sunlight.
● Do not expose to high humidity.
● Install in a safe place where it is inaccessible for children.
● Do not install in poorly ventilated area.
● Do not expose to water vapor, oil vapor, smoke, dust, salt, corrosive
substances, explosive / flammable GAS, chemicals.
● Do not install above 1000m MSL.
● Do not expose to extreme temperature fluctuation.
● Do not expose to high levels of noise, electrical noise.
● Do not expose to vibration.
● Not suitable for installation in medical equipment, communication
equipment, marine, automotive.
Do not work on electrical
installation when standing on
wet ground.
1 PC
Power meter is a precision
electronics.
Please handle with care!
1 PC
A
1 PC
3 PCS
3 PCS
B
1 PC
Electrical Connection Applications (DANGER)
1 PC
3 PCS
2 PCS
Connection cable
for current measurement
WARNING !
DANGER !
Do not use product if insulation
of any wire is broken.
Product Description
A Mains voltage connector block
B CT wire connector
D
C Connect with Data Collector
E
D Meter status LED
C
E Reset Button
F RS-485 port & terminal resistor port
F
Utility grid
L
N
Energy meter
of the electric
utility
company
L N
Main Breaker
L N
*option
Loads
*option
Loads
