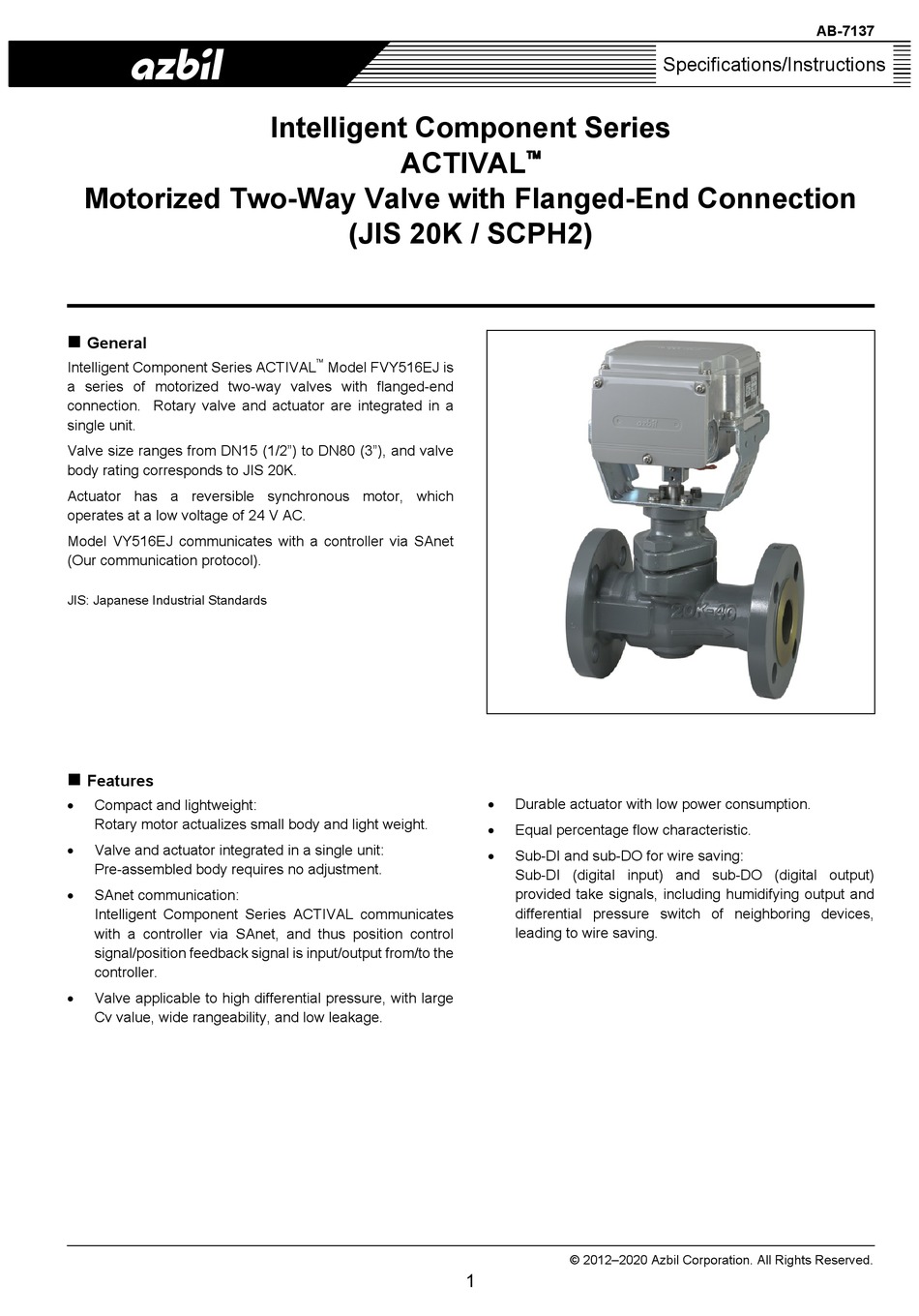

Motorized Two-Way Valve with Flanged-End Connection
General
Intelligent Component Series ACTIVAL
a series of motorized two-way valves with flanged-end
connection. Rotary valve and actuator are integrated in a
single unit.
Valve size ranges from DN15 (1/2") to DN80 (3"), and valve
body rating corresponds to JIS 20K.
Actuator has a reversible synchronous motor, which
operates at a low voltage of 24 V AC.
Model VY516EJ communicates with a controller via SAnet
(Our communication protocol).
JIS: Japanese Industrial Standards
Features
Compact and lightweight:
Rotary motor actualizes small body and light weight.
Valve and actuator integrated in a single unit:
Pre-assembled body requires no adjustment.
SAnet communication:
Intelligent Component Series ACTIVAL communicates
with a controller via SAnet, and thus position control
signal/position feedback signal is input/output from/to the
controller.
Valve applicable to high differential pressure, with large
Cv value, wide rangeability, and low leakage.
Intelligent Component Series
ACTIVAL™
(JIS 20K / SCPH2)
Model FVY516EJ is
Durable actuator with low power consumption.
Equal percentage flow characteristic.
Sub-DI and sub-DO for wire saving:
Sub-DI (digital input) and sub-DO (digital output)
provided take signals, including humidifying output and
differential pressure switch of neighboring devices,
leading to wire saving.
© 2012–2020 Azbil Corporation. All Rights Reserved.
1
AB-7137
Specifications/Instructions
