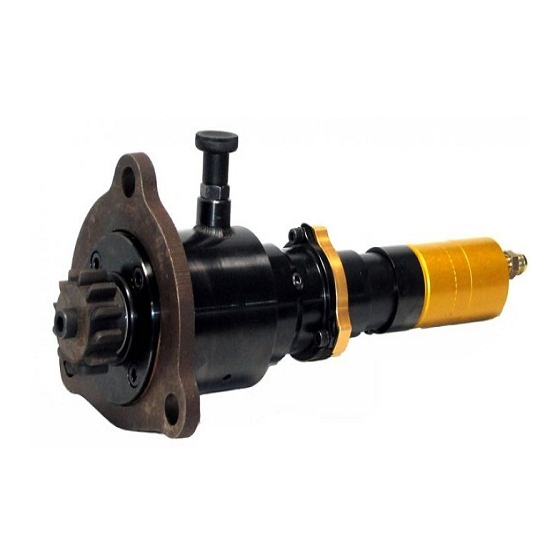

- Page 1 45526670 Edition 1 May 2007 Barring Motor B006 Series Maintenance Information Save These Instructions...
- Page 2 WARNING Always wear eye protection when operating or performing maintenance on this Barring Motor. Always turn off the air supply and disconnect the air supply hose before installing, removing or adjusting any accessory on this Barring Motor or before performing any maintenance on this Barring Motor. Note: When reading the instructions, refer to exploded diagrams in parts Information Manuals when applicable (see under Related Documentation for form numbers).
- Page 3 13. Using care to prevent unnecessary distortion, pry the Spindle NOTICE Bearing Retainer (61) from the wall of the Auxiliary Gear Case and slide out the Spindle (65) and the assembled components. If the Spindle is removed, the entire gear train must be 14.
-
Page 4: Troubleshooting Guide
16. Place the two Front Rotor Bearing Spring Washers (39) inside the Install the Gear Head Bearing (55) in the recess in the Gear Case Front Rotor Bearing Housing and against the Front Rotor Bearing Adapter. Retainer. Install one Gear Head Planet Gear (58), one Planet Gear 17. -
Page 5: Related Documentation
Product Parts Information The use of other than genuine Ingersoll Rand replacement parts may result in decreased barring motor performance and increased maintenance, and may invalidate all warranties. Repairs should be made only by authorized trained personnel. Consult your nearest Ingersoll Rand Authorized Servicenter. - Page 6 Notes:...
