involight Commander ScanControl Manual page 21

15 / BLACKOUT / button
16 / MIDI / REC / button
17 Status LED / ASSIGN /
18 / AUTO / DEL / button
19 Key group / CHASE /
20 Slider / SPEED /
21 Slider / FADE TIME /
22 / FINE / button
23 Control LED / REVERSE /
24 PAN / TILT setting wheel
25 / MODE / button
26 / OVERRIDE / button
27 / USB DISK / button
28 Status LED / ERROR /
29 Status LED / WORK /

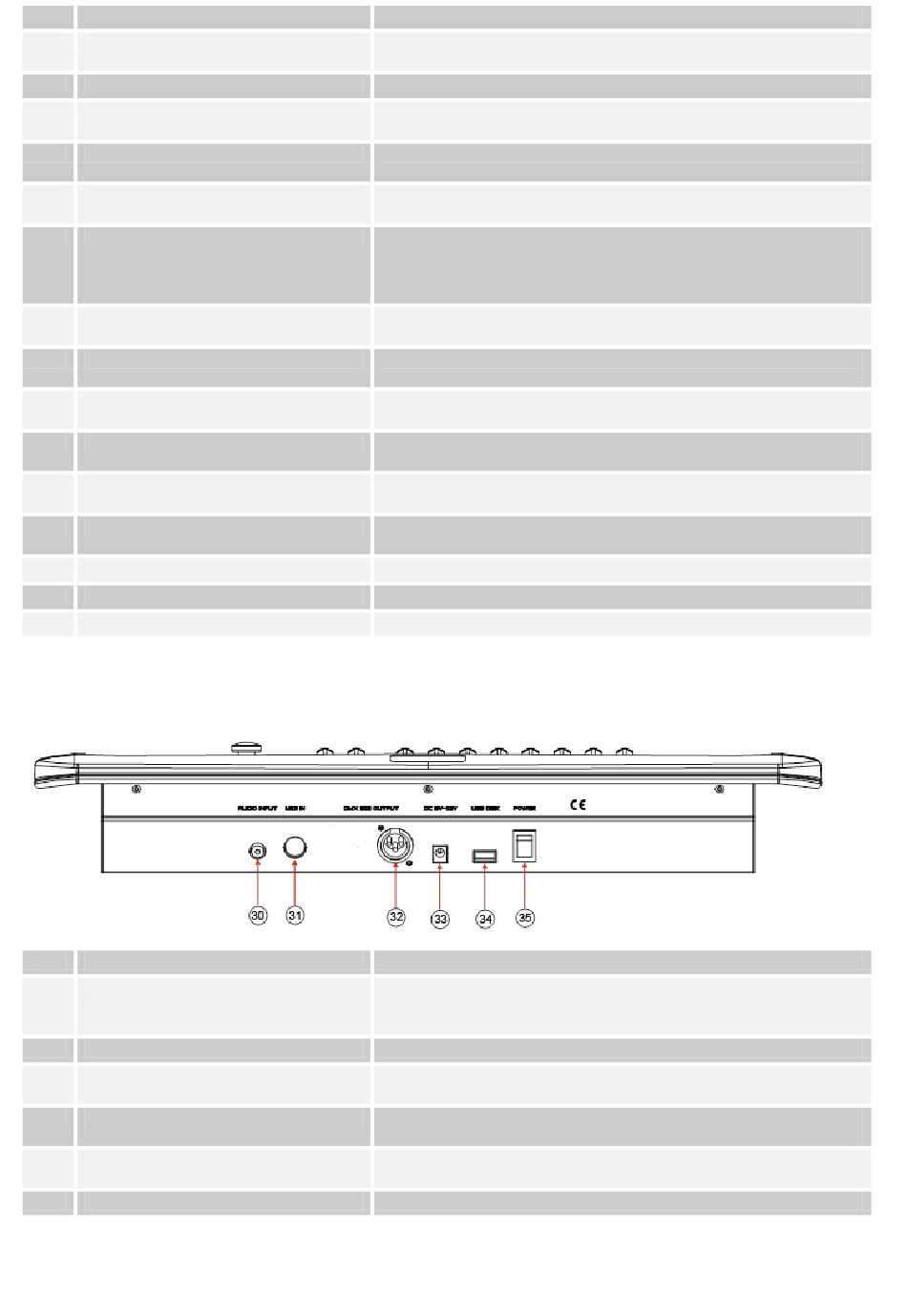

Illustration 2:
Rear view
Pos. Controls
30 Audio input
31 MIDI input
32 DMX512 output
33 Mains connection socket
34 USB connection
35 Power switch
the fade time between two
Scenes during the time- or music-controlled sequence of lighting
scenes from a memory bank or a running light
sequence and for programming functions.
Switches all control channels to zero. The LED flashes in this
state.
Store individual scenes or chase sequences and activate MIDI
control.
Status LEDs for the assignment (ASSIGN) of the channels for
motion control of a device.
Activation of the time-controlled sequence mode of lighting
scenes of a memory bank or a chaser sequence and, depending
on the operating mode, for deleting lighting scenes or chaser
sequences.
Keys 1-6 to call up a program (chase sequences programmed by
the user).
Setting the running speed for the time-controlled running of
lighting scenes or a running light sequence.
for setting the fade duration when calling up lighting scenes or a
chaser sequence.
Switching the resolution of the PAN and TILT movements. The
control LED lights up when fine resolution is activated.
Status LEDs for the inversion (REVERSE) of the channels for
motion control of a device.
Control of pan and tilt movement and for programming functions.
Also called "jog wheel".
For programming functions.
Manual control of individual channels.
Function key / import data from file.
Function
RCA socket for connection to the output of a sound source for
music control of programs. When the socket is connected, the
console's internal microphone is switched off.
5-pin DIN socket for MIDI control of the controller.
3-pin XLR socket for connection to the DMX input of the first
device.
DC INPUT socket for power supply via the included power
supply.
For plugging in a USB storage medium for data backup and data
import.
Switches the device on and off.
