Always make sure that no liquid can get into the device!
If damage occurs as a result of non-observance of the intended use and the instructions contained in this manual,
the guarantee will expire and the result may be a short circuit, fire or electric shock and the device (s) may fall.
Under no circumstances should you open the housing of the device or adapter. Unauthorized changes to the
device are prohibited for security reasons.
The manufacturer is not liable for damage caused by improper installation and inadequate securing!
Part 2: Functions & Operation:

2.1 Overview of buttons and controllers:

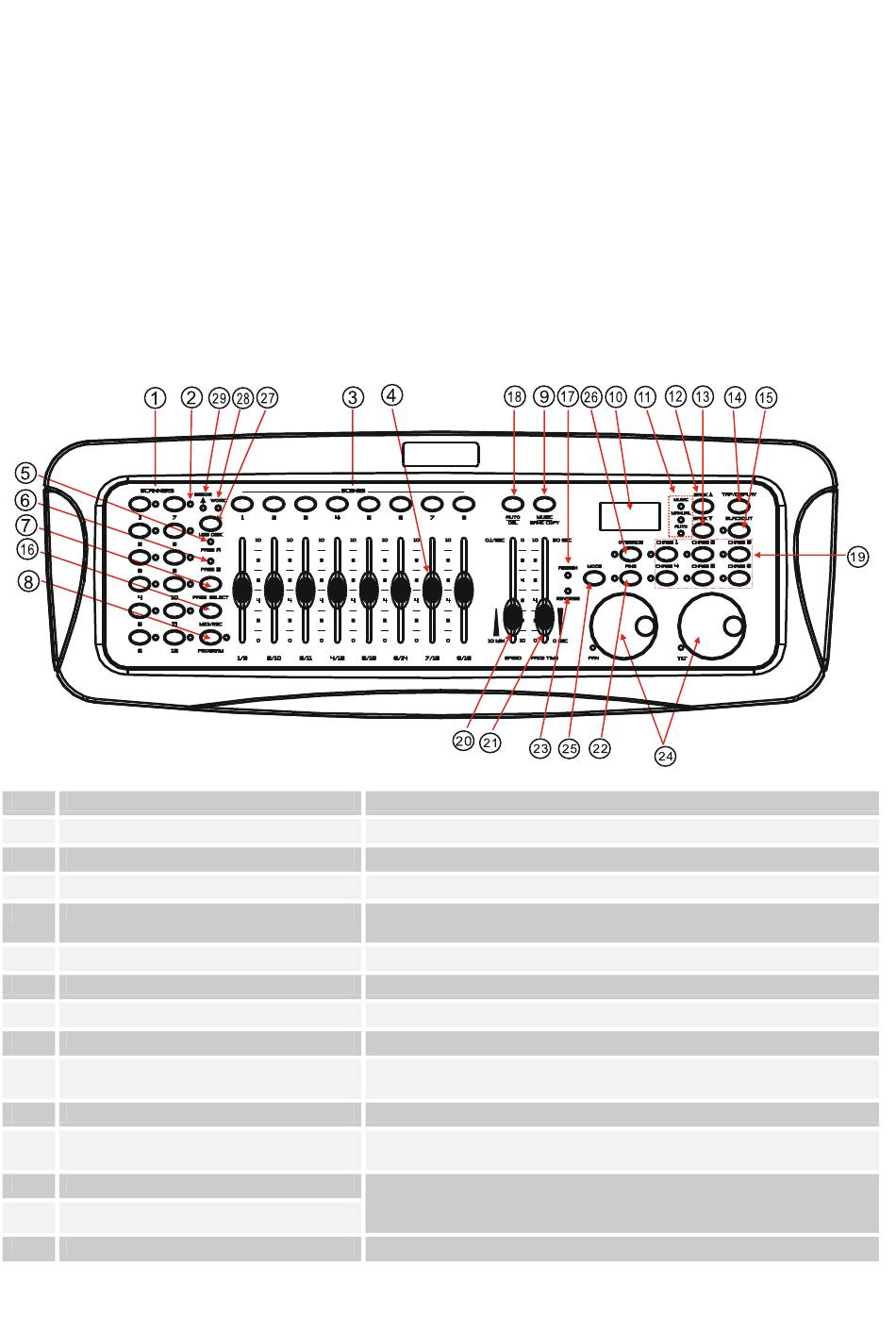

Illustration 1.
Controller surface:
Pos. Controls
1 Button group / FIXTURES /
2 The control LEDs
3 Key group / SCENES /
4 Slider
5 Control LED for / PAGE A /
6 Control LED for / PAGE B /
7 / PAGE / button
8 / PROGRAM / button
9 / MUSIC BANK / COPY / button
10 LCD display
11 Control LEDs / MUSIC /, / MANUAL /
and / AUTO /
/ BANK ▲ / button
12
/ BANK ▼ / button
13
14 / TAP / DISPLAY / button
Function
Keys 1-12 for selecting and deselecting devices.
Show which devices are selected.
Buttons 1-8 for switching lighting scenes on and off.
Setting the DMX values for the selected devices. The current
DMX value is shown on the display.
Indicate that channel group A (1-8) is selected.
Indicate that channel group B (9-16) is selected.
Toggle the slider between the two channel
groups 1-8 and 9-16.
Switching the programming mode on and off. The control LED
flashes when the function is activated.
Show the selected mode when lighting scenes of a memory bank
or a chaser sequence are running.
Switch between memory banks 1-20 and for programming
functions.
Switch the display between percentage and decimal value to set
