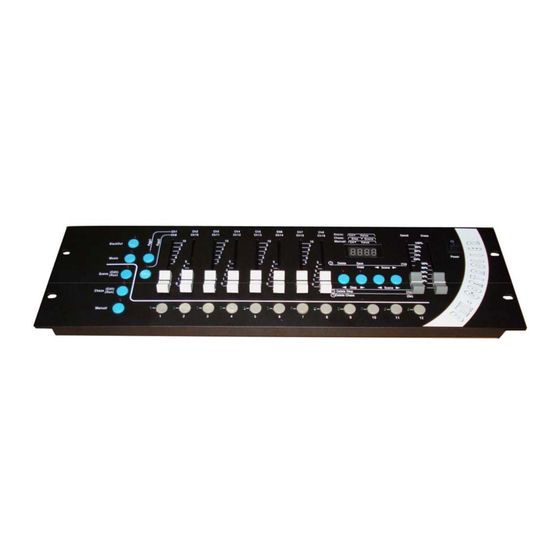

- Page 1 DMX512- controller User manual VER:2.0 PLEASE READ USER MANUAL...
-
Page 2: Table Of Contents
==============================Catalogue=============================== Technical specification---------------------------------------------------------------------------------------3 Cautions of safety---------------------------------------------------------------------------------------------3 Installation of controller-------------------------------------------------------------------------------------3 Connecting scanner------------------------------------------------------------------------------------------4 DMX512 address distribution---------------------------------------------------------------------------4 Digit display instruction-------------------------------------------------------------------------------------5 1）running scene and manual operation display ---------------------------------------------------5 2）edit scene operation display ------------------------------------------------------------------------5 3）edit and running cross chase operation display ------------------------------------------------5 Description rules----------------------------------------------------------------------------------------------5 Rear instruction-----------------------------------------------------------------------------------------------6 Panel instruction----------------------------------------------------------------------------------------------6 The number keys (1-12) in the scene / procedures / manual control mode of the corresponding menu ----------------------------------------------------------------------------------------7... -
Page 3: Technical Specification
192,following the universal DMX 512 protocol，can control 12 16-channel scanners or other equipment,chase program and manual control of scanners can be performed at the same time .the functions are compact it’s convenient and flexible operation made it handled very easily.192 is suitable for different ballroom ,taproom and small show. -
Page 4: Connecting Scanner
embedded in operation board or directly installed in 19’’ shelf or cabinet. The power of 192 scanner controller has steady voltage output in so wide range of power supply voltage that it is adopt to the power supply of all the world .beafore the power supply is connected ,.Please check whether the voltage is in normal range of 192 When the fuse needs to be replaced,please use the fuse with with the current capacity signed on the rear of the 192. -
Page 5: Digit Display Instruction
Digit display instruction Running scene and manual operation display ： 1） Channel NO separator channel 1) Channel NO——display the channel of current fader 0-f correspond1-16 channel 。 2) Channel ——display the current input channel value（range：000-255） 。 3) Separator ——used in distincting different content。 2）editing scene operation display ：... -
Page 6: Rear Instruction
3) in the Schematic diagram of the operation，Circle with the number of steps means a one-to-one relationship in explaining the steps and the schematic diagram of the serial number of the serial number for Example ： “①”or “1）”；in “①”and“1）”are Consistent，both mean first step or No. 1 Rear instruction fuse DMX signal output port... -
Page 7: The Number Keys (1-12) In The Scene / Procedures / Manual Control Mode Of The Corresponding Menu
(Edit the walking light procedure) Step Remove Programs / Remove Programs / decreasing step-by-step selection procedure。 11) Step key is called as B key， （Edit scenes) scene copy / preserve the scene; (Editor lights go procedure) incremental step-by-step selection procedure。 Scenekey is called as C key，... -
Page 8: I)The Schematic Diagram Of The Edit Scene Panel
1-2 run-time for the process step-by-step shows the current output, the first 2-4 bit digital control for step-by-step procedures to preserve the scene in the show its。 ③ Manual control with digital display that's just - the first for a digital control channel number CH fader shows that the first 2-4 fader-bit digital control input values to show。... -
Page 9: B) Save Scene Function
tube will display the number of the scenes)； 4） press B key To make light out on the scene to complete the replication process, the latter scenario will be chosen before the contents of a scene instead of。 B) Save the scene features (Note: pressing time is greater than 1 second): Press the B button for more than 1 second, the indicator light on the current editorial content is saved to the scene of the Taiwan-controlled memory. -
Page 10: 2） Introduction Of Editing Scene
： The definition of the process steps of the edit SCEN ① Press SCENE button in excess of 1 second, the indicator light glittering, enter the edit scene state. ② Use the button to choose the scene serial number; Scene& Scene If want to edit the current scene, then run the step 3;... -
Page 11: Running Scene
②selecting the number that you want： use Num Lock 1-12toselect the chase number （if the program is empty ,digit displays“00.--”. if step zero and the number of the saved scene in this step will be displayed ,such as “00,08”） If you want to delete the current chase, execute the ⑤step ③select program step ：channels Step and Step keys... -
Page 12: Running Chase
Running chase ： the schematic diagram of the running chase panel 1） 2)introduction of running the chase ①pess Chase to light the indicator light ②select the chase number you want: use Num Lock 1-12 to select the number ③adjusting the settling-time :adjust the clipper Speedto adjust the setting-time of the chase steps .The top means the shortest time and the bottom the longest ④adjusting the shading-time :adjust the clipperCross to adjust the shading-time of the chase step,and .The top means non-shading and the more declined the longer shading-time... -
Page 13: Manual Operation
manual operation ： the schematic diagram of the manual operation panel 1） The definition of the process steps of the manual operation : 2） ① Entering the manual state: press the MANUAL button, make the indicator light constantly shinning, enter manual operation state. ②...
