TECNOTION
3.2. Requirements for the mounting surfaces
DOCUMENT NR 4022.363.4197.1
1. Mount the magnet yokes to the mounting surface of the machine.
2. Mount the coil unit to the involved machine parts
3. Connect the wiring to the coil unit.
From a magnetical point of view the installation order of the mechanics
is not critical, because no attraction is present between the coil unit and
magnet yokes.
The de-installation order is:
1. Disconnect the wiring from the coil unit.
2. Dismount the coil unit from the machine parts.
3. Dismount the magnet yokes from the machine's mounting surface
Before mounting the Linear Motor, special attention must be paid tot
the mounting surface of the motor.

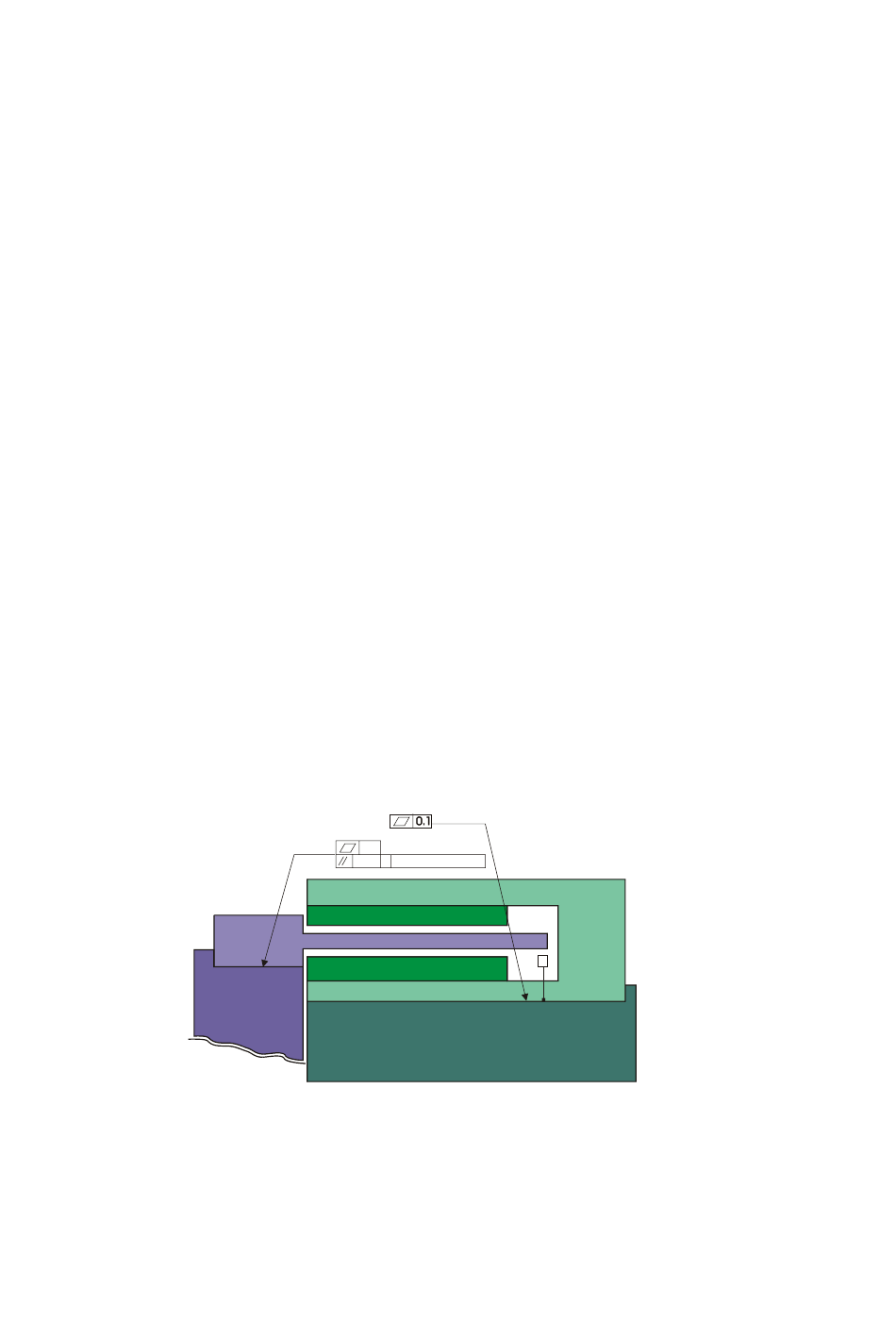

Figure 7: Flatness and parallelism of mounting surfaces, schematically
The mounting surfaces of both magnet yokes and coil units have to be
flat to prevent them from being submitted to bending forces.
INSTALLING IRONLESS LINEAR MOTORS
0.1
0.05 A (paperplane only)
13
A
INSTALLATION
