HKS 70018-AT005 Instructions

This manual assumes that you have and know how to use the tools and equipment necessary to safely
perform service operations on your vehicle. This manual assumes that you are familiar with typical
automotive systems and basic service and repair procedures. Do not attempt to carry out the operations
shown in this manual unless these assumptions are correct. Always have access to a factory service
manual. To avoid injury, follow the safety precautions contained in the factory repair manual.
SAFETY PRECAUTIONS
To prevent electrical damage/burns/fires, always:
- Disconnect the negative terminal of the battery before beginning installation.
- When disconnecting wires/connectors, take extra care to avoid breaking/snapping the wires.
Do not misuse this product.
- Misuse of this product may lead to engine damage.
- Misuse of this product may lead to loss of original function.
Prior to beginning installation, check to make sure that the engine bay temperature has cooled to
approximately 40℃/104°F
- Failure to let the engine cool down properly can lead to severe burns.
Insert clean rags into open piping to prevent waste from entering the pipes.
- If neglected, waste in the piping can lead to engine damage.
- Check to make sure that all of the parts listed in the Parts List are included in the kit.
Reference the factory service manual for the vehicle when removing factory parts.
-
Be careful when handling this product; avoid dropping or subjecting it to excessive impacts. Failure
-
to do so may result in product damage or improper installation.
Use the proper tools when tightening nuts and bolts. If over tightened, the bolts will become
-
damaged.
- Keep the removed factory parts in a safe place for ease of re-installation at a later date (if necessary).
Replace the air filter element at regular intervals:
(Recommended) Replace every 10,000Km/6,200miles or every 12 months. Replacement filter
elements are sold separately.
※ Do not wash the filter elements as the filtration properties will be degraded.
※ However, there are certain conditions where, depending on dirt buildup, the filter may need to be
replaced earlier than the above recommended intervals .
If the vehicle and the product are not maintained properly as mentioned above, the product cannot
perform properly, and the airflow meter sensor may not be able to detect the intake air volume
accurately; it may lead to engine damage or bad conditions.

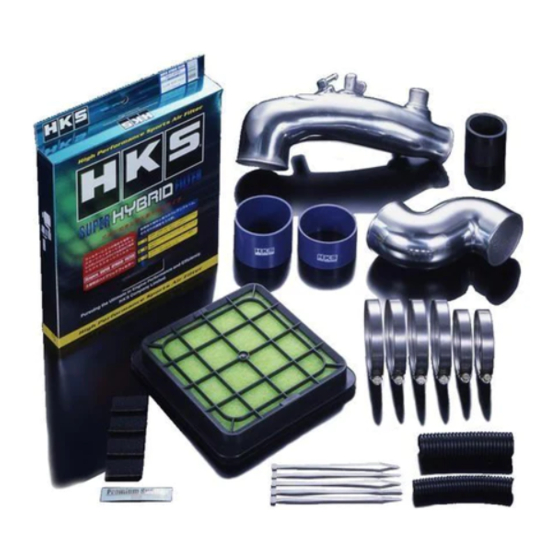

Premium Suction Intake Kit
70018-AT005
TOYOTA PRIUS
Model: DAA-ZVW30 Engine Type: 2ZR-FXE
Model Year: 2009/06-
Ver. 20100810
NOTICE
WARNING
CAUTION
CAUTION
1
E04521-T29050-00
