HKS 71002-AM001 Installation Manual

HKS 71002-AM001 Installation Manual

Super sqv return set

Advertisement

This item is exclusively for P/N 71004-AM015, 71007-AM015 (SSQV for Mitsubishi Lancer Evolution X).

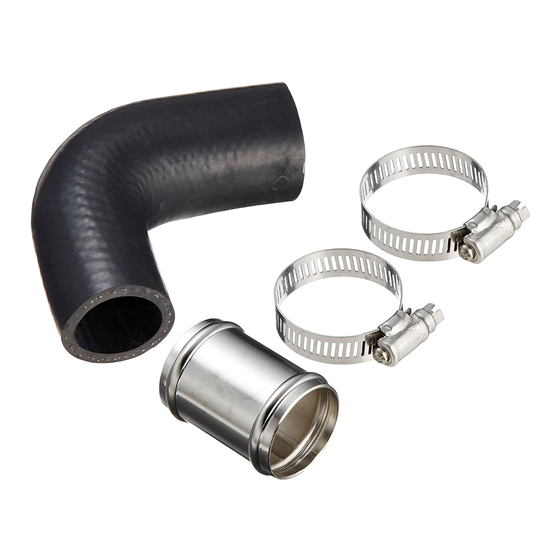

Parts List

Return Hose
Hose Band #20 ・・・・・・・・・・・・・・・・ 1
Installation Manual (Japanese) ・・ 1
Published in October 15, 2009 by HKS Co., Ltd. (Unauthorized reproduction is strictly prohibited.)

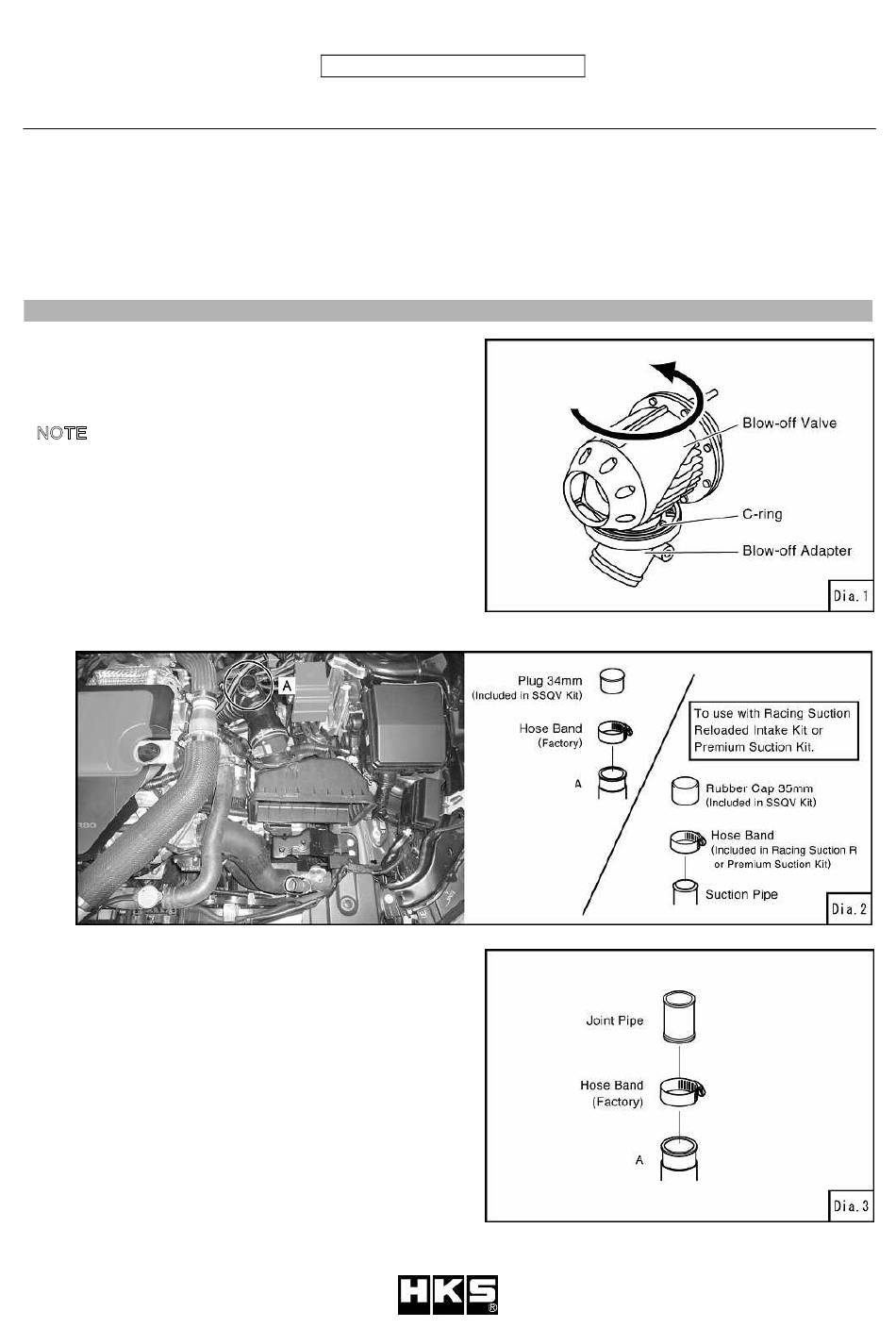

Installation of SSQV Return Kit

1.
Loosen the C-ring of the SSQV assembly.
Rotate the blow-off valve on the blow-off adapter
180°.
(Diagram Dia.1, Dia.4)
The C-ring must be loosened before rotating the
valve.
Failure to do so may damage the valve.
2.
Install the Recirculation Fitting to the SSQV
assembly referring to the SSQV installation
manual.
3.
Remove the SSQV's plug and rubber cap that
were installed to "A" when installing the SSQV kit.
(Diagram Dia.2)
4.
If the factory suction hose is used, install the joint
pipe provided with this kit to "A" using the factory
hose band.
(Diagram Dia.2, Dia.3)
Super SQV Return Set
Part Number: 71002-AM001
・・・・・・・・・・・・・・・・・ 1
Manual Number: E04533-M40020-00
Hose Band #16 ・・・・・・・・・・・・ 1
Joint Pipe ・・・・・・・・・・・・・・・・・ 1
Installation Manual (English) ・・ 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 71002-AM001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HKS 71002-AM001

  • Page 1 Installation Manual (English) ・・ 1 ※ Manual Number: E04533-M40020-00 Published in October 15, 2009 by HKS Co., Ltd. (Unauthorized reproduction is strictly prohibited.) Installation of SSQV Return Kit Loosen the C-ring of the SSQV assembly. Rotate the blow-off valve on the blow-off adapter 180°.
  • Page 2 Install the provided return hose. (Diagram Dia.4, Dia.6) If the return hose does not fit properly, it may be necessary to cut the 35mm hose end to the appropriate length.

This manual is also suitable for:

71004-am01571007-am015
