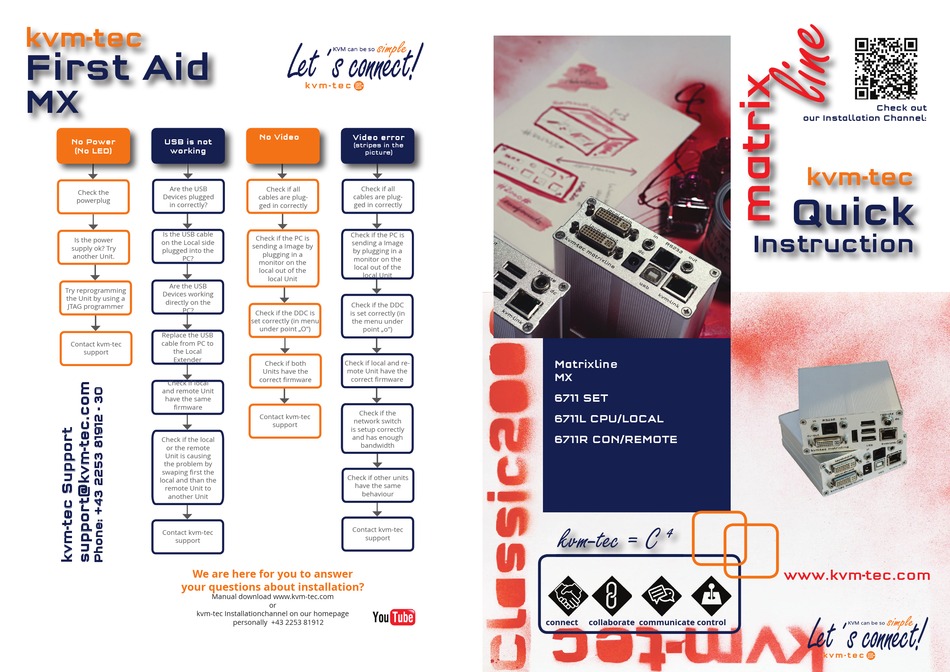

KVM-TEC Matrixline MX Quick Instruction

kvm-tec
First Aid
MX
No Power USB is not
(No LED) working
Are the USB
Check the
Devices plugged
powerplug
in correctly?
Is the USB cable
Is the power
on the Local side
supply ok? Try
plugged into the
another Unit.
PC?
Are the USB
Try reprogramming
Devices working
the Unit by using a
directly on the
JTAG programmer
PC?
Replace the USB
cable from PC to
Contact kvm-tec
the Local
support
Extender
Check if local
and remote Unit
have the same
fi rmware
Check if the local
or the remote
Unit is causing
the problem by
swaping fi rst the
local and than the
remote Unit to
another Unit
Contact kvm-tec
support
We are here for you to answer
your questions about installation?
kvm-tec Installationchannel on our homepage
No Video Video error
(stripes in the
picture)
Check if all
Check if all
cables are plug-
cables are plug-
ged in correctly ged in correctly
Check if the PC is
Check if the PC is
sending a Image
sending a Image by
by plugging in a
plugging in a
monitor on the
monitor on the
local out of the
local out of the
local Unit
local Unit
Check if the DDC
Check if the DDC is
is set correctly (in
set correctly (in menu the menu under
under point „O") point „o")
Check if both Check if local and re-
Units have the mote Unit have the
correct fi rmware correct fi rmware
Check if the
Contact kvm-tec
network switch
support
is setup correctly
and has enough
bandwidth
Check if other units
have the same
behaviour
Contact kvm-tec
support
Manual download www.kvm-tec.com
or
personally +43 2253 81912
Matrixline
MX
6711 SET
6711L CPU/LOCAL
6711R CON/REMOTE
kvm-tec = C 4
connect collaborate communicate control
Check out
our Installation Channel:
kvm-tec
Quick
Instruction
www.kvm-tec.com
