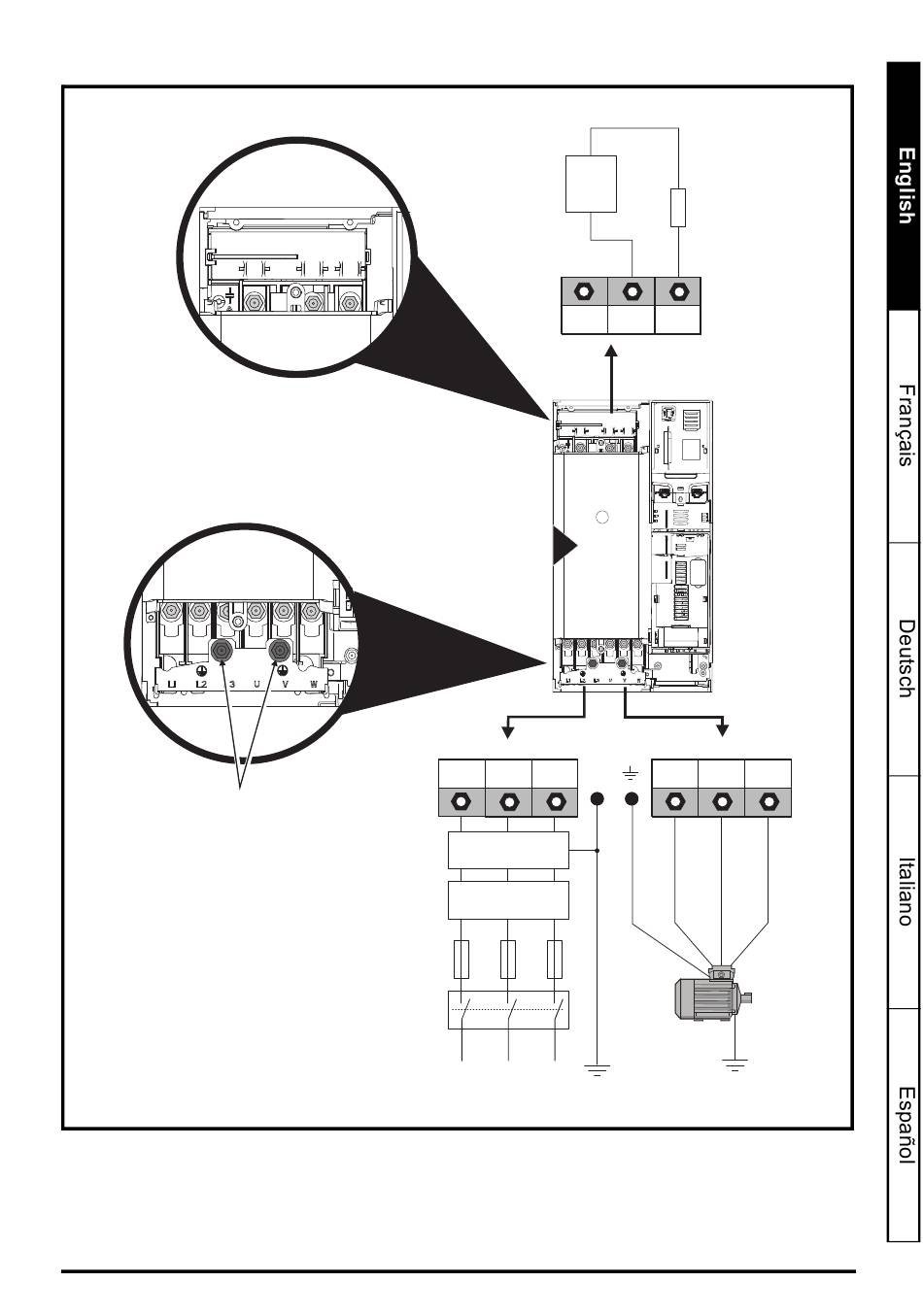

Figure 6-2 Size 6 power and ground connections
Ground connection
studs
On a size 6, the supply and motor ground connections are made using the M6 studs located above
the supply and motor terminals. Refer to Figure 6-2.
Commander C200/C300 Step By Step Guide
Issue Number: 2
DC Connections
(DC and braking)
Thermal
overload
protection
device
DC - DC +
6
AC Connections
L1
L2
L3
PE
Optional EMC
filter
Optional
line reactor
Fuses
L1
L2
L3
Mains
Supply
Supply
Ground
Optional
braking
resistor
BR
Motor Connections
U
V
W
Motor
Optional ground
connection
9
