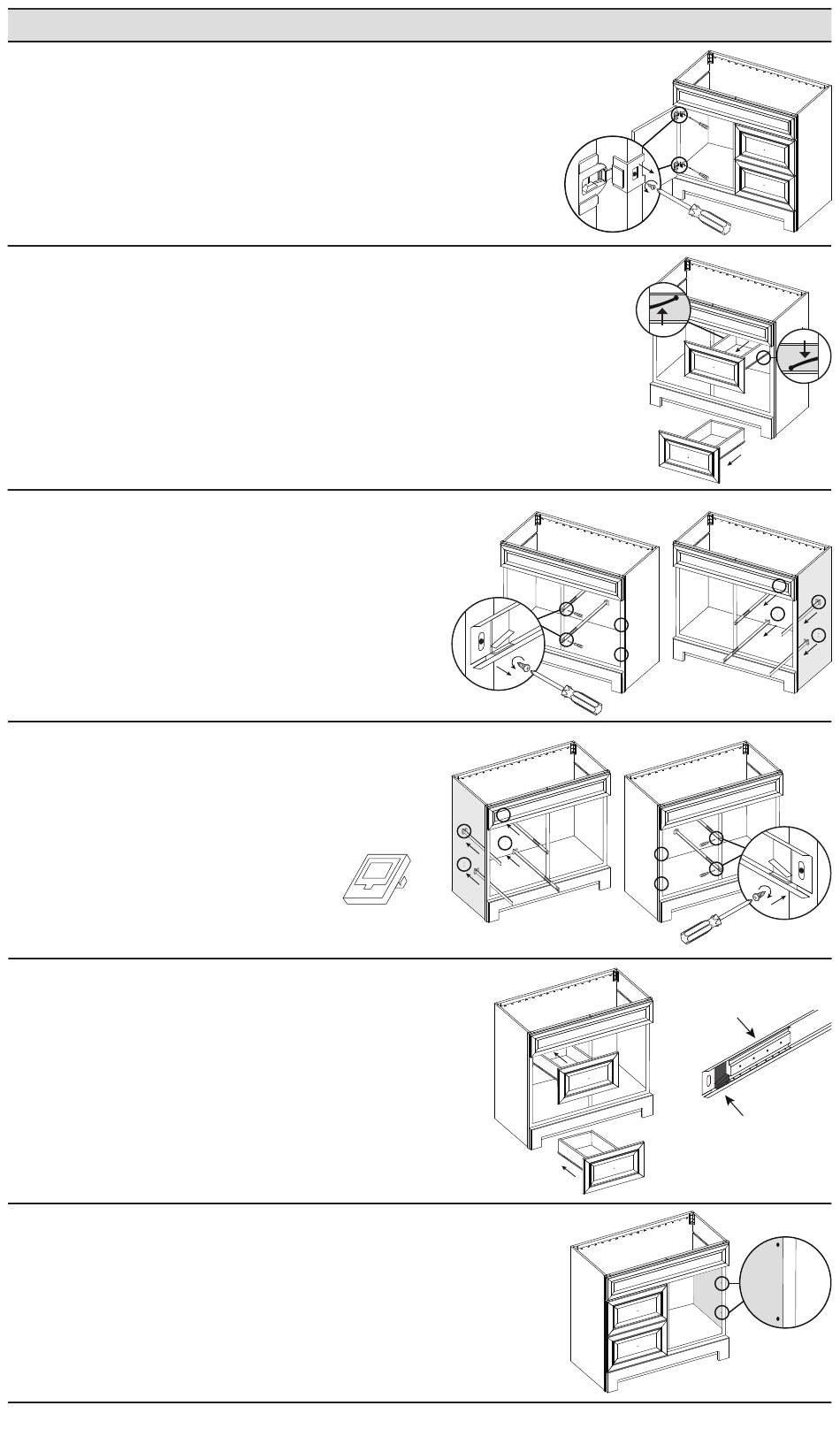

DOOR SWAP INSTRUCTIONS
□ If swapping door and drawer locations, follow the instructions below. If
using standard configuration, go to theInstallation Instructions on page 3.
□ Remove door from frame cabinet by using a #2 Phillips screwdriver to
remove screws holding hinges in place. Save screws for reinstallation
in a later step.
6
REMOVE DRAWERS
□ Remove both drawers by fully extending the drawer, then pushing
the black plastic lever down on the right and up on the left side.
While holding the levers in place, pull the drawer out of the cabinet.
7
REMOVE SCREWS AND GLIDES
□ Using a #2 Phillips screwdriver, remove the screws holding
the glides in place. Save screws for reinstallation in a later
step. Once the glides are free, gently pull them away from
the back panel using a slight rocking motion. Save glides
for later reinstallation.
8
REINSTALL GLIDES
□ Reinstall the glides on the opposite side of the cabinet by
pushing the glide foot into the back panel and installing the
screw into the pre-inserted dowel in the cabinet face frame
using a #2 Phillips screwdriver.
9
ONCE GLIDES ARE RE-INSTALLED:
□ Position roller cage so that it touches the black glide stop in
the front of the drawer glide.
□ Line up drawer box glide with glide stop. Once both sides are
in line with stops, push drawer into cabinet. Once the drawer
is installed, open and close the drawer a few times to allow
the drawer to self-align.
10
INSTALL DOOR
□ Locate pilot holes in the cabinet frame. Position the door
so that the hinge attachment holes are in line with the
pilot holes. Have a helper hold the door in place and install
the hinge by installing the attachment screws into the
pilot hole using a #2 Phillips screwdriver.
Glide Foot
Roller Cage
Black Glide Stop
HOMEDEPOT.COM
Please contact 1-888-774-8062 for further assistance.
